6 CONTROLS 14

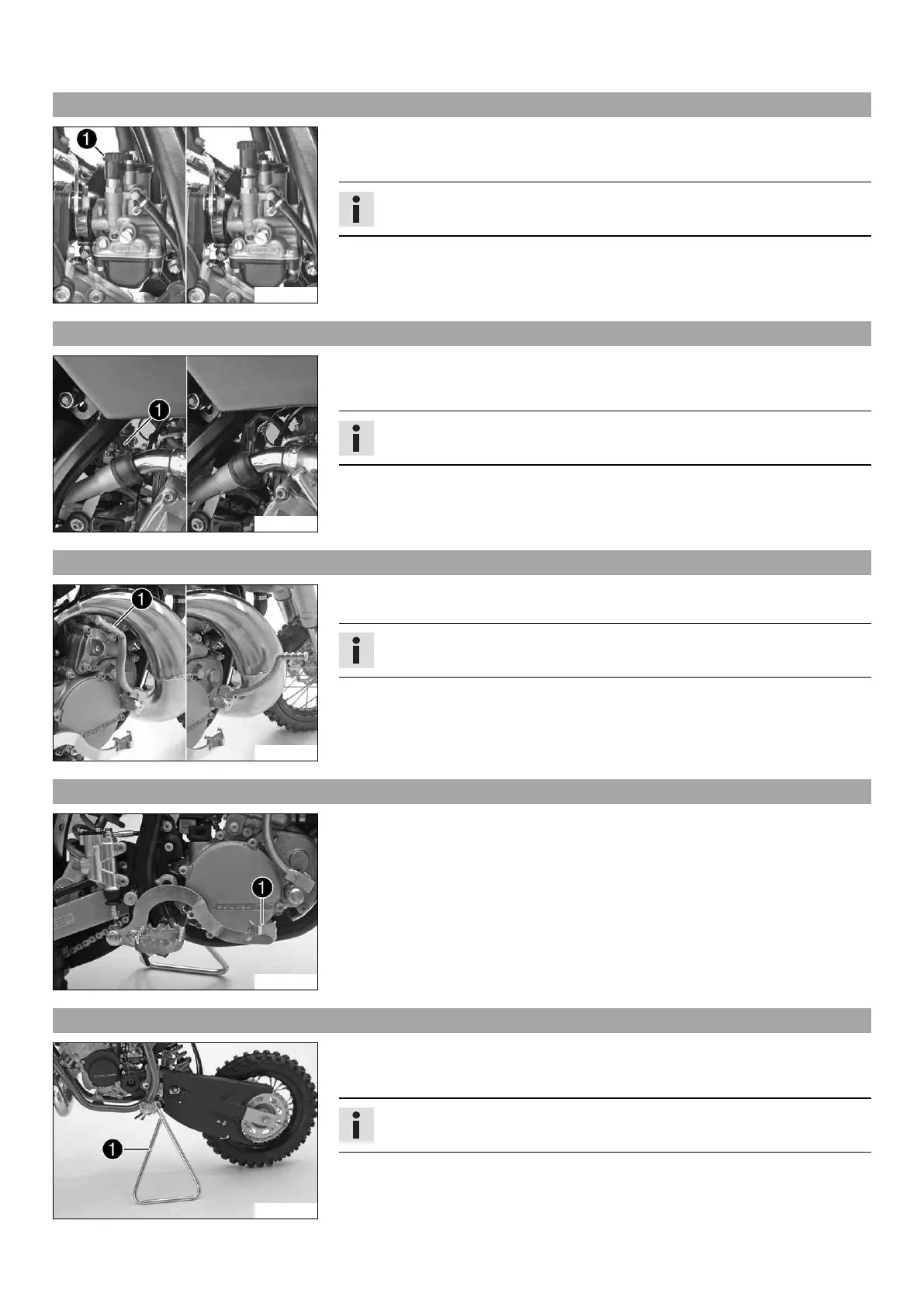

6.9 Choke (50 SX)
601583-10
The choke knob 1 is fitted on the left of the carburetor.
Activating the choke function frees an opening through which the engine can draw
extra fuel. This results in a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated – Choke knob is in upper position. The O-ring is visible.
• Choke function deactivated – Choke knob is in lower position. No O-ring is visible.
6.10 Choke (50 SX Mini)
700519-01
The choke lever 1 is fitted on the right of the carburetor.
Activating the choke function frees an opening through which the engine can draw
extra fuel. This results in a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated – The choke lever is pushed up all the way.
• Choke function deactivated – The choke lever is pushed down all the way.
6.11 Kickstarter
601584-10
The kickstarter 1 is fitted on the right of the engine.
The kickstarter can be swiveled.
Info
Before riding, swing the kickstarter inwards towards the engine.
6.12 Foot brake lever
601587-10
Foot brake lever 1 is located in front of the right footrest.
The foot brake lever is used to activate the rear brake.
6.13 Plug-in stand
101931-10
The fixture for the plug-in stand 1 is located on the frame on the left side of the vehi-
cle.
The plug-in stand is used to park the motorcycle.
Info
Remove the plug-in stand before riding.
