11 SERVICE WORK ON THE CHASSIS 42

401036-01

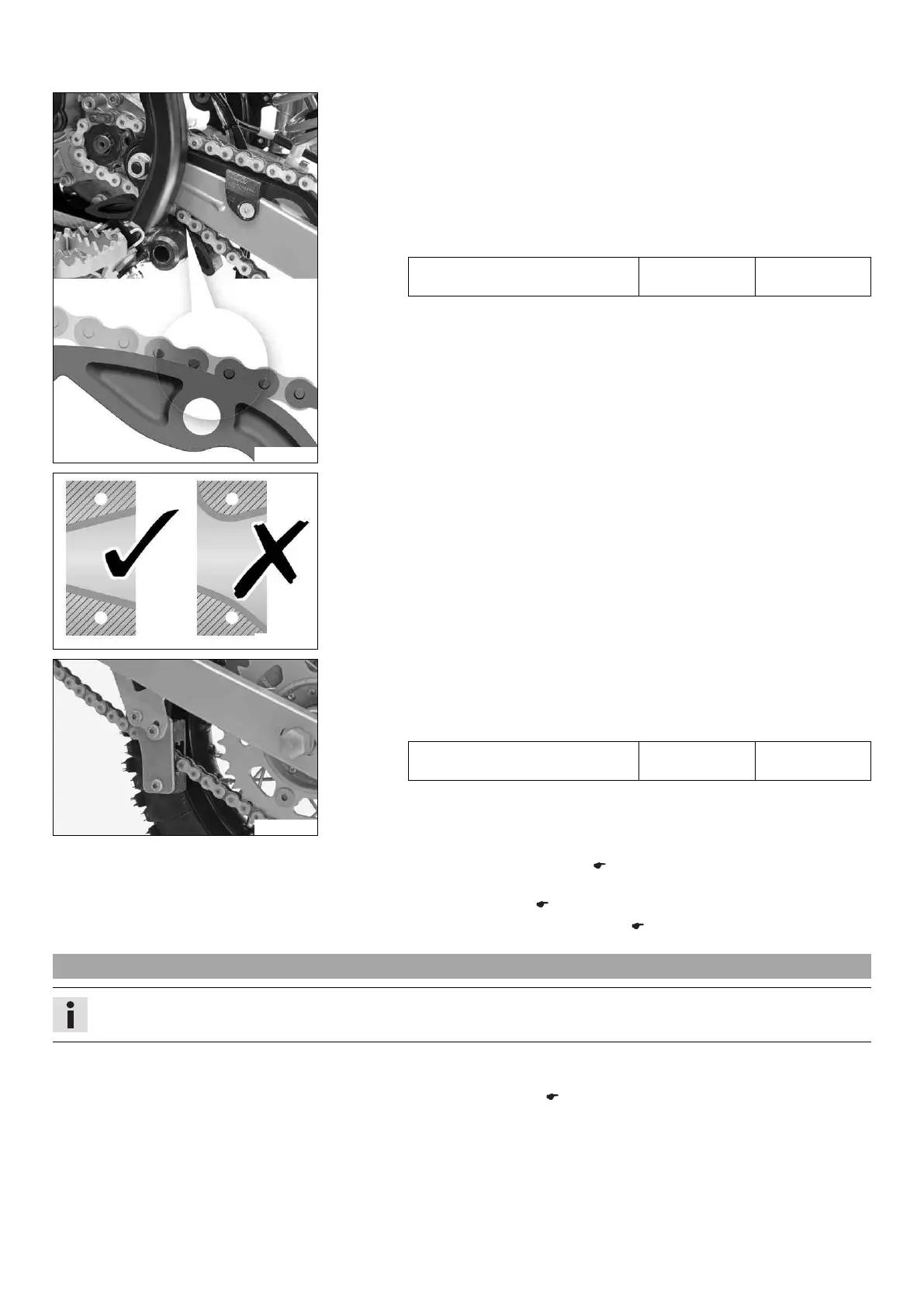

– Check the chain sliding piece for wear.

» If the lower edge of the chain pins is in line with or below the chain sliding

piece:

–

Change the chain sliding piece. x

– Check the chain sliding piece for tightness.

» If the chain sliding piece is loose:

– Tighten the chain sliding piece.

Guideline

Screw, chain sliding piece M8 15 Nm

(11.1 lbf ft)

401034-01

– Check the chain guide for wear.

» If the chain guide is worn down to the top or bottom edge:

–

Change the chain guide. x

101948-01

– Check the chain guide for tightness.

» If the chain guide is loose:

– Tighten the chain guide.

Guideline

Remaining screws, chassis M6 10 Nm

(7.4 lbf ft)

Finishing work

–

Install the engine sprocket cover. x ( p. 38)

(50 SX)

– Install the chain guard. ( p. 38)

– Remove the motorcycle from the lift stand. ( p. 27)

11.36 Adjusting the chain guide x

Info

The size of the chain wheel varies with the number of teeth. The chain guide can be adjusted on small sprockets.

Preparatory work

(50 SX)

– Remove the chain guard. ( p. 37)
