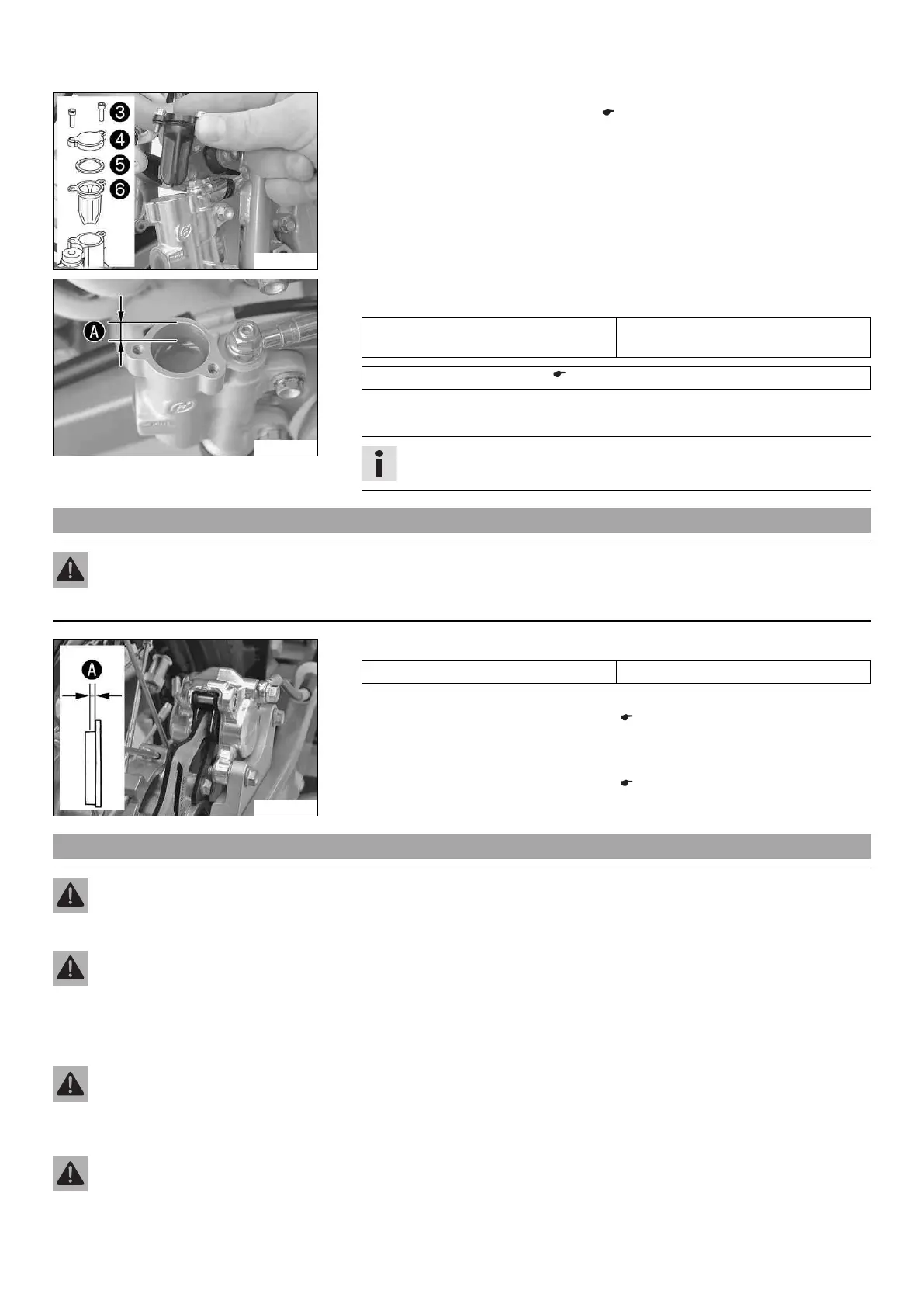

12 BRAKE SYSTEM 52
201175-12
Main work
– Raise the motorcycle with a lift stand. ( p. 27)
– Remove screws 1.
– Take off cover 2 with washer 3 and membrane 4.
201170-10
– Add brake fluid to level A.
Guideline
Dimension A (brake fluid level below
top edge of container)
10 mm (0.39 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 81)
– Position the membrane and the cover with the washer. Mount and tighten the
screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
12.14 Checking the rear brake linings
Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized KTM workshop will be glad to help.)
700491-01
– Check the brake linings for minimum thickness A.
Minimum thickness A ≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
–
Change the rear brake linings. x ( p. 52)
– Check the brake linings for damage and cracking.
» If damage or wear is encountered:
–
Change the rear brake linings. x ( p. 52)
12.15 Changing the rear brake linings x
Warning
Danger of accident Brake system failure.
– Maintenance work and repairs must be carried out professionally. (Your authorized KTM workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will
be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to use of non-approved brake linings.
– Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle no longer corresponds to the condition at delivery, and the warranty is no longer valid.
