KTM 50 SX 2023 User Manual

WORK 3
5

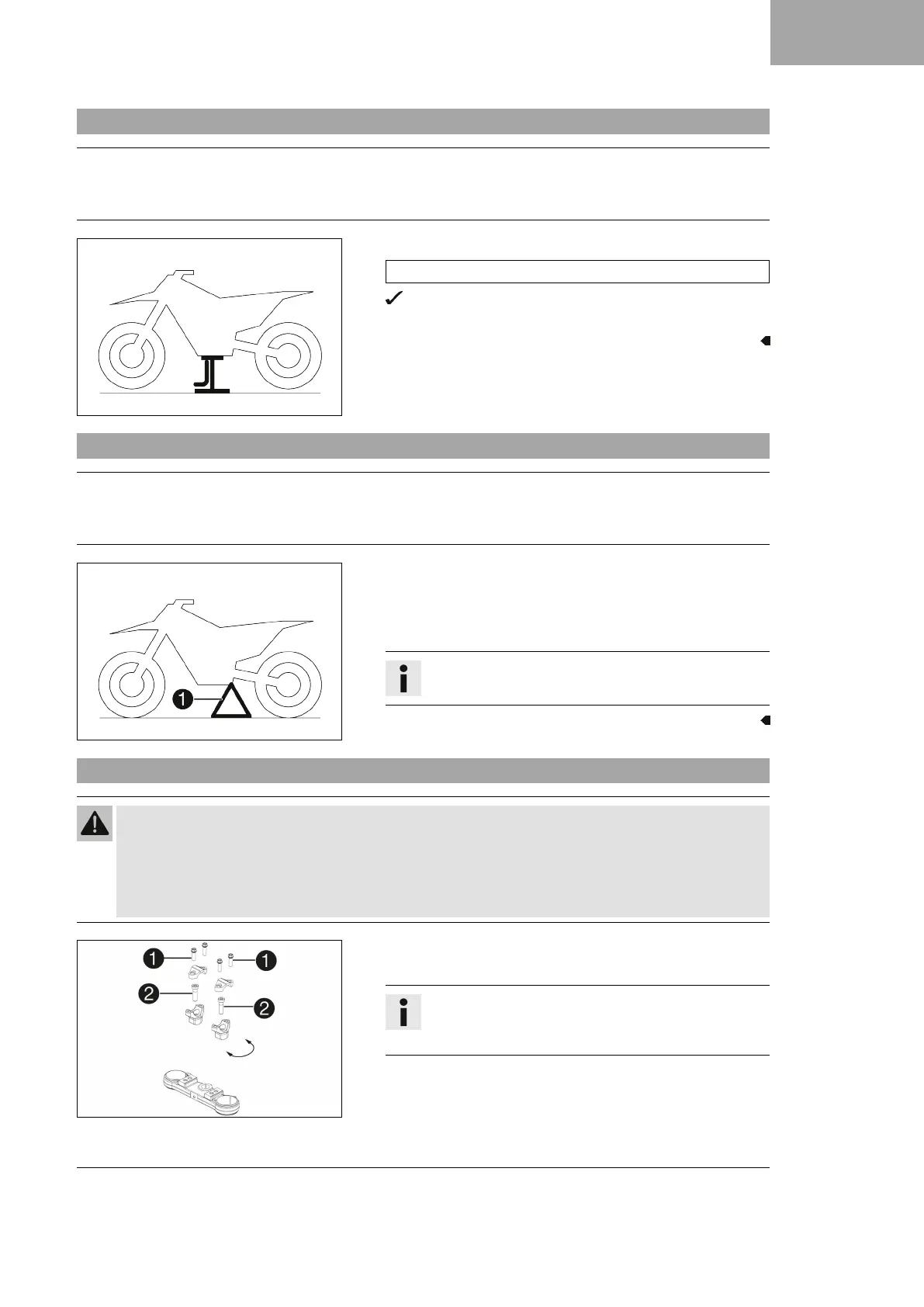

3.1 Raising the motorcycle with a lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
401942-01
– Raise the motorcycle at the frame underneath the engine.
Lift stand (78929955100)
Neither wheel is in contact with the ground.
– Secure the motorcycle against falling over.
3.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
402581-10
– Remove the motorcycle from the lift stand.
– Remove the lift stand.
–
To park the motorcycle, insert plug-in stand
1
into the plug-
in stand bracket on the left side of the vehicle.
Info
Remove the plug-in stand before riding.
3.3 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
C00249-10
–
Remove screws
1
. Take off the handlebar clamps. Remove
the handlebar and lay it to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
2
. Take off handlebar supports.
– Place handlebar supports in required position. Mount and
tighten screws
2
.

KTM 50 SX 2023 Specifications

General

Displacement	49 cc
Cooling	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Rear Suspension	WP XACT Monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Front Tire	60/100-12
Rear Tire	2.75-10
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Bore x Stroke	39.5 mm x 40 mm
Final Drive	Chain
Front Brake Disc Diameter	160 mm
Rear Brake Disc Diameter	160 mm
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT 35 USD fork, Ø 35 mm
Fuel System	Dellorto PHBG 19 BS
Wheelbase	1032 mm
Fuel Tank Capacity	2.3 l
Frame	Central-tube frame
