KTM 50 SX 2023 User Manual

3 WORK
6
Guideline
Screw, handle-
bar support
M10 40 Nm (29.5 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position the handlebar clamps. Mount screws
1
and tighten
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Info
Make sure the installed gaps are even.

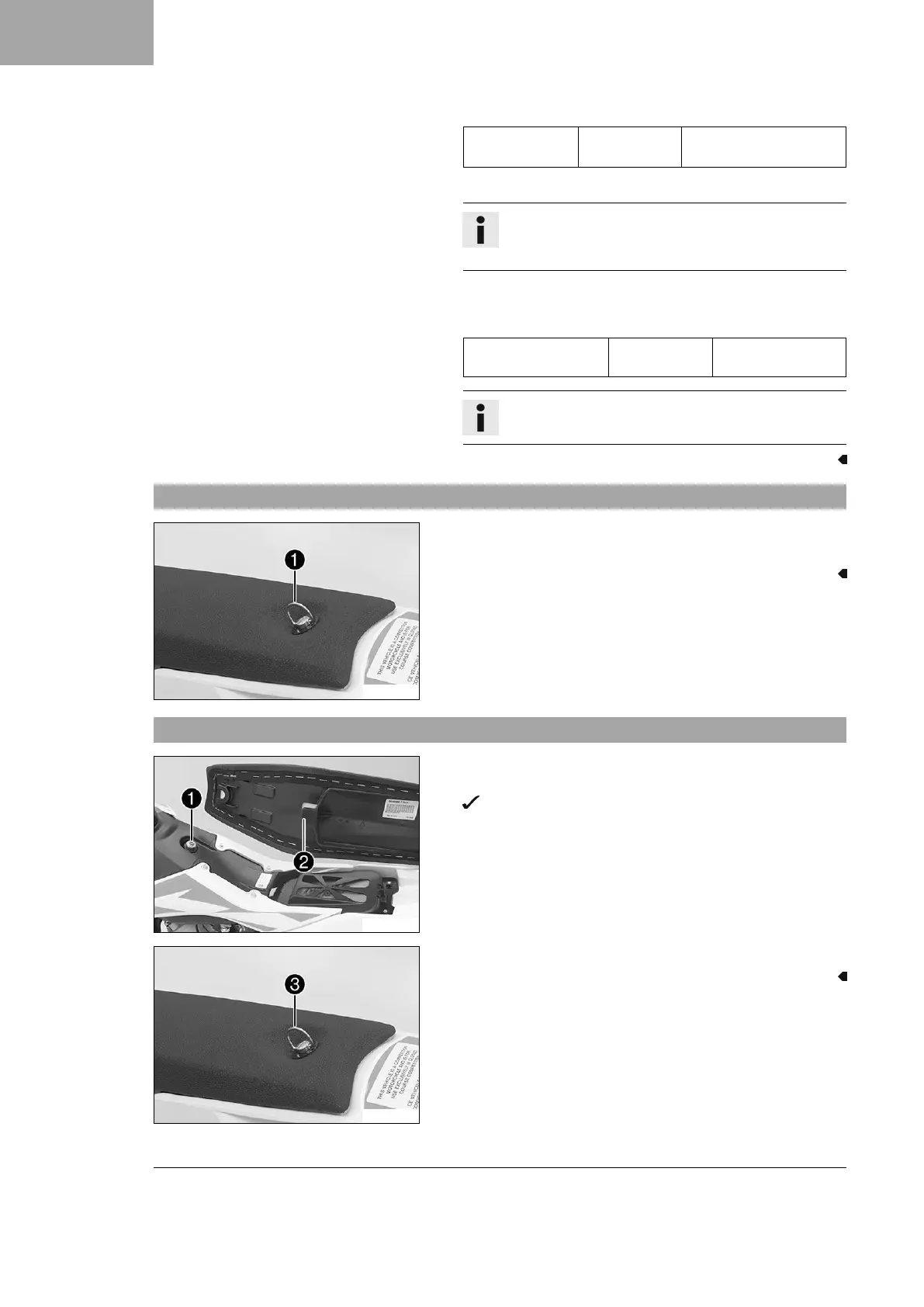

3.4 Removing the seat
H00066-10
–
Open quick release
1
and raise the rear of the seat.
– Pull back the seat and remove it.
3.5 Mounting the seat
H01431-10
–
Hook seat onto screw
1
and lower the seat at the rear and
push it forward.
Holding lug
2
hooks into the fuel tank.
H00066-11
–
Close quick release
3
.

KTM 50 SX 2023 Specifications

General

Displacement	49 cc
Cooling	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Rear Suspension	WP XACT Monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Front Tire	60/100-12
Rear Tire	2.75-10
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Bore x Stroke	39.5 mm x 40 mm
Final Drive	Chain
Front Brake Disc Diameter	160 mm
Rear Brake Disc Diameter	160 mm
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT 35 USD fork, Ø 35 mm
Fuel System	Dellorto PHBG 19 BS
Wheelbase	1032 mm
Fuel Tank Capacity	2.3 l
Frame	Central-tube frame
