13 BRAKE SYSTEM
108
100397-01
–

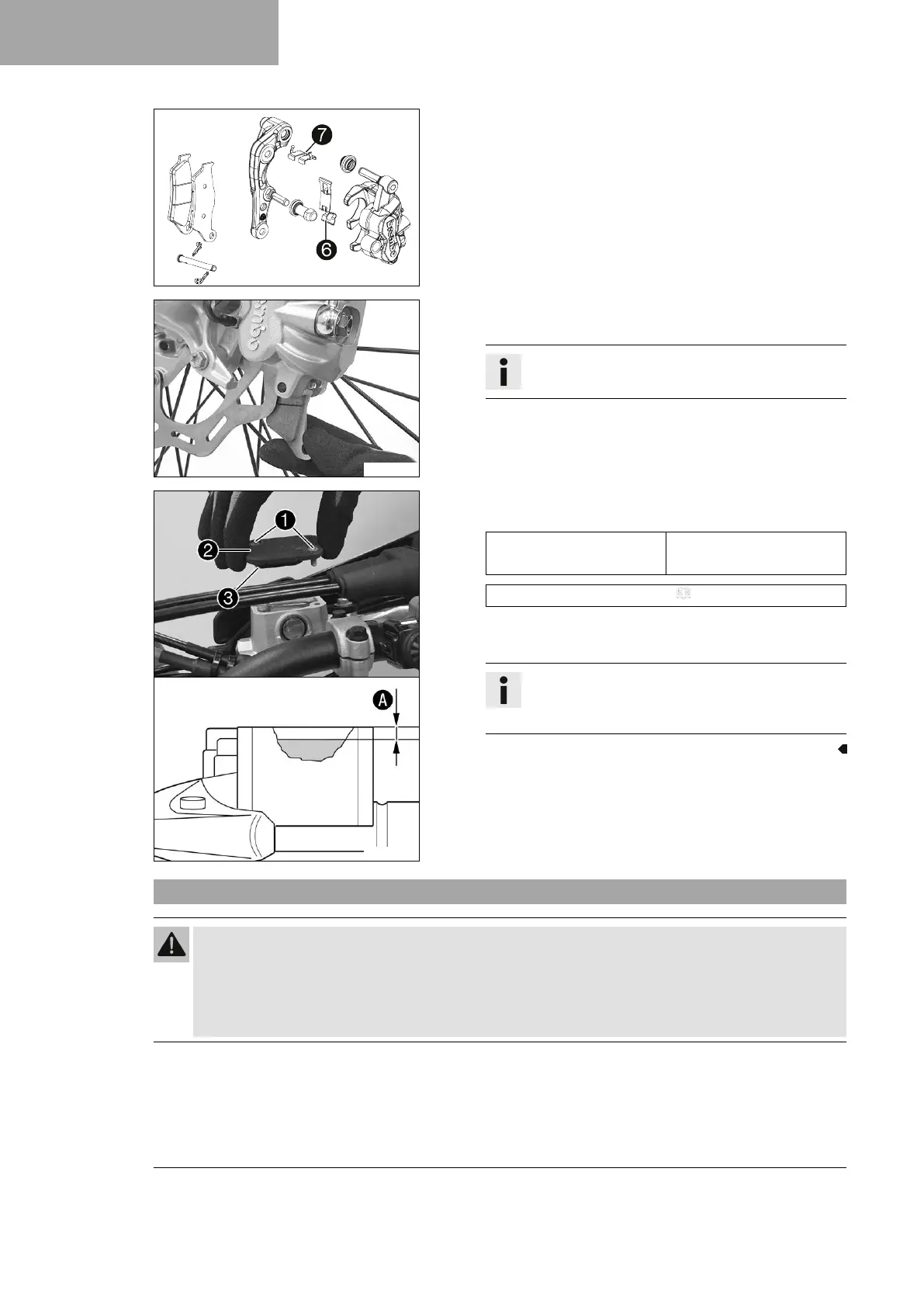

Check that spring plate
6
in the brake caliper and sliding
plate
7
in the brake caliper bracket are seated properly.
E00345-10
– Insert the new brake linings, insert the pin, and mount the
cotter pins.
Info
Always change the brake linings in pairs.
– Operate the hand brake lever repeatedly until the brake
linings are in contact with the brake disc and there is a
pressure point.
V01771-10
–
Correct the brake fluid quantity to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 164)
–
Position cover
2
with membrane
3
. Mount and tighten
screws
1
.
Info
Immediately clean up any brake fluid that has over-
flowed or spilled with water.
13.9 Checking the free travel of foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
