KTM 500 EXC-F Six Days 2020 User Manual

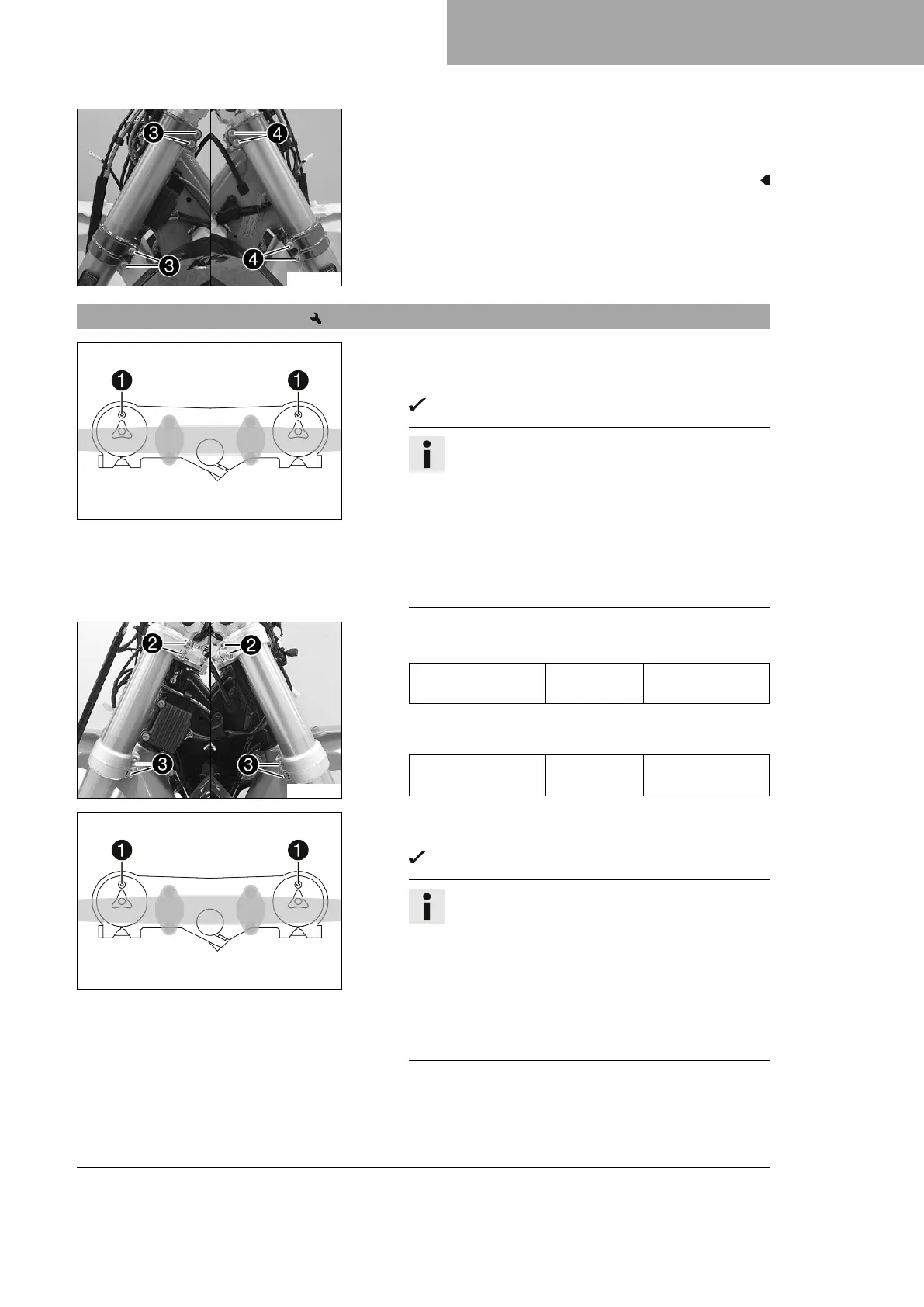

SERVICE WORK ON THE CHASSIS 12
67
V01784-10
(All EXC-F Six Days)
–
Loosen screws
3
. Remove the left fork leg.
–
Loosen screws
4
. Remove the right fork leg.
12.8 Installing the fork legs
402556-10
Main work
(EXC‑F EU, XCF‑W)
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The rebound damping is located in right fork
leg REB (red adjusting screw). The compression
damping is located in left fork leg COMP (white
adjusting screw).
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the
top) must be flush with the upper edge of the upper
triple clamp.
V01756-11
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm
(14.8 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom
triple clamp
M8 15 Nm
(11.1 lbf ft)
402556-10
(All EXC-F Six Days)
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The rebound damping is located in right fork
leg REB (red adjusting screw). The compression
damping is located in left fork leg COM (white
adjusting screw).
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the
top) must be flush with the upper edge of the upper
triple clamp.
