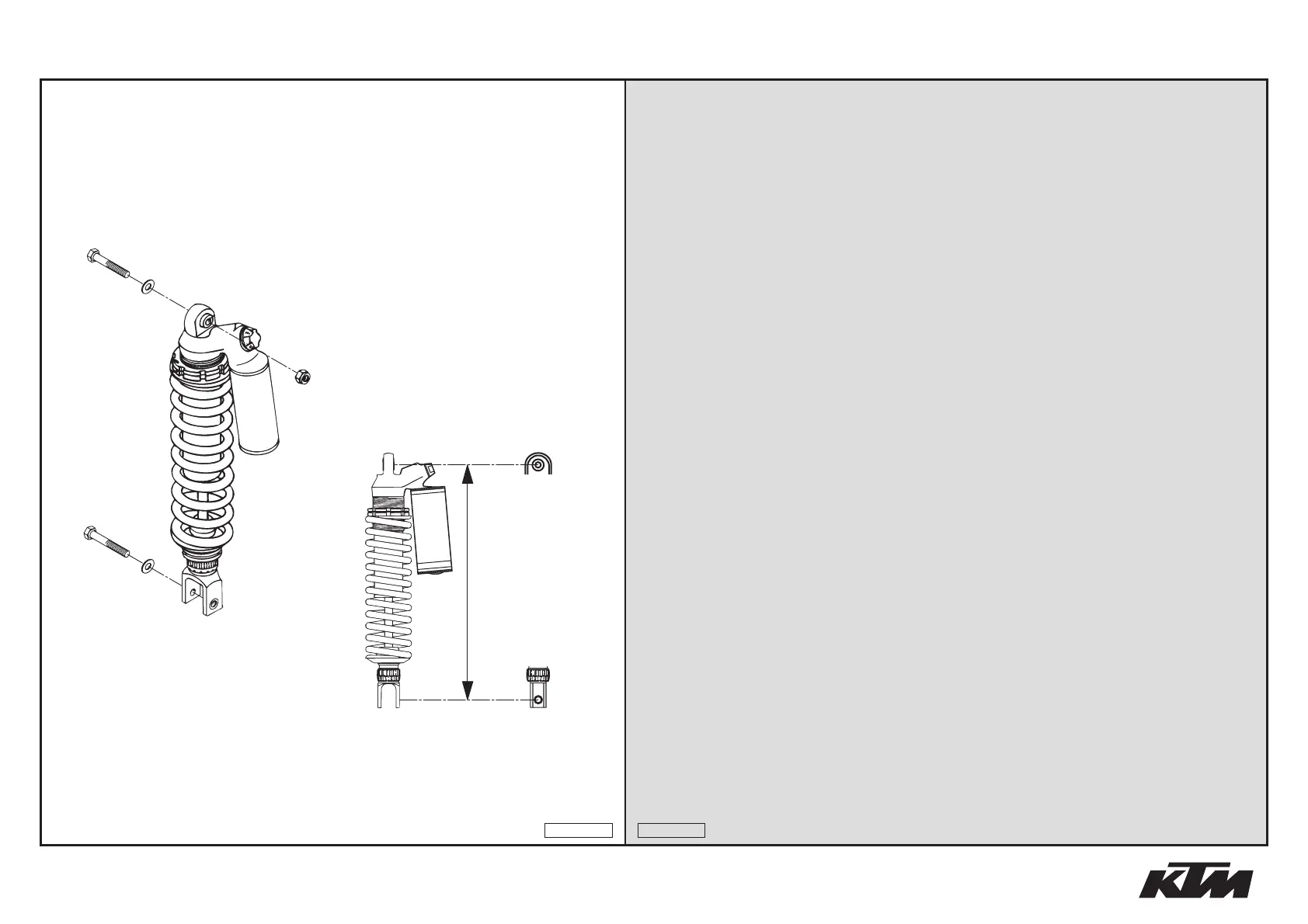

FEDERBEIN WP » MONOSHOCK WP
625 / 2005
* NEUTEIL / NEW PART X NACH BEDARF / AS REQUIRED
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1* 0118.7A01 MONOSHOCK 4681 BAVP SXC 05 MONOSHOCK 4681 BAVP SXC 05 1
14 565.03.086.000 SONDERSCHRAUBE M10X47 SW=17 SPECIAL SCREW M10X47 WS=17 1
15 565.03.093.000 SONDERSCHRAUBE M10X55 SW=17 SPECIAL SCREW M10X55 WS=17 1
16 0125 100003 UNTERLEGSCHEIBE DIN 125 A 10,5 WASHER DIN0125-A10,5 2
17 543.10.086.100 SS.MUTTER M10 CU SW=14 SELF LOCKING NUT M10 CU WS=14 1
05-583.04.2
16
1
bo
bp
bq
bq
br
625 SXC
L = 412 MM
05-583.04.2
