KTM 625 SXC Spare Parts Manual

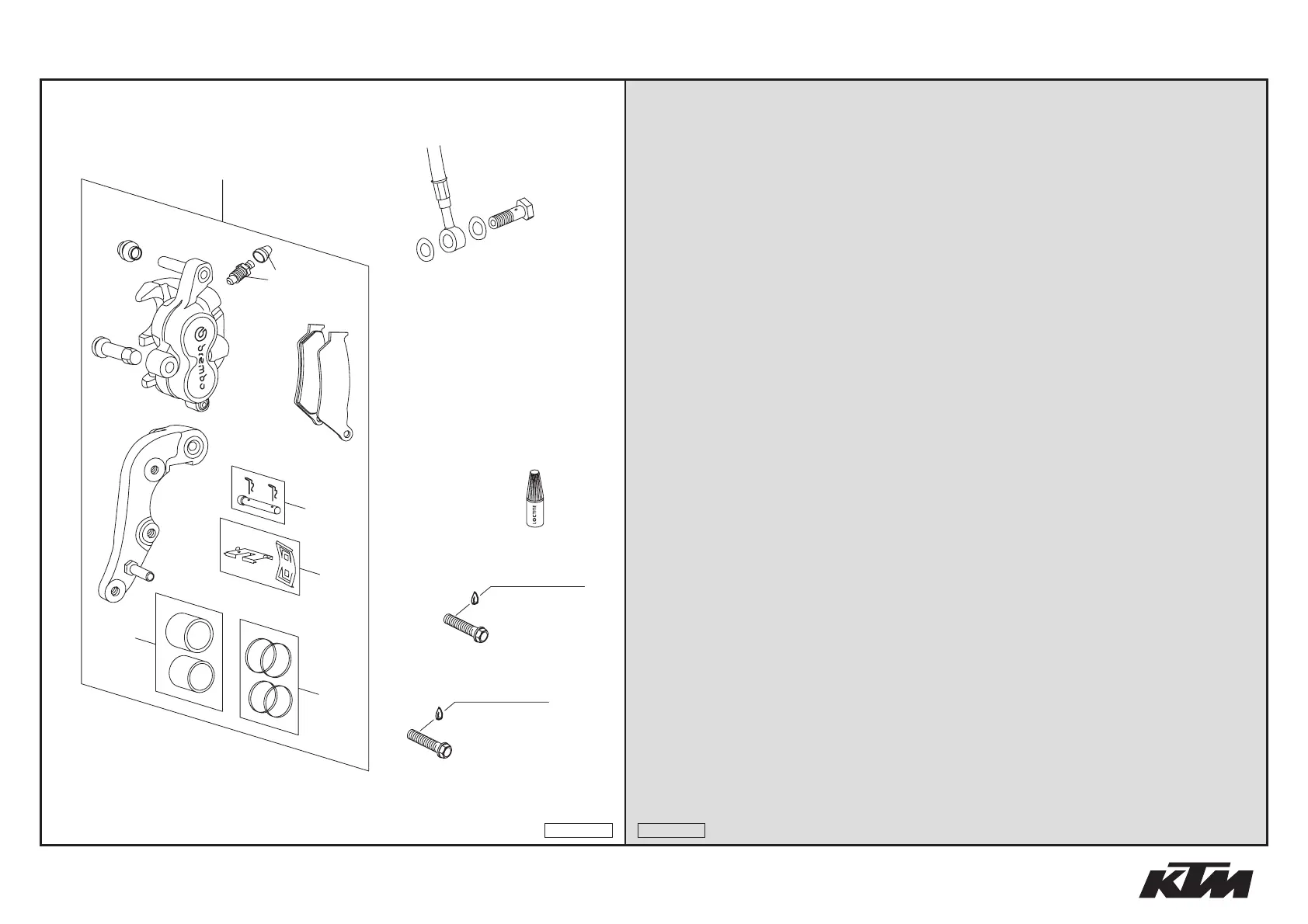

BREMSZANGE VORNE BREMBO » BRAKE CALIPER FRONT BREMBO
625 / 2005
* NEUTEIL / NEW PART X NACH BEDARF / AS REQUIRED
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1 590.13.015.144 BREMSZANGE VO.KPL.BREMBO 2000 BRAKECALIPER FRONT BREMBO 2000 1
5 546.13.205.000 REP.SATZ 28MM REPAIR KIT 28MM 1
6 546.13.206.000 REP.SATZ KOLBEN 28MM REPAIR KIT PISTON 28MM 1
7 546.13.210.100 BOLZEN KPL. 6X56 BOLT CPL. 6X56 1
8 546.13.212.000 HALTEBLECHE GARNITUR BREMBO RETAINING PLATE SET BREMBO 1
9 503.13.030.100 GARN.BREMSKL.VO.TOSHIBA TT2701 BRAKE P.SET FR. TOSHIBA TT2701 1
9 584.13.030.000 GARN.BREMSKL.VO. TEXTART4069GF BRAKE P.SET FR. TEXTART4069 GF X
9 503.13.030.000 GARN.BREMSKL.VO. TOSHIBA H38 BRAKE PAD SET FR. TOSHIBA H38 X
9 590.13.030.000 GARN.BREMSKL.VO. SINTER 03 BRAKE PAT SET FR. SINTER 03 X
10 600.13.020.000 ENTLÜFTUNGSSCHRAUBE MIT KAPPE BLEEDER SCREW WITH CAP 1
12 546.13.218.000 MANSCHETTENSATZ CUP SET SHORT 1
15* 0015 080350 SK.BUNDSCHRAUBE M8X35 SW=10 SS HH COLLAR SCR. M8X35 WS10 W.L. 2
21 590.13.011.000 BREMSSCHL. VO. 1300MM 2000 BRAKEHO. FRONT 1300MM 2000 1
30 420.13.226.000 CU-DICHTRING DIN7603-10X16X1 CU-SEAL RING DIN7603-10X16X1 1
31 420.13.026.000 CU-DICHTRING DIN7603-10X16X1,5 CU-SEAL RING DIN7603-10X16X1,5 1
35 502.13.025.000 HOHLSCHRAUBE M10X1X19 HOLLOW SCREW M10X1X19 1
36 6 899 785 LOCTITE 243 BLAU 6CCM LOCTITE 243 BLUE 6CCM 1
