KTM 625 SXC User Manual

ENGLISH
14
OPERATION INSTRUMENTS
»

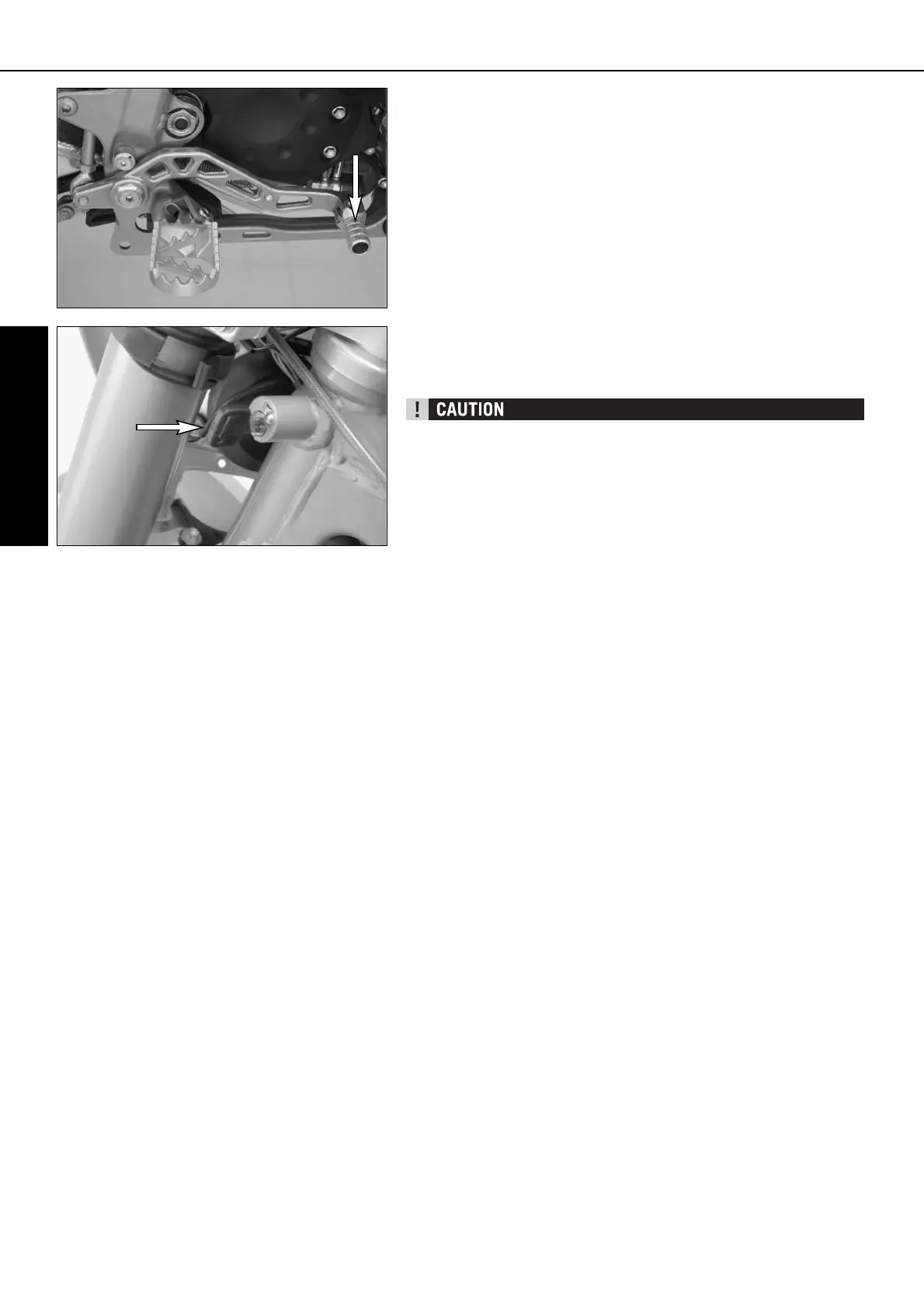

Foot brake pedal
The foot brake pedal is located in front of the right foot rest. Its basic
position can be adjusted to your seat position (see maintenance work).
Handlebar lock
The handlebar can be locked by means of the lock located on the control head.
Fully turn handlebar to right to lock, insert key, turn to left, press in, turn to
right and withdraw.
Never leave the key inserted in the lock. If you turn the steering to the left
the key could get damaged.

KTM 625 SXC Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	625 cc
Bore x Stroke	101 mm x 78 mm
Cooling System	Liquid cooled
Transmission	5-speed
Front Suspension	WP USD 48 mm
Compression Ratio	11.5:1
Rear Suspension	WP shock absorber
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel System	Keihin carburetor
Starter	Electric
Ignition	Kokusan

Summary

IMPORTANT INFORMATION

Intended Use and Manual Guidance

KTM motorcycles are designed for competition and road use; read manual for proper operation and maintenance.

Service and Warranty

Service work and records are required for warranty documentation; observe service schedules.

Operational Guidelines

Covers automotive fluids, spare parts, transport, and environmental considerations.

SERIAL NUMBER LOCATIONS

Chassis and Engine Identification

Locating the chassis and engine numbers stamped on the motorcycle.

OPERATION INSTRUMENTS

Handlebar Controls

Details on clutch lever, decompression lever, brake levers, and indicator lamps.

Electronic Speedometer Functions

Explains speedometer modes, wheel size, speed, ODO, LAP, MAX, TR1/TR2, A1/A2, S1/S2, clock, and units.

Ignition and Electrical Switches

Covers ignition lock, combination switch, flasher, emergency OFF button, and filler cap.

Engine Controls

Details on fuel tap, choke, hot start device, shift lever, and kickstarter.

Foot Controls and Locks

Information on the foot brake pedal and handlebar lock mechanism.

Suspension Adjustments

Guide to adjusting compression and rebound damping for fork and shock absorber.

STARTING AND DRIVING GUIDELINES

Initial Operation and Break-in

Instructions for initial operation and the break-in procedure for LC4 models.

General Riding Safety

Covers safety warnings, advice on accessories, payload, and general riding precautions.

Pre-Ride Checks

Essential checks to perform before each start to ensure safe operation.

Starting Procedures

Step-by-step guidance for starting the engine when cold, warm, or flooded.

Riding and Braking Techniques

Guidance on shifting, riding, braking, stopping, and parking the motorcycle safely.

Stopping, Parking, and Fuel

Covers side stand use, fuel requirements, and safety precautions.

PERIODIC MAINTENANCE SCHEDULE

MAINTENANCE WORK ON CHASSIS AND ENGINE

Chassis and Wheel Systems

Covers seat removal, tool kit, steering head bearing, wheels, tires, chain, and suspension.

Brake System Servicing

Details on brake fluid, pads, levers, discs, and related maintenance tasks.

Engine and Fuel System Maintenance

Includes air filter, exhaust, cooling system, fuel tap, and carburetor maintenance.

Lubrication and Oil System Service

Covers clutch system maintenance, engine oil checks, and oil filter replacement.

Electrical System Maintenance

Information on battery, fuses, bulbs, and headlight maintenance.

TROUBLE SHOOTING

CLEANING AND STORAGE

Motorcycle Cleaning Procedures

Guidelines for cleaning the motorcycle and using protective agents.

Winter Storage and Re-initiation

Instructions for storing the motorcycle and preparing it after storage.

TECHNICAL SPECIFICATIONS

Engine Specifications

Detailed specifications for the motorcycle's engine.

Chassis Specifications

Details on frame, suspension, brakes, wheels, tires, and electrical components.

Chassis Tightening Torques

List of chassis components and their specified tightening torques.

WIRING DIAGRAM AND CABLE COLORS

Wiring Diagram

Schematic representation of the motorcycle's electrical system.

Cable Color Identification

List of cable colors and their meanings in multiple languages.
