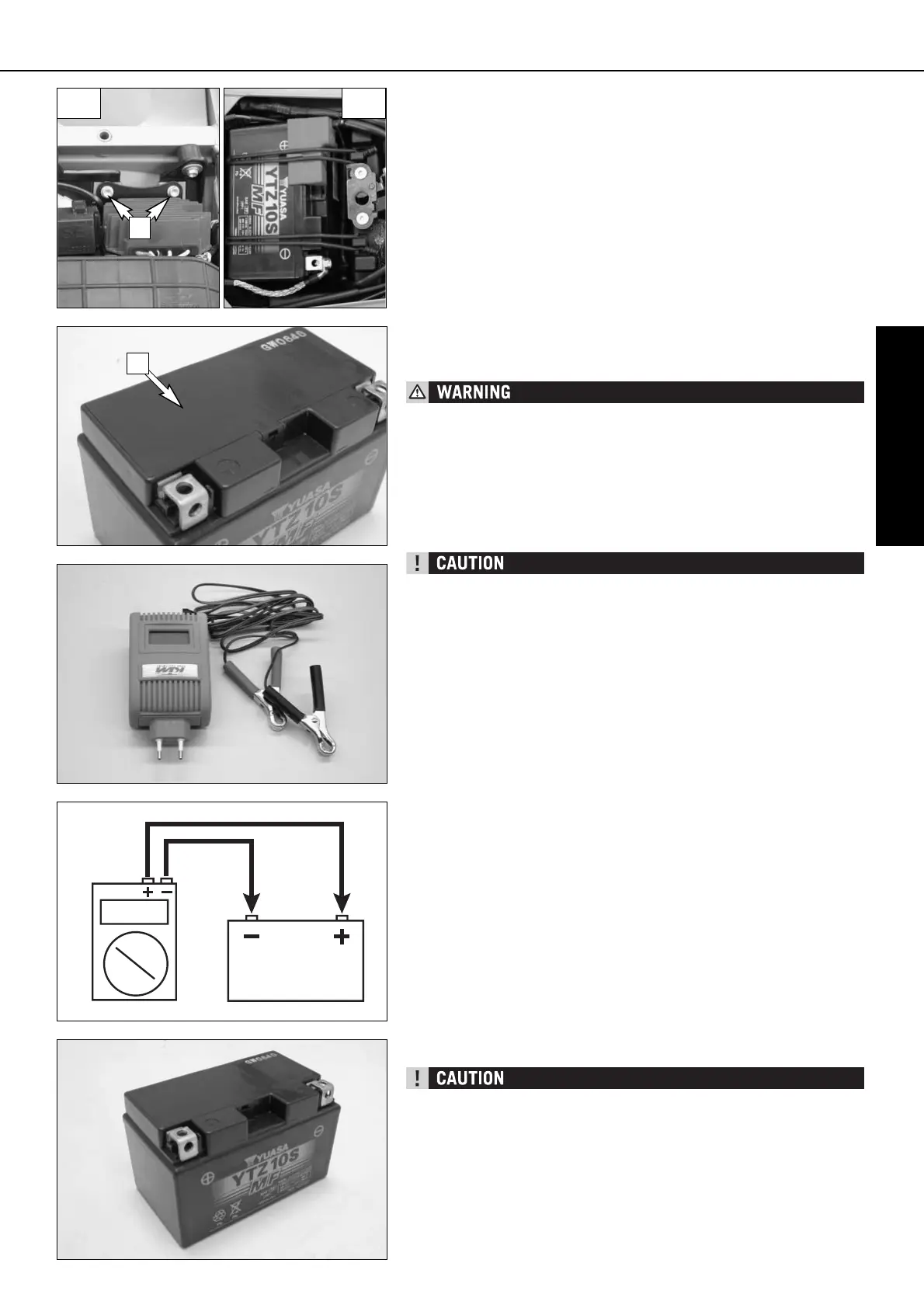

MAINTENANCE WORK ON CHASSIS AND ENGINE
»
Battery (SXC)
The battery is located under the seat and is maintenance-free.
It is not necessary to check the electrolyte level or to refill water. Simply keep
the battery poles clean and slightly grease them with an acid-free grease if
necessary.
Removing the battery:
Remove screws [1] and swing retaining bracket and voltage regulator out of
the way.
First disconnect the negative and then the positive pole of the battery.
Remove battery.
When replacing, connect first the positive and then the negative pole.
Battery (SMC)
The battery is located under the seat and is maintenance-free.
It is not necessary to check the electrolyte level or to refill water. Simply keep
the battery poles clean and slightly grease them with an acid-free grease if
necessary.
– If electrolyte (sulphuric acid) leaks from the battery, proceed with great
care. The electrolyte can cause severe burns.
– In the case of skin contact rinse thoroughly with water.
– In the case of contact with the eyes, thoroughly rinse eyes with water for
at least 15 minutes. Immediately consult a doctor.
– The battery is a closed model but can nevertheless emit explosive gases.
Avoid sparks and open fire near the battery.
– Defective batteries must be stored out of the reach of children. Ensure
proper disposal of discarded batteries.
– To avoid damage, do not remove the locking bar [2].
– Never disconnect the battery while the engine is running. This will destroy
the rectifier-regulator.
– The battery must be installed with the terminals facing the front (as shown
in the illustration), otherwise electrolyte can escape.
BATTERY STORAGE:
When preparing the motorcycle for a longer period of standstill, remove the
battery and recharge it. Storage temperature: 0 - 35°C (30 - 95°F). Do not
expose to direct sunlight.
Charging the battery
NOTE: A battery charger, item no. 58429074000 is available from your KTM
dealer.
You can also use the battery charger to test the battery's off load voltage, starta-
bility and the generator capacity.
Remove the battery and check the charging level. Use a voltmeter to
measure the voltage between the battery poles (off-load voltage).
Accurate results can only be obtained if the battery has neither been charged
nor discharged during a period of 30 minutes preceding the measuring.
Recharging is not required if the voltage exceeds 12.4 V.
Recharge if the voltage is below 12.4 V.
CHARGING:
Charge the battery for 5 to a max. of 10 hours with 0.9 amperes and a max.
of 14.4 volts.
For a quick charge, do not charge the battery longer than 1 hour with 4.5
amperes and a max. of 14.4 volts.
– If the charge condition cannot be established, the battery may only be
charged 5 to a max. of 10 hours with 0.9 amperes and a max. of 14.4
volts.
– Always connect the battery to the charging unit before turning the charg-
ing unit on.
– When recharging the battery in closed rooms there is sufficient ventila-
tion. Explosive gases are released during the battery charging process.
– Charging time and charging voltage should not exceed the stated values.
Otherwise electrolyte will be released through the safety valves.
– Avoid quick charging if possible.
– To avoid damage, do not remove the locking bar.
