Electronic speedometer
The display in the electronic speedometer is activated as soon as you press
a button on the speedometer or an impulse is received from the wheel sen-
sor. The display lights up when the engine is running.
The display is cleared if no button is pressed for 1 minute or no impulse is
received from the wheel sensor.
The | button is used to change between display modes.
The + and – buttons are used to control various functions.
TEST

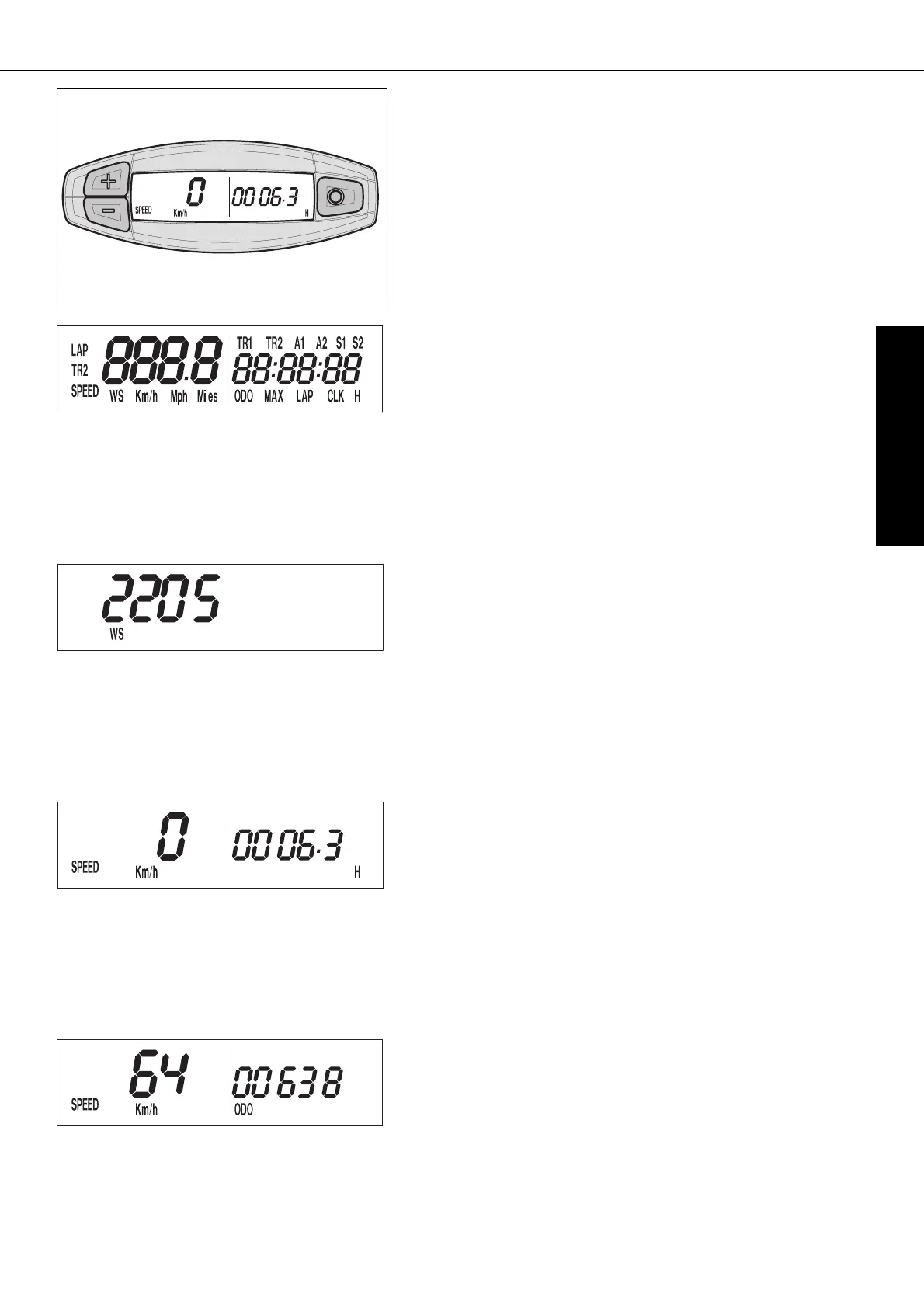

All of the display segments briefly light up for the display function test.
WS (wheel size)
The display changes and the circumference of the front wheel is briefly dis-
played in millimeters (2205 mm corresponds to a front wheel circumference
of 21" with production tires).
Afterwards the display will return to the previous display mode.
SPEED display mode / H (service hours)
Only the SPEED / H and SPEED / ODO display modes are activated in the
condition at delivery. SPEED/H is displayed whenever the display is activated
and the front wheel is not turning. It automatically changes to the SPEED/ODO
display mode as soon as the front wheel starts turning.
SPEED displays the speed.
H displays the engine's service hours. The service hour counter starts to count
as soon as you start the engine. The displayed figure cannot be changed.
Service intervals are indicated in service hours for some KTM offroad motor-
cycles, making the service hour counter a very practical function.
SPEED / ODO display mode (odometer)
The SPEED/ODO mode displays the speed and the total distance traveled.
The display automatically changes to the SPEED/H display mode when the
front wheel stops turning.
+ button no function
– button no function
briefly press | button changes to the next display mode
hold | button 3 secs. changes to the next display mode
The electronic speedometer has a number of display modes (functions) that
you can also activate (reveal) (see: Activating and deactivating display modes).
