Repair manual KTM 85 SX Art No 3.206.008-E

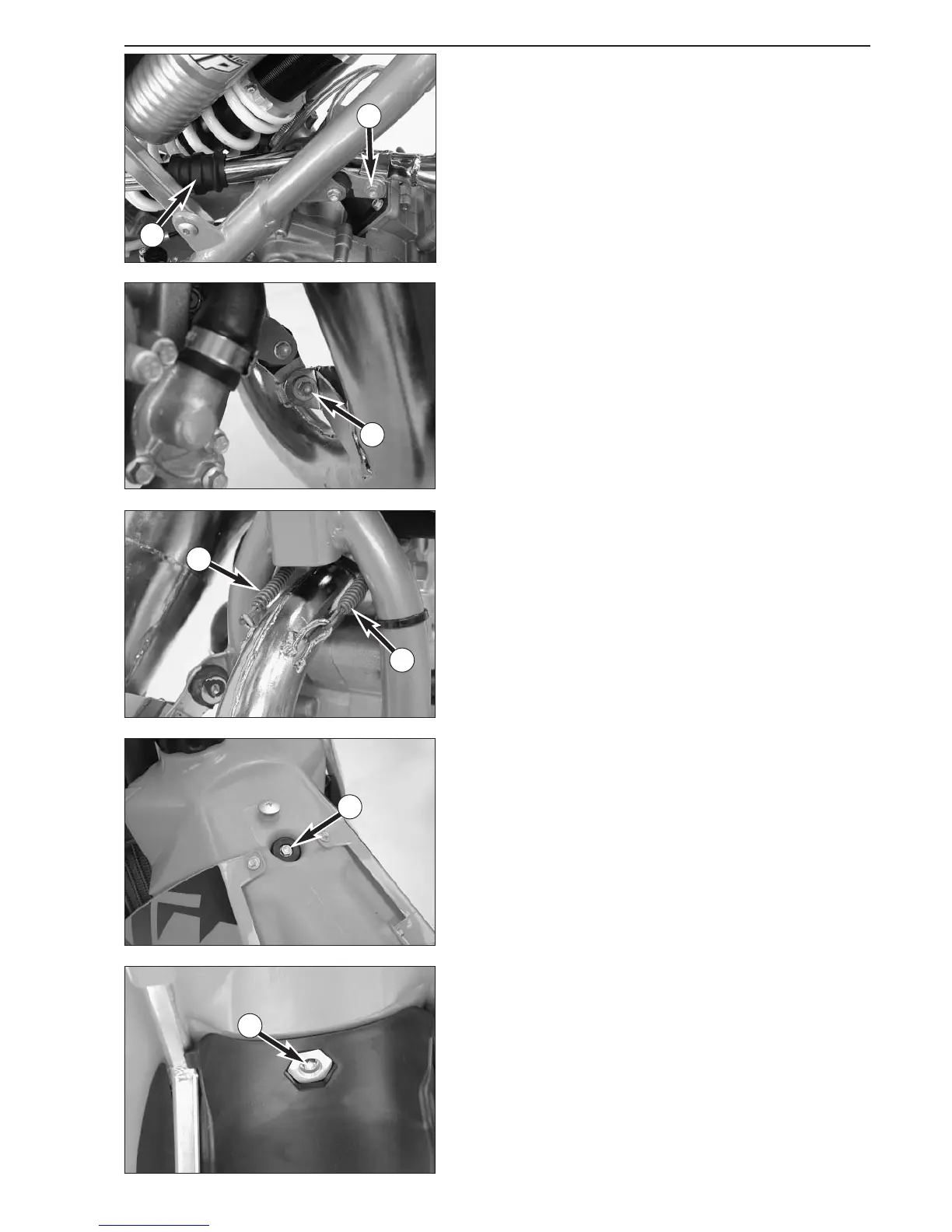

– Push exhaust pipe into the rubber sleeve 1 and tighten the bolt of
the rear exhaust pipe bracket
2.
–Tighten the bolt of the front exhaust pipe bracket
3.
– Hook the spring
4.
– Correctly position the tank and mount the bolt
5 with the tank roller,
tighten the bolt to 10 Nm.
– Connect the fuel hose to the carburetor.
– Mount the chain and the chain joint. When mounting the chain joint
make sure that the closed side of the safety device is facing the
moving direction.
– Mount the seat. When mounting, make sure the locating tab engages
in the seat. Tighten bolt
6.
1
2
3
4
4
5
6
