SERVICE WORK ON THE CHASSIS 11
51
Universal oil spray ( p. 142)
– Press the dust boots back into their installation position.
– Remove excess oil.
Finishing work
– Install the fork protector. ( p. 51)
– Remove the motorcycle from the lift stand. ( p. 49)

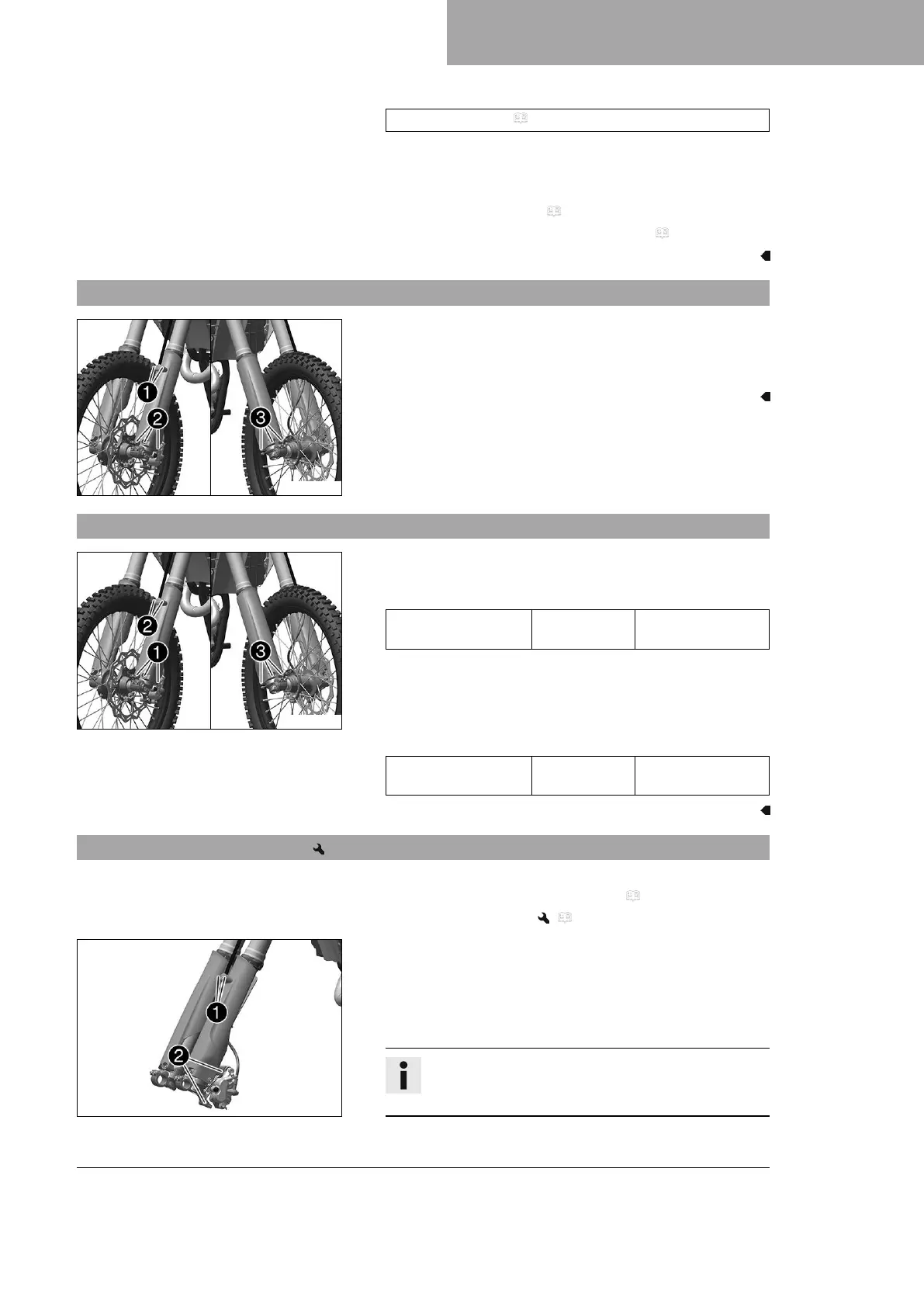

11.5 Removing the fork protector
S05329-10
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the left fork protector.
–
Remove screws
3
and take off the right fork protector.
11.6 Installing the fork protector
S05329-11
– Position the fork protector on left fork leg. Mount and tighten
screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line and the clamp. Mount and tighten
screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.7 Removing the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 49)
– Remove the front wheel. ( p. 93)
S05330-10
Main work
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the brake caliper.
– Allow the brake caliper and the brake line to hang loosely to
the side.
Info
Do not actuate the hand brake lever when the front
wheel is removed.
