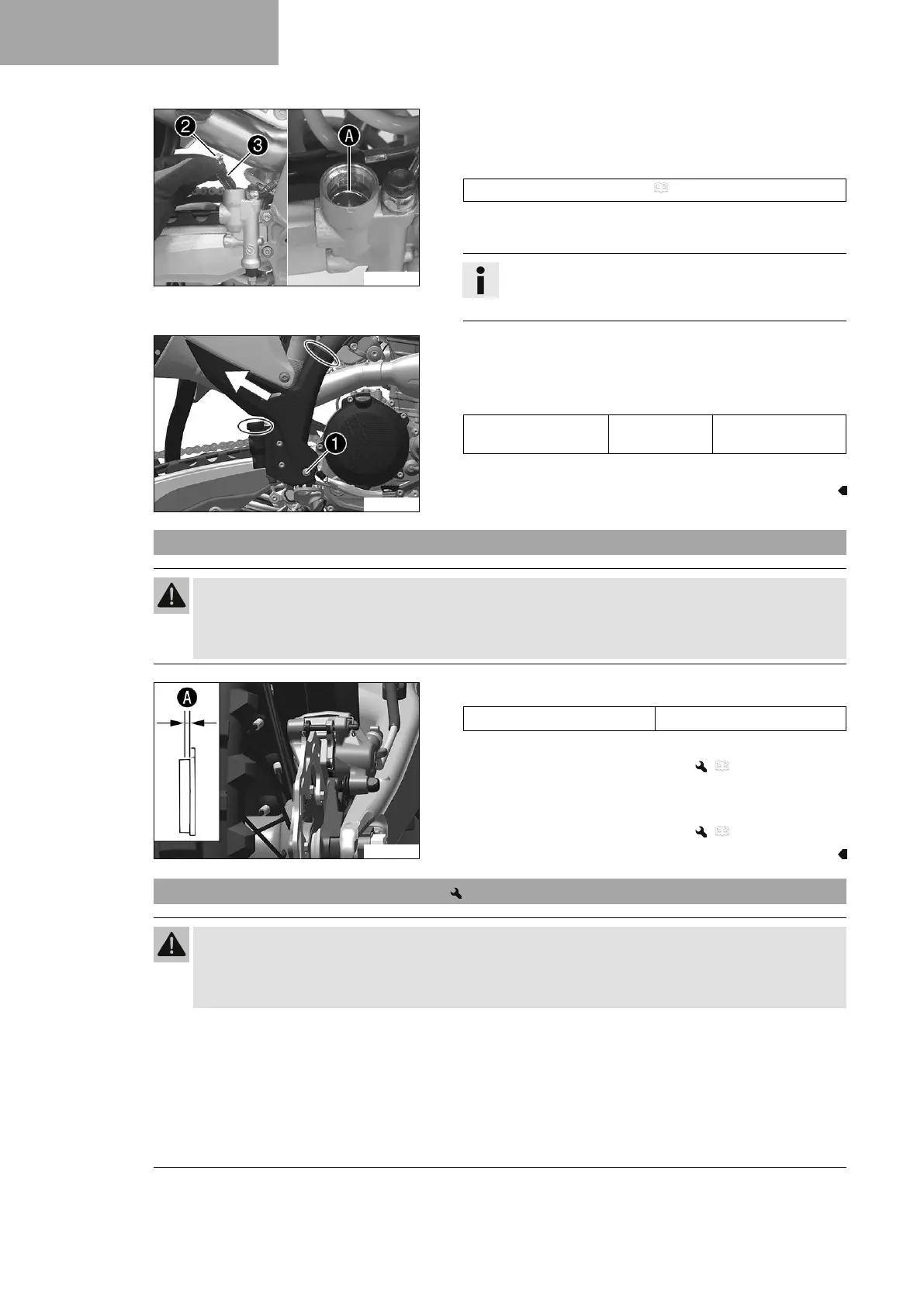

12 BRAKE SYSTEM
90
F03718-10
– Stand the vehicle upright.
–
Remove screw cap
2
with membrane
3
and the O-ring.
–
Add brake fluid up to the marking
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 139)
– Mount and tighten the screw cap with the membrane and O-
ring.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
S05367-11
– Insert the right frame protector from below and push it to the
rear.
–
Mount and tighten the screw
1
and washer.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
– Mount the new cable ties.
12.12 Checking the brake linings of the rear brake
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
S05376-10
–
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the rear brake linings. ( p. 90)
– Check the brake linings for damage and cracking.
» If damage or wear is encountered:
– Change the rear brake linings. ( p. 90)
12.13 Changing the rear brake linings
Warning
Danger of accidents Incorrect servicing will cause the brake system to fail.
– Ensure that service work and repairs are performed professionally. (Your authorized KTM workshop
will be glad to help.)
