SERVICE WORK ON THE CHASSIS 3
5

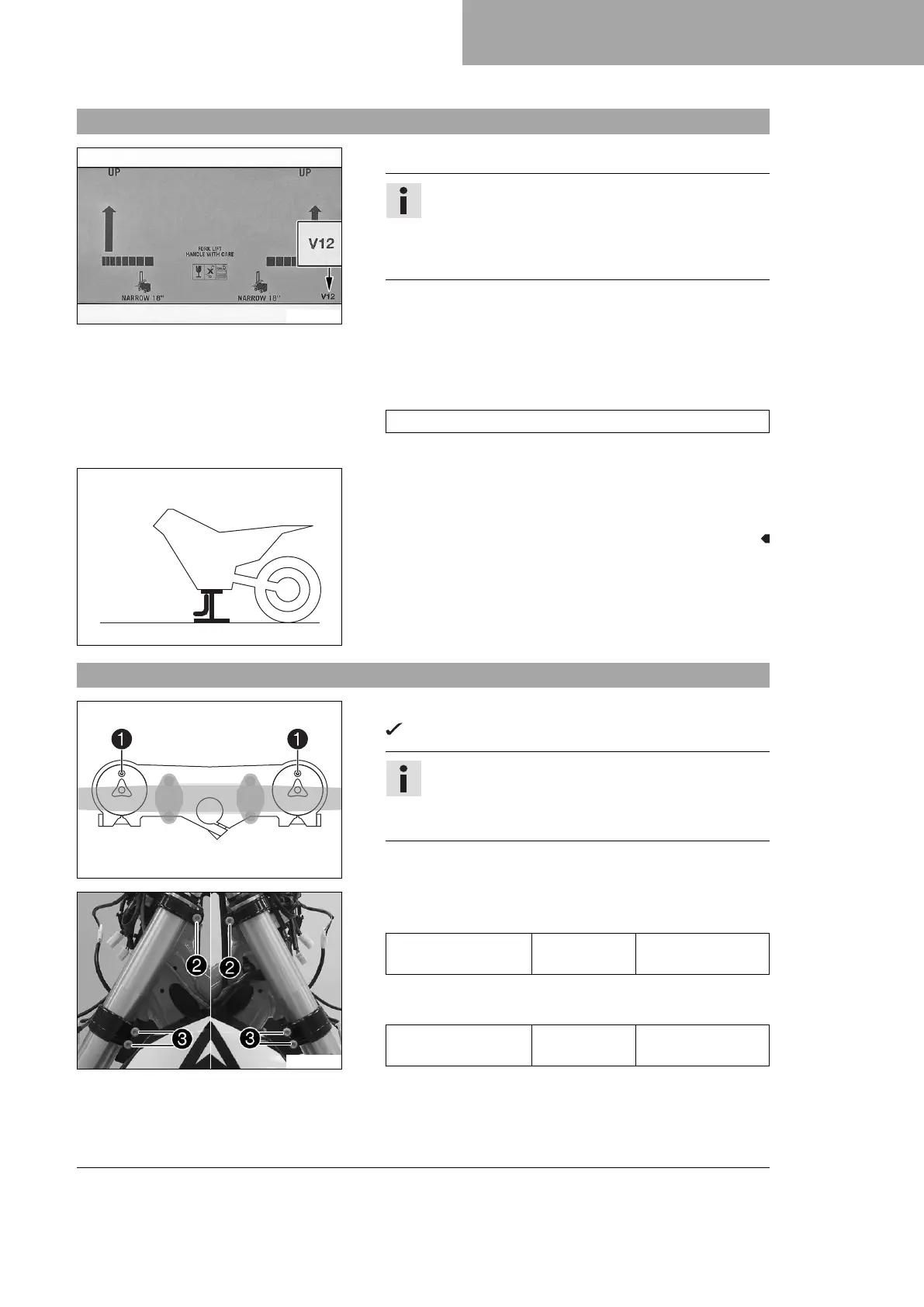

3.3 Unpacking and setting up the V12 vehicle
E00850-10
– Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup,
leave the protective film on the vehicle until you have
finished.
– Remove and unpack the separate enclosure and attachments.
Check that the scope of supply is complete using the enclosed
packing list.
– Remove the spare key and KEYCODECARD and keep in a safe
place for the handover.
– Have a lift stand available.
Lift stand (78929955100)
– Remove the two cable ties on the triple clamp.
402051-01
– Together with an assistant, take the vehicle off the pallet.
– Position the vehicle on a lift stand.
– Check the vehicle and attachments for transport damage.
3.4 Installing V12 fork legs
402556-10
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the upper edge of the upper triple clamp.
E00974-10
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 22 Nm (16.2 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 18 Nm (13.3 lbf ft)
