SERVICE WORK ON THE CHASSIS 3
15
E00969-10
–
Join plug-in connector
2
of the turn signal cable.
–
Make sure that the bulb is located in socket
3
.
» If there is no bulb in the socket:
– Insert the bulb, included in the accessory pack, in
socket
3
.
Indicator lamps (W2.3 W / socket W2.1x4.6 d)
– Position the cable with socket and bulb in turn signal control
lamp
1
.

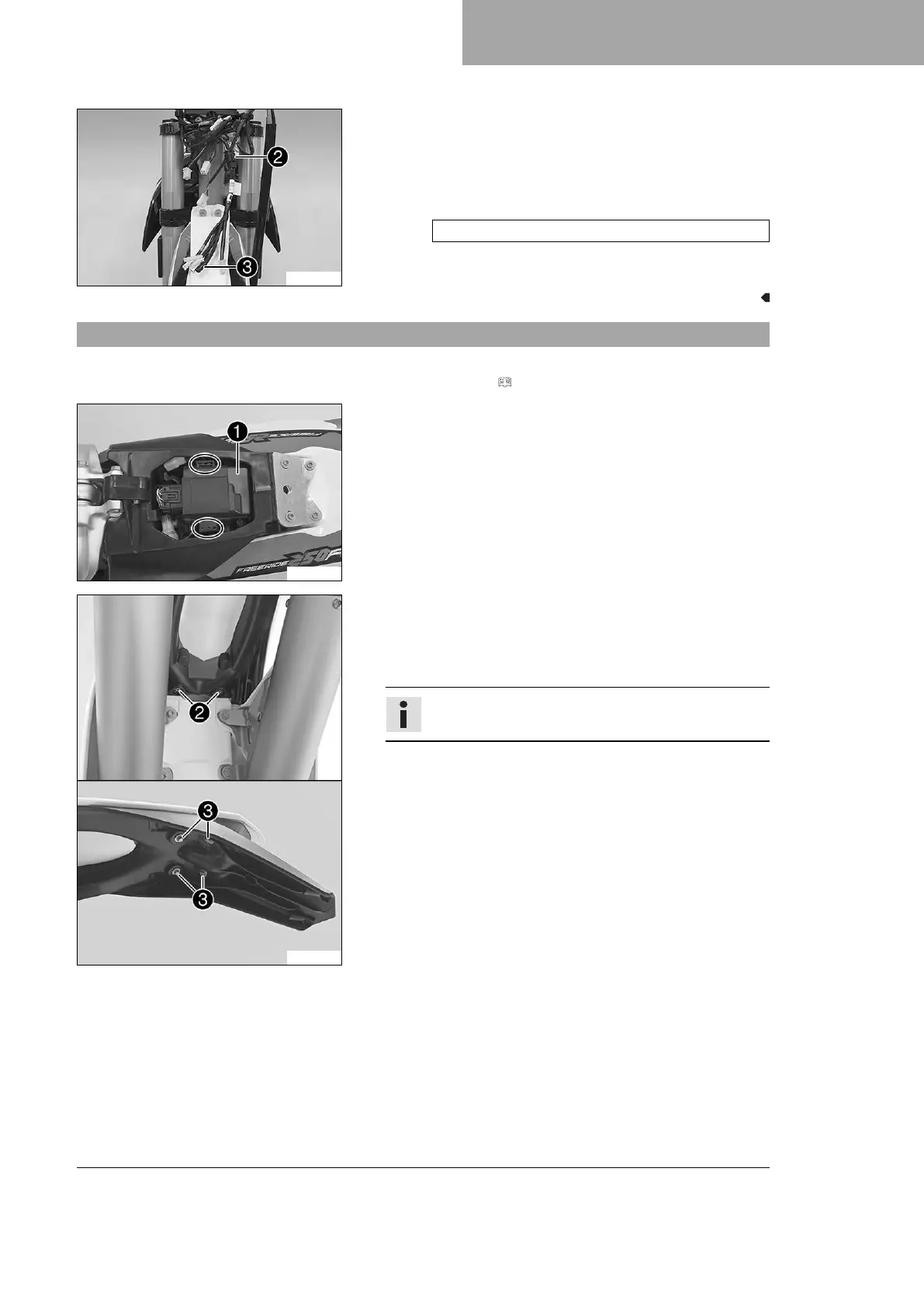

3.20 Routing the rear turn signal cable
Preparatory work
– Fold the seat up. ( p. 17)
F01176-10
Main work
–
Pull EFI control unit
1
off the holder and hang to the side.
F01177-10
–
Remove screws
2
.
–
Remove screws
3
.
– Lower the license plate holder and hang the tail light to the
side.
Info
Pay attention to the cable of the tail light.

KTM Freeride 250 F Specifications

General

Bore x Stroke	78 mm x 52.3 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP Xplor PDS shock absorber
Seat Height	915 mm
Compression Ratio	12.8:1
ABS	No
Engine Type	Single cylinder, 4-stroke
Displacement	249.91 cc
Front Brake	Disc brake, 260 mm
Fuel Tank Capacity	5.5 liters
Fuel System	Electronic fuel injection (EFI)
