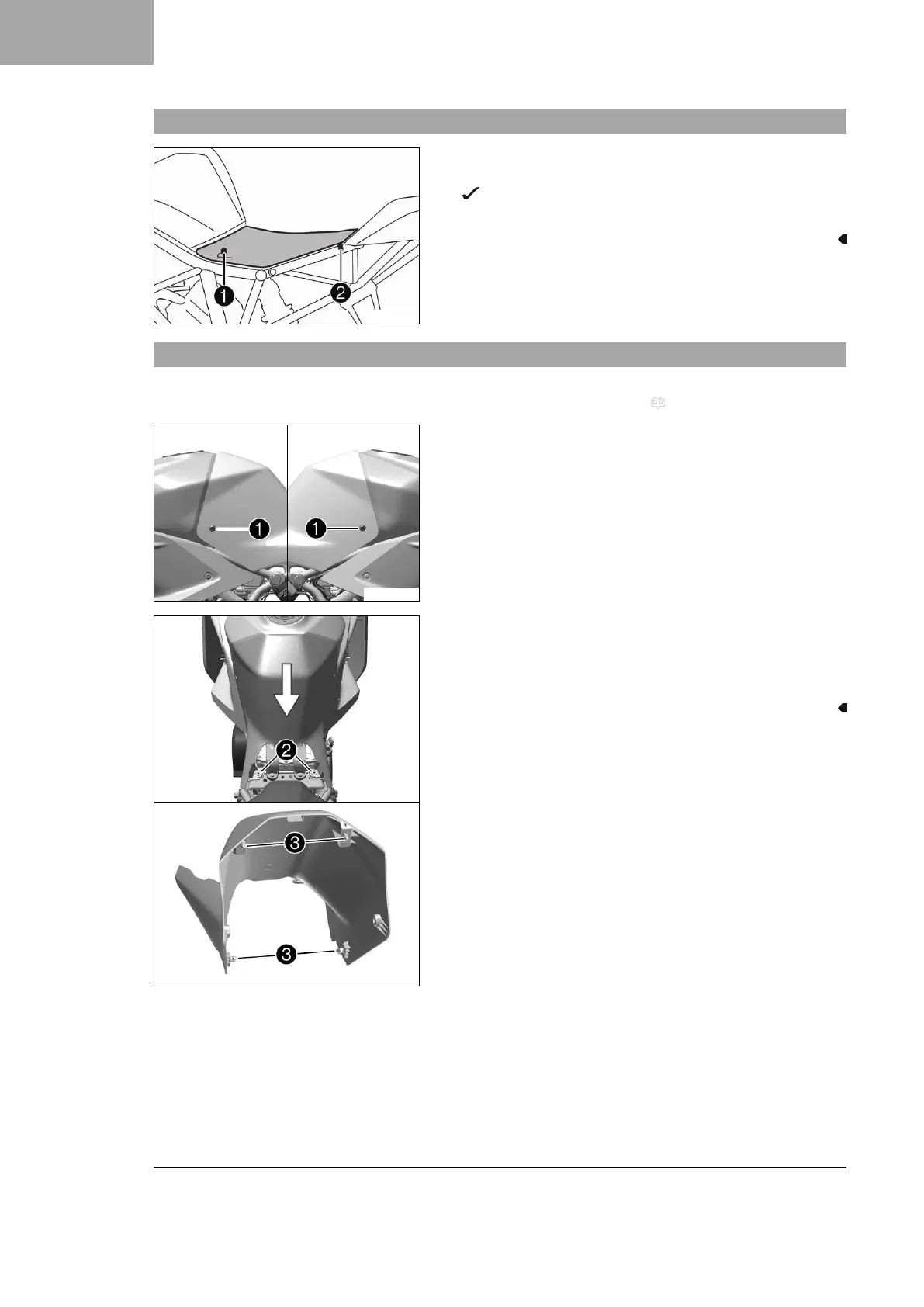

3.6 Mounting the front rider's seat
H04979-10
–
Attach recesses
1
on the front rider's seat to the fuel tank,
push the front rider's seat forward, and lower at the rear.
The pin
2
locks audibly in place.
– Check that the front rider's seat is mounted correctly.
3.7 Removing the fuel tank cover
Preparatory work
– Remove the front rider's seat. ( p. 7)
V02492-10
Main work
–
Remove screws
1
.
V02493-10
–
Pull the fuel tank cover from holding lugs
2
.
–
Pull holding lugs
3
out of the brackets.
– Pull the fuel tank cover off towards the rear and take off
upwards.
