WORK 3
7

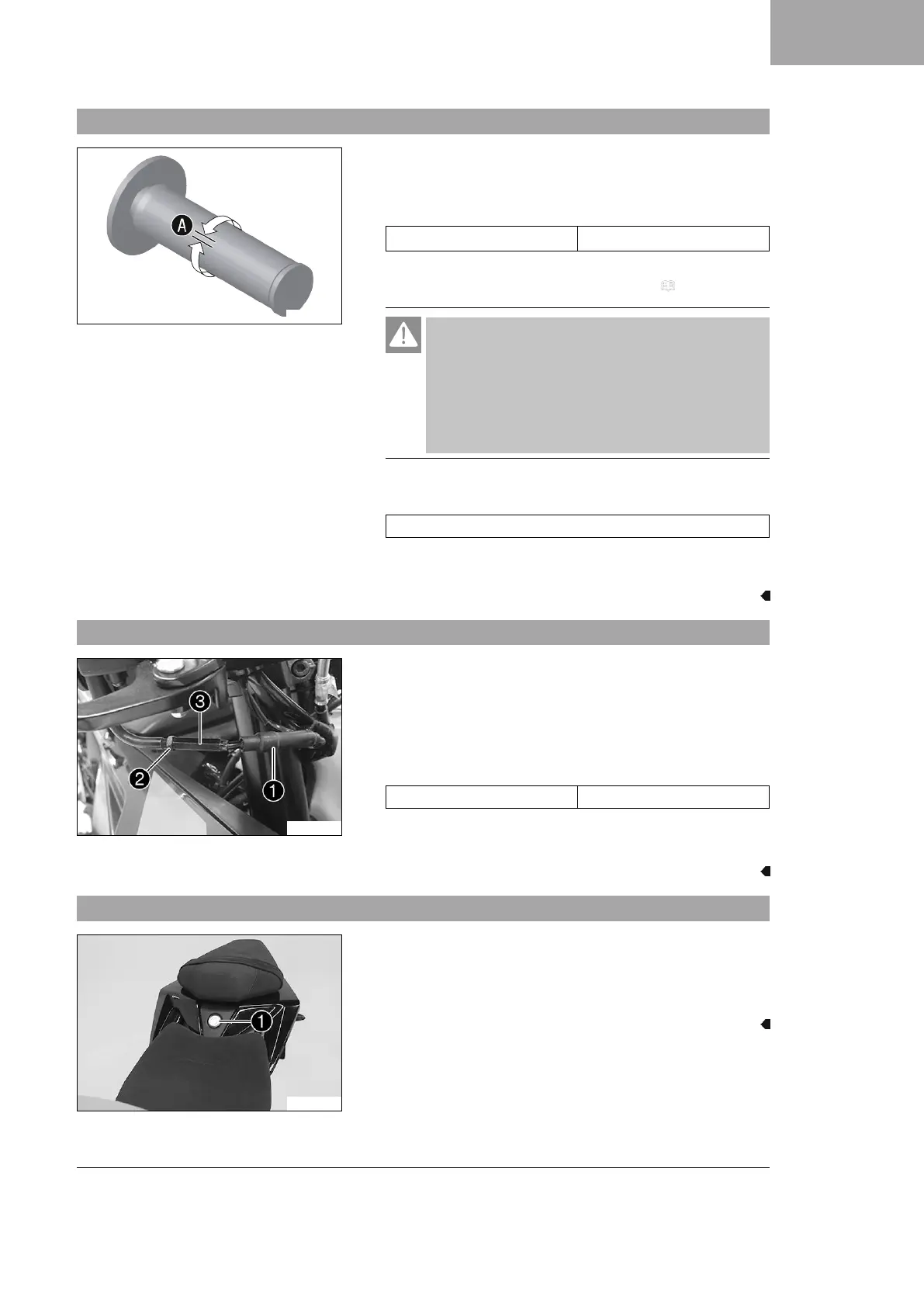

3.3 Checking the play in the throttle cable
400192-11
– Check the throttle grip for smooth operation.
– Move the handlebar to the straight-ahead position. Turn the
throttle grip back and forth slightly and determine the play in
throttle cable
A
.
Throttle cable play
A
3 … 5 mm (0.12 … 0.2 in)
» If the throttle cable play does not meet the specified value:
– Adjust the play in the throttle cable. ( p. 7)
Danger
Danger of poisoning Exhaust gases are toxic and inhal-
ing them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation
when running the engine.
– Use effective exhaust extraction when starting or
running the engine in an enclosed space.
– Start the engine and let it run at idle speed. Move the handle-
bar to and fro over the entire steering range.
The idle speed must not change.
» If the idle speed changes:
– Check the throttle cable routing.
3.4 Adjusting the play in the throttle cable
V02544-10
– Move the handlebar to the straight-ahead position.
–
Push back sleeve
1
.
–
Loosen lock nut
2
.
– Adjust the play in the throttle cable by turning barrel
adjuster
3
.
Guideline
Play in throttle cable 3 … 5 mm (0.12 … 0.2 in)
–
Tighten lock nut
2
.
–
Slide on sleeve
1
.
3.5 Removing the front rider's seat
V02660-10
–
Insert the ignition key in seat lock
1
and turn it clockwise.
– Raise the rear of the front rider's seat, pull it toward the rear,
and remove it upward.
– Remove the ignition key from the seat lock.
