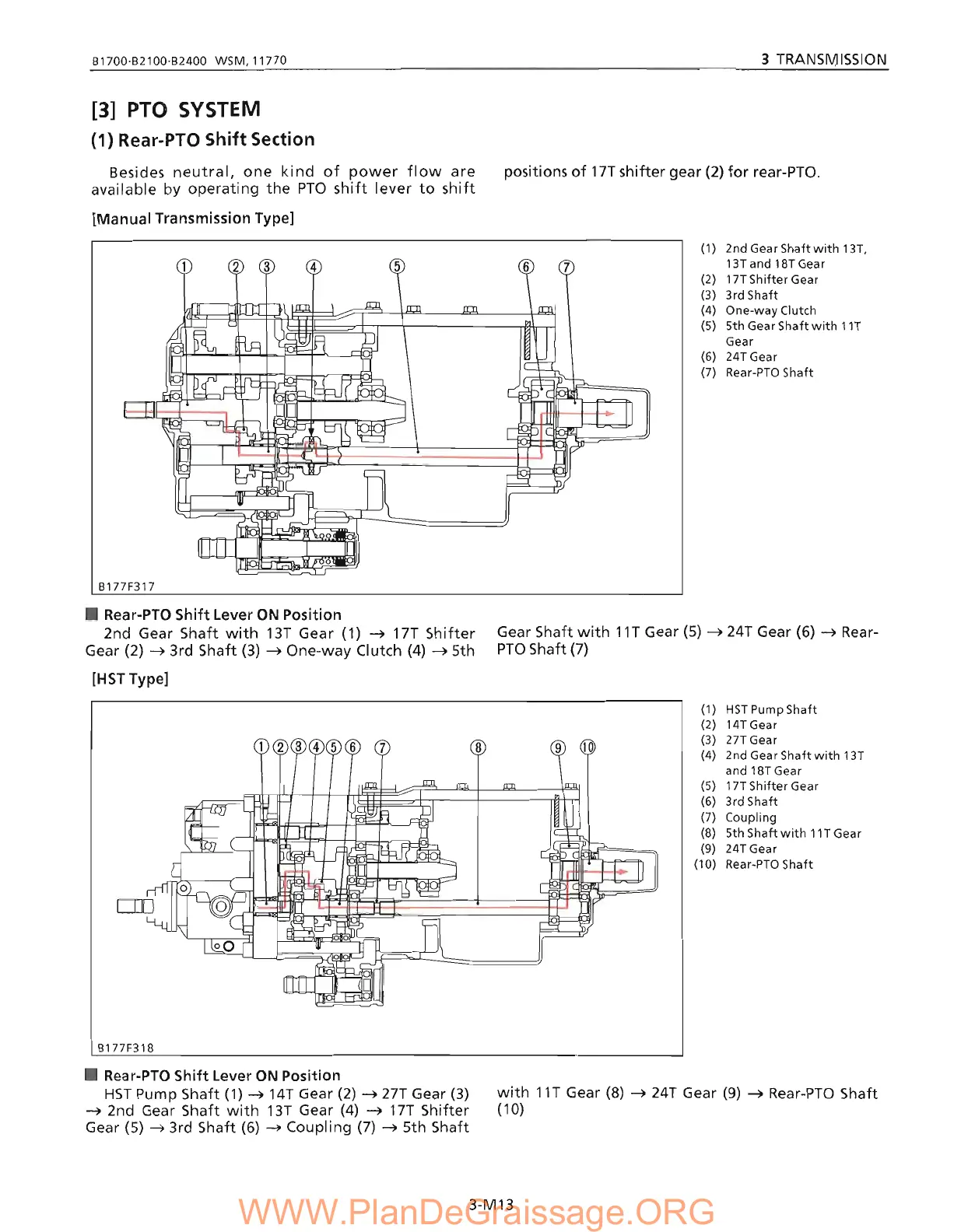

[3] PTO SYSTEM
(1) Rear-PTO Shift Section
Besides neutral, one kind of power flow are
available by operating the PTa shift lever to shift
[Manual Transmission Type]
3 TRANSMISSION
positions
of 17T shifter gear (2) for rear-PTa.
B177F317
(1) 2nd
GearShaftwith 131.
13T and 18T Gear
(2) 17T Shifter Gear
(3) 3rd Shaft
(4) One-way Clutch
(5) 5th Gear Shaft
with 11 T
Gear
(6) 24T Gear
(7) Rear-PTO Shaft
• Rear-PTO Shift Lever ON Position
2nd Gear Shaft
with 13T Gear (1) ~ 17T Shifter
Gear (2) ~ 3rd Shaft (3) ~ One-way Clutch (4) ~ 5th
[HST Type]
Gear Shaft
with 11T Gear (5) ~ 24T Gear (6) ~ Rear-
PTaShaft
(7)
B177F31B
(1)
HSTPumpShaft
(2) 14T Gear
(3) 27T Gear
(4) 2nd Gear Shaft
with 13T
and 18T Gear
(5) 17T Shifter Gear
(6) 3rd Shaft
(7) Coupling
(8) 5th Shaft
with 11T Gear
(9) 24T Gear
(10) Rear-PTO Shaft
• Rear-PTO Shift Lever ON position
HST Pump Shaft (1) ~ 14T Gear (2) ~ 27T Gear (3)
~ 2nd Gear Shaft with 13T Gear (4) ~ 17T Shifter
Gear (5)
~ 3rd Shaft (6) ~ Coupling (7) ~ 5th Shaft
with 11T Gear (8) ~ 24T Gear (9) ~ Rear-PTa Shaft
(10)
3-MB
