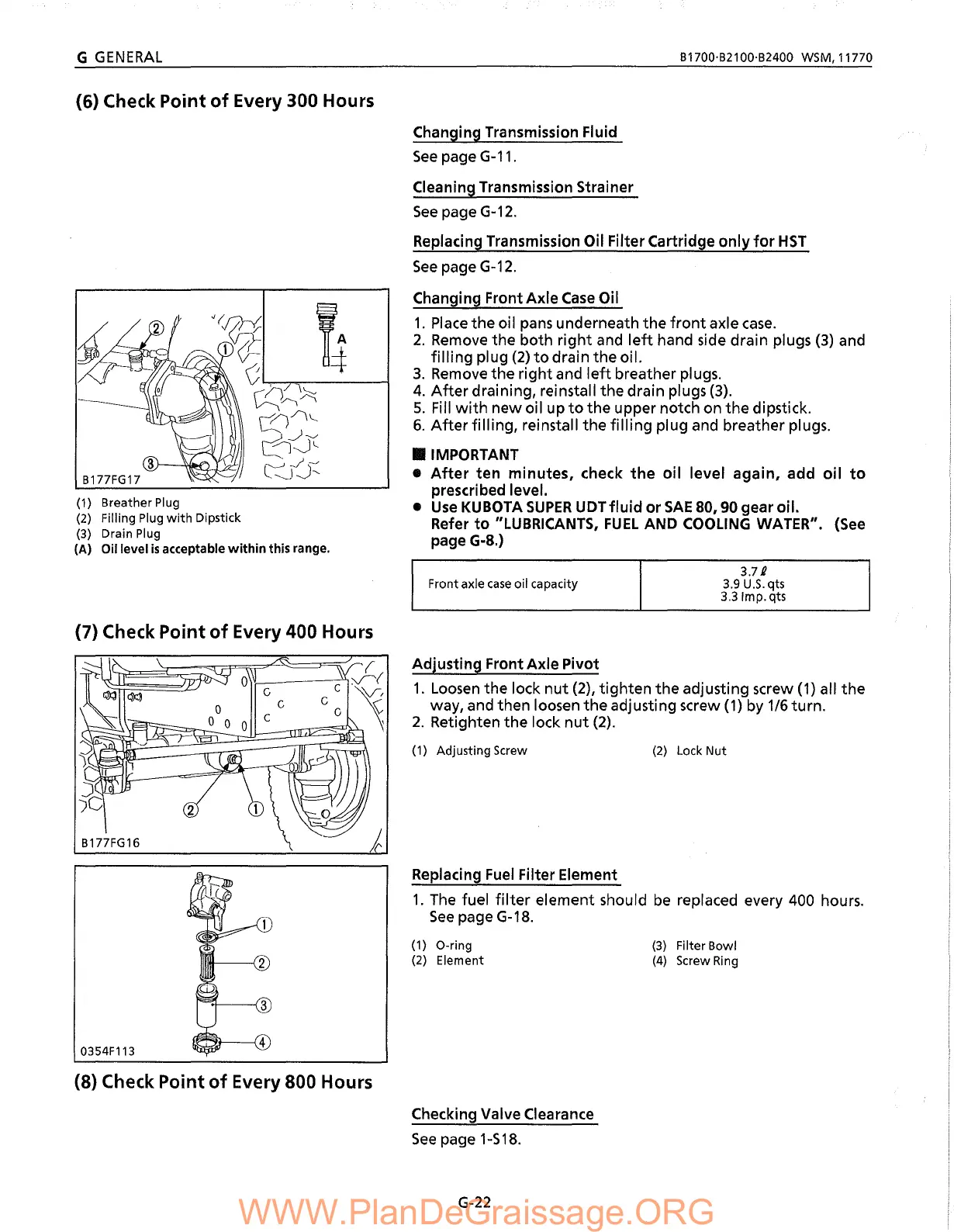

(6) Check Point
of
Every 300 Hours
(1)
Breather
Plug
(2)
Filling
Plug
with
Dipstick
(3)
Drain
Plug
(A) Oil level
is
acceptable
within
this range.
B1700·B2100·B2400 WSM,11770
Changing Transmission Fluid
See
page G-11.
Cleaning Transmission Strainer
See
page G-12.
Replacing Transmission Oil Filter Cartridge
only
for
HST
See
page G-12.
Changing Front Axle
Case
Oil
1.
Place
the
oil pans underneath
the
front
axle
case.
2.
Remove
the
both
right
and
left
hand side drain plugs (3) and
filling
plug (2)
to
drain
the
oil.
3.
Remove
the
right
and
left
breather plugs.
4.
After
draining, reinstall
the
drain plugs (3).
5.
Fill
with
new
oi I
up
to
the
upper notch on
the
dipstick.
6.
After
filling,
reinstall
the
filling
plug and breather plugs.
_IMPORTANT
•
After
ten
minutes,
check
the
oil
level
again,
add
oil
to
prescribed level.
•
Use
KUBOTA
SUPER
UDT
fluid
or
SAE
80, 90 gear oil.
Refer
to
"LUBRICANTS,
FUEL
AND
COOLING
WATER".
(See
page G-8.)
Adjusting
Front Axle Pivot
1.
Loosen
the
lock
nut
(2),
tighten
the
adjusting screw (1) all
the
way, and then loosen
the
adjusting screw (1) by 1/6
turn.
2.
Retighten
the
lock
nut
(2).
Replacing Fuel Filter Element
1.
The fuel
filter
element should be replaced every 400 hours.
See
page G-18.
(1)
O-ring
(3)
Filter Bowl
(2)
Element
(4)
Screw
Ring
(7) Check Point
of
Every 400 Hours
0354F113
(8) Check Point
of
Every 800 Hours
Front axle
case
oil capacity
(1)
Adjusting
Screw
3.71
3.9
U.S.
qts
3.3Imp. qts
(2)
Lock
Nut
Checking Valve Clearance
See
page
1-S18.
G-22
