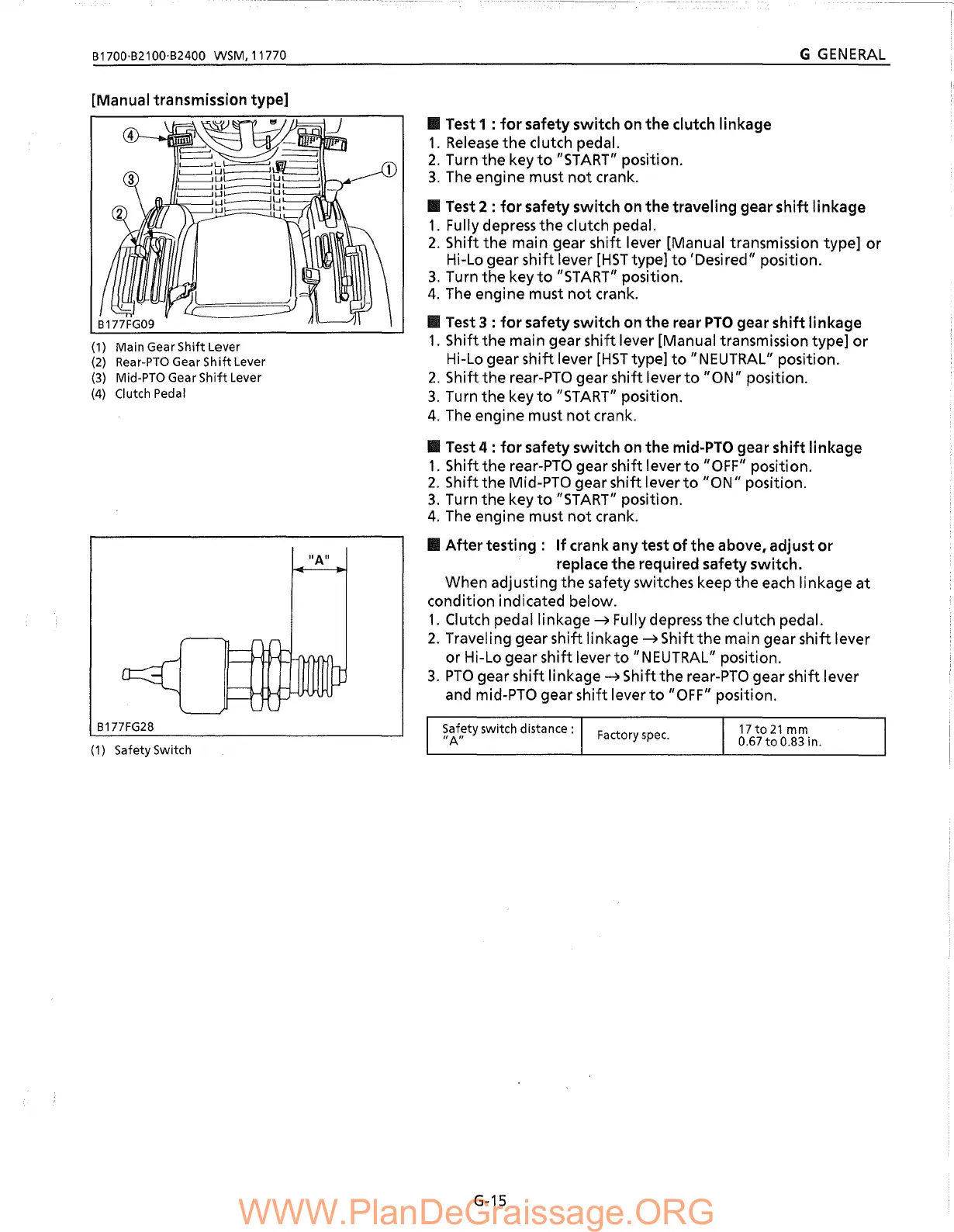

[Manual transmission type]
G GENERAL
(1) Main Gear Shift Lever
(2) Rear-PTa Gear
Shift Lever
(3) Mid-PTa Gear Shift Lever
(4) Clutch Pedal
IIA
II
III Test 1 : for safety switch on the clutch linkage
1. Release the clutch pedal.
2. Turn the key to "START" position.
3. The engine must not crank.
III Test 2 :
for safety switch on the traveling gear shift linkage
1. Fully depress the clutch pedal.
2. Shift the main gear shift lever [Manual transmission type] or
Hi-Lo gear shift lever [HSTtype] to 'Desired" position.
3. Turn the key to "START" position.
4. The engine must not crank.
III Test 3 :
for safety switch on the rear PTO gear shift linkage
1. Shift the main gear shift lever [Manual transmission type] or
Hi-Lo gear shift lever [HST type] to "NEUTRAL" position.
2. Shift the rear-PTO gear shift lever to "ON" position.
3. Turn the key to "START" position.
4. The engine must not crank.
III Test 4 :
for safety switch on the mid-PTO gear shift linkage
1. Shift the rear-PTO gear shift lever to" OFF" position.
2. Shift the Mid-PTO gear shift lever to "ON II position.
3. Turn the key to "START" position.
4. The engine must not crank.
III
After testing: If crank any test of the above, adjust or
replace the required safety switch.
When adjusting
the safety switches keep the each linkage at
condition indicated below.
1. Clutch pedal linkage ~ Fully depress the clutch pedal.
2. Traveling gear shift linkage ~ Shift the main gear shift lever
or Hi-Lo gear
shift lever to "NEUTRAL" position.
3. PTO gear shift linkage ~ Shift the rear-PTO gear shift lever
and mid-PTO gear shift lever
to" OFF" position.
B177FG28
(1) Safety Switch
~~,7ty switch distance: Factory spec.
G-15
17to 21 mm
0.67 to 0.83 in.
