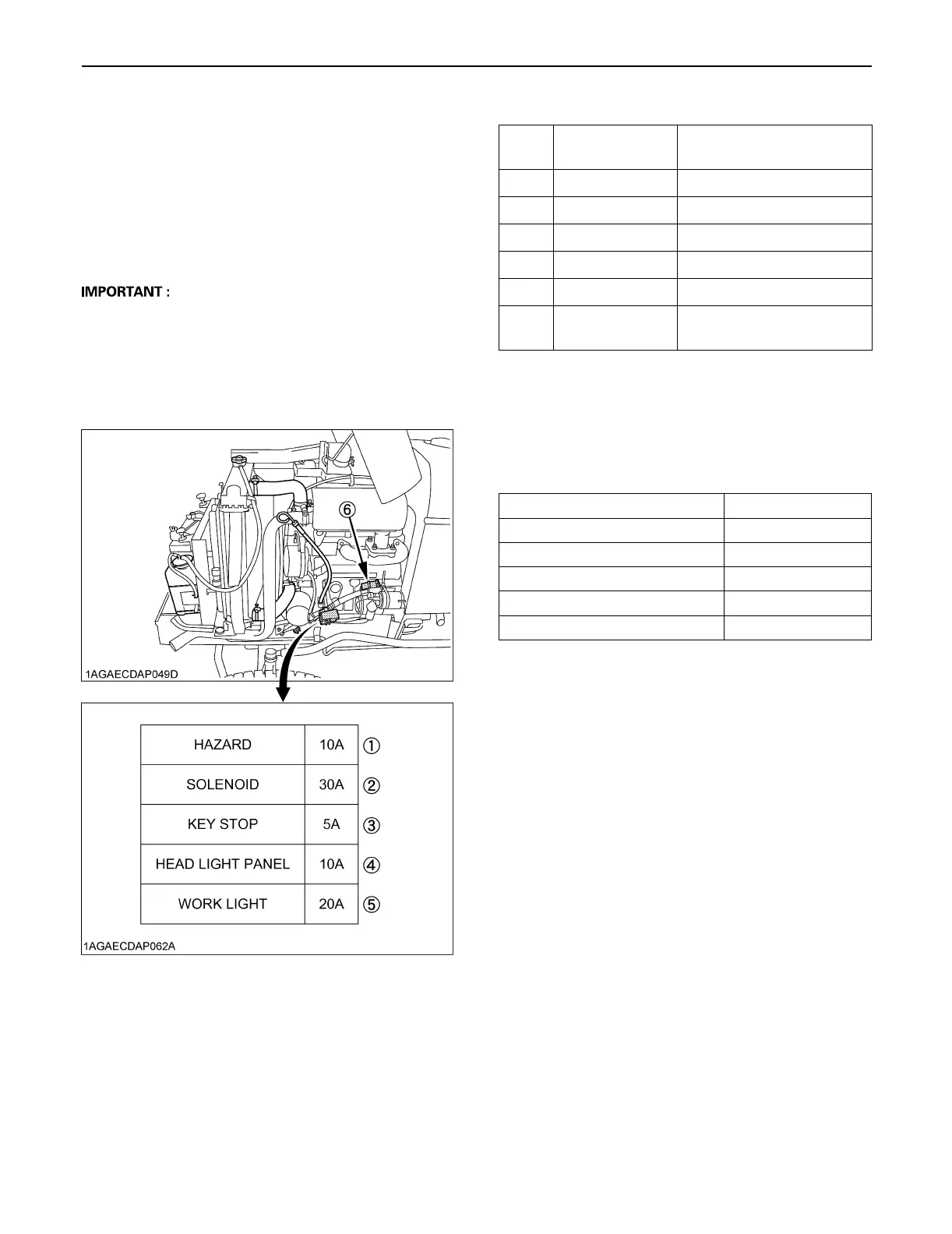

69PERIODIC SERVICE
BReplacing Fuse
The tractor electrical system is protected from potential
damage by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
If any of the fuses should blow, replace with a new one of
the same capacity.
A Before replacing a blown fuse, determine why the fuse
blew and make any necessary repairs. Failure to
follow this procedure may result in serious damage to
the tractor electrical system. Refer to the
"TROUBLESHOOTING" section of this manual or your
local KUBOTA Dealer for specific information dealing
with electrical problems.
C Protected circuit
BReplacing Light Bulb
1. Head light
Take the bulb out of the light body and replace with a
new one.
2. Other lights
Detach the lens and replace the bulb.
FUSE
No.
CAPACITY
(A)
Protected circuit
(1) 10 HAZARD
(2) 30 SOLENOID
(3) 5 KEY STOP
(4) 10 HEAD LIGHT PANEL
(5) 20 WORK LIGHT
(6) Slow blow fuse
Check circuit against wrong
battery connection
Light Capacity
Head light 23W
Tail light 8W
Turn signal / Hazard light 23W and 23W
Instrument panel light 1.7W
Hazard light switch indicator 0.6W
