PERIODIC SERVICE44
ENGLISH
6. Double-checking
(1) Double-check to see if the couplers are reinserted
deep enough.
(2) Using the clamps, secure the cables and cords to
keep them out of contact with the bearing and
rotor.
(3) Retighten the cleaner cover lock screws.
M6 x 12 mm lock screw tightening torque:
7.84 to 11.8 N-m (0.8 to 1.2 kgf-m)
(4) Trial-run the generator under no load to make
sure there is nothing unusual. If anything is
unusual, remove its cause.
FUSE
The electrical system is protected from potential damage
by fuses.
A blown fuse indicates that there is an overload or a short
circuit somewhere in the electrical system.
If any of the fuses should blow, replace with a new one of
the same capacity.
A Before replacing a blown fuse, determine why the fuse
blew and make any necessary repairs. Failure to
follow this procedure may result in serious damage to
the generator electrical system. Refer to
“TROUBLESHOOTING“ section of this manual or
your local KUBOTA Dealer for specific information.
[J106, J107, J108, J110, J310, J313]
[Engine model : Z482, D722]

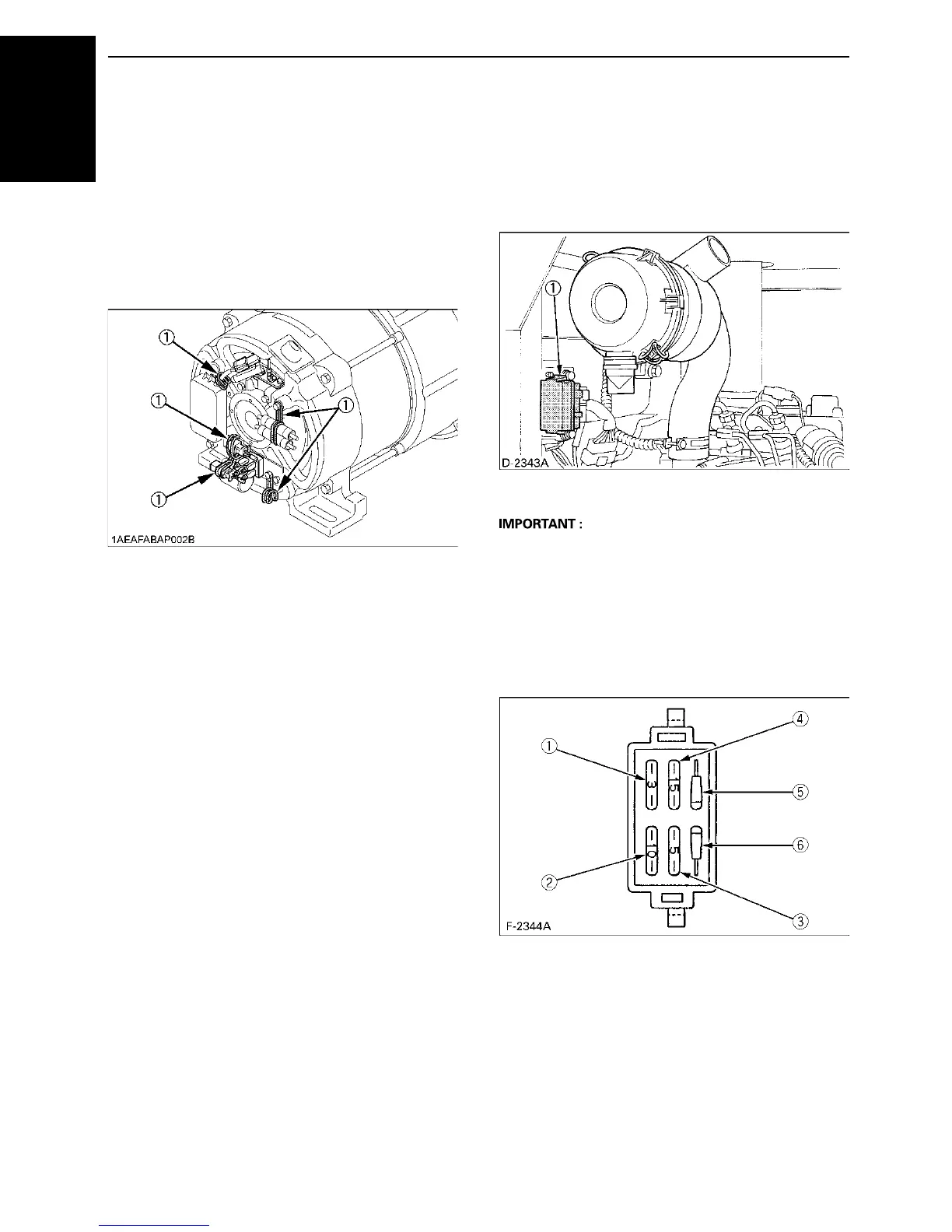

(1) Clamp
(1) Fuse box
(1) Fuse 3A
(2) Fuse 10A
(3) Fuse 5A
(4) Fuse 15A
(5) Fuse 15A
(6) Fuse 10A
: External connection terminal block
: AC (Accessory Line)
: Glow
: Solenoid
: (spare)
: (spare)
To Next Page
