9INSTRUMENT PANEL AND CONTROLS

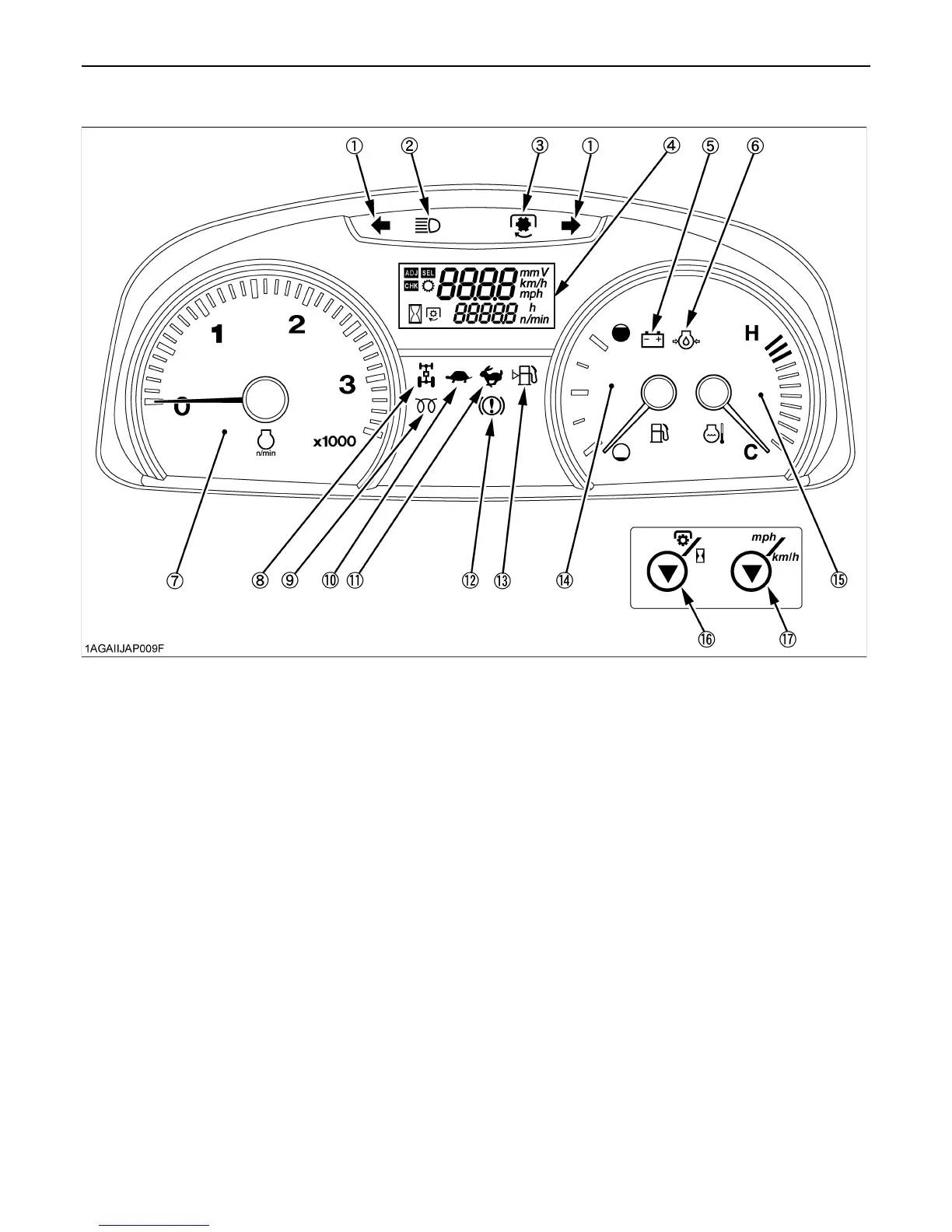

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Hazard / Turn signal indicator ............................ 20 (10) Pilot lamp (LOW)............................................ 23
(2) High beam indicator ........................................... 19 (11) Pilot lamp (HIGH)............................................ 23
(3) PTO clutch indicator........................................... 36 (12) Parking brake / Brake oil indicator ..................27
(4) Liquid crystal display .......................................... 29 (13) Fuel level indicator ......................................... 27
(5) Electrical charge indicator .................................. 27 (14) Fuel gauge...................................................... 28
(6) Engine oil pressure indicator .............................. 27 (15) Coolant temperature gauge............................ 28
(7) Tachometer ....................................................... 28 (16) PTO / Hour meter select switch....................... 29
(8) 4WD indicator .................................................... 25 (17) Travel speed select switch.............................. 29
(9) Heater indicator ................................................. 16
