MAINTENANCE
When frequent fuse failures occur, it usually
indicates a short circuit or an overload in the
electrical system.
1.Turn Main switch off, check for blown Fuse.
2.Only replace with a fuse of specified
capacity.
3.Identify the cause of a blown fuse before
replacing it.
Fuse(Dink-R125)
WARNING
Never use a fuse with a different rating
from that specified. Serious damage to
the electrical system or a fire may result,
causing a dangerous loss of lights or
engine power.
+
-

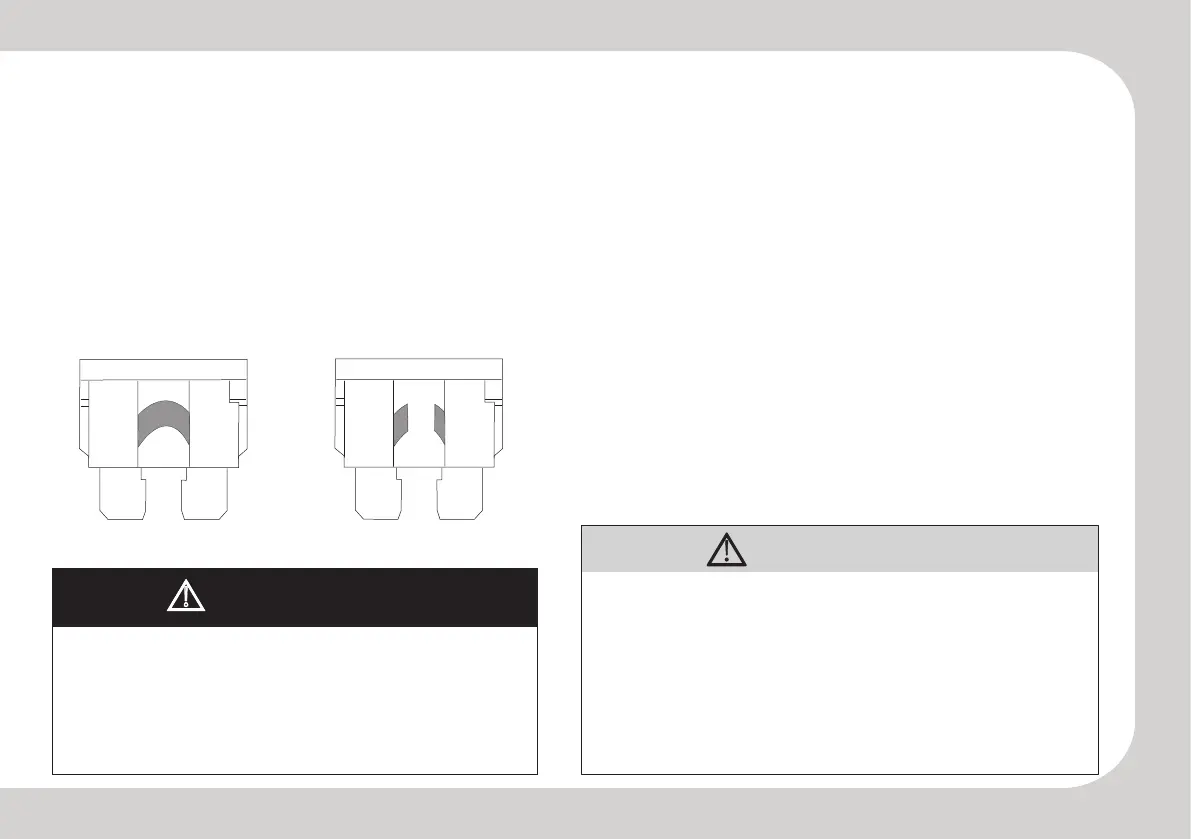

Good
Blown
Fuses list
All functional fuses are located in the fuse
box, there's a sticker on the back of the fuse
box cover. Fuse should be inserted according
to this sticker.
FUSE A (15A): FR/RR turn signal, USB Stop
light, Meter,
(25A): Fuel relay, Starter relay, Head
light, Light controller.
(30A):Charging,
,
FUSE B
ECU Relay. Horn,
FUSE C
 Never use a fuse with a different rating from that
specified. Serious damage to the electrical system or a
fire may result, causing a dangerous loss of lights or
engine power.
If the new fuse blows in a short time, consult the
KYMCO dealer immediately.
 Only replace electrical devices (lights, meters) with ones of
specified ratings.
 If using an inadequate fuse, it may be blown easily or
battery loading may become imbalance.
Avoid frontal strong water jet when cleaning the scooter.
CAUTION
●
●
●
Only replace electrical devices (lights,
meters) with ones of specified ratings.
If using an inadequate fuse, it may be
blown easily or battery loading may
become imbalance.
Avoid frontal strong water jet when
cleaning the scooter.
