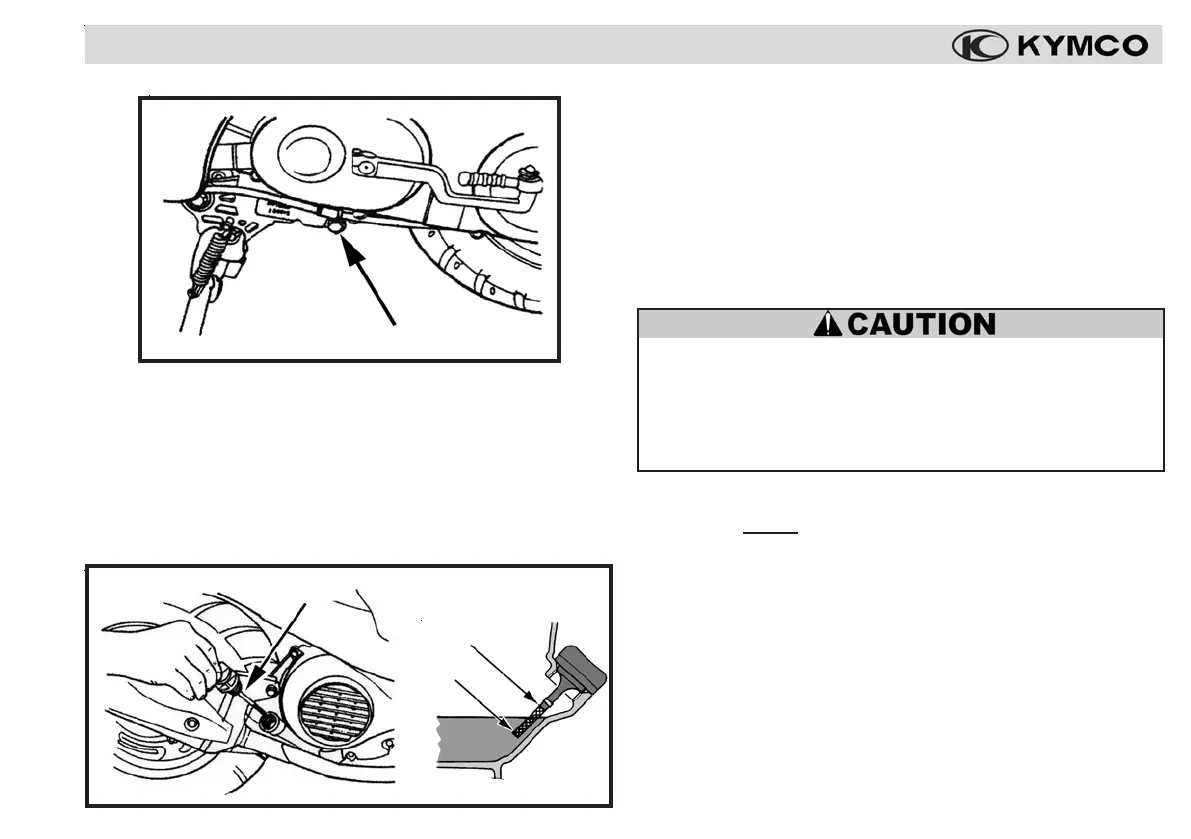

1. Remove the oil filler/dipstick 2 from the right crankcase cover.
2. Place a suitable container (drain pan) under the left crank-
case. Remove the drain bolt 1 to drain the oil.
11
11
1
NOTE: When draining the engine oil, remove the oil
strainer from the bottom of the crankcase and clean the
screen.
3. Replace the drain bolt 1. Tighten it to the specified torque.
Do not overfill the engine with oil. Overfilling the en-
gine can cause oil leaks and/or oil contamination of
the air filter element. Always make sure the oil level is
above the "L" mark but not higher than the "F" mark
on the dipstick.
L
F
22
22
2
Engine oil capacity: 0.85 qt (0.8 L)
Engine oil viscosity: SAE 15W-40
5. Wipe the dipstick 2 off with a clean cloth and reinstall it in its
hole, but
do not thread it into the engine case. Push the
dip stick to the engine case until it touches the case.
6. Remove the dip stick and visually inspect the oil level on the
stick. The engine oil level should be above the "L" mark but
not higher than the "F" mark. Add or remove oil as required.
7. Replace the oil filler/dipstick and tighten it securely .
MAINTEN ANCE
Oil drain plug torque: 18 lb-ft (25 N-m)
4. Add engine oil through the oil filler/dipstick hole.
NOTE: After changing the engine oil, the oil service indi-
cator light should be reset (see page 13).
