Kyocera ECOSYS P3055dn Service Manual

2T6/2T7/2T8/2T9
1-5-30
(2) Detaching and refitting the paper feed driving motor unit
Procedure
1. Remove the right upper cover.
(See page 1-5-4)
2. Remove the right lower cover.
(See page 1-5-4)
3. Pull the connectors of clutches and
solenoid out.
4. Remove three screws and then remove
the paper feed driving motor unit.
5. Check or replace the paper feed driving
motor unit and refit all the removed
parts.

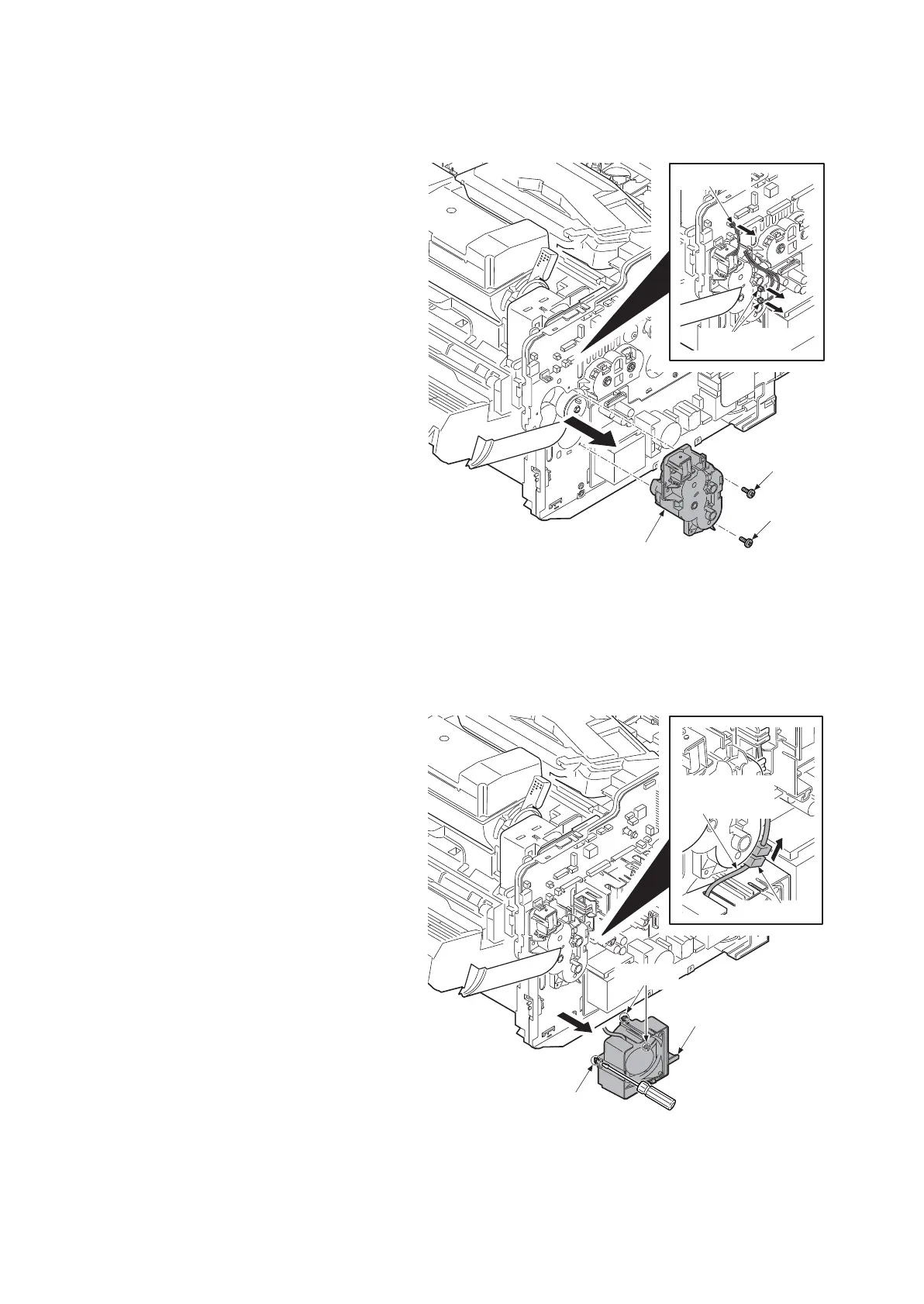

Figure 1-5-49
(3) Detaching and refitting the power source fan motor
Procedure
1. Remove the right upper cover.
(See page 1-5-4)
2. Remove the right lower cover.
(See page 1-5-4)
3. Pull the connector of the power source
fan motor wire out.
4. Release three hooks using flat-blade
screwdriver and then remove the power
source fan motor assembly.
5. Check or replace the power source fan
motor and refit all the removed parts.
Figure 1-5-50
Connector
Connectors
Paper feed
driving motor unit
Screw
Screw
Hook
Hooks
Connector
Power source fan
motor assembly
Power source
fan motor wire

Kyocera ECOSYS P3055dn Specifications

General

Wi-Fi	-
Security algorithms	HTTPS, IPPS, IPSEC, SSL/TLS
Web-based management	Yes
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
Color	No
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	6.6 s
Print speed (black, normal quality, A4/US Letter)	55 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter XL24E, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (off)	0.9 W
Power consumption (ready)	11 W
Power consumption (printing)	675 W
Noise level (ready)	27.1 dB
Maximum internal memory	2560 MB
Sound pressure level (printing)	54.7 dB
Sound pressure level (quiet mode)	50.4 dB
Display	LED
Certification	TÜV-GS, CE
Product color	Black, White
Display number of lines	5 lines
Paper input type	Cassette, Paper tray
Total input capacity	500 sheets
Total output capacity	- sheets
Maximum input capacity	2600 sheets
Maximum number of input trays	6
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 216 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 120 g/m²
Maximum media length	915 mm
Paper tray media types	Banner, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	2
Other operating systems supported	Android, iOS
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	416 mm
Width	380 mm
Height	320 mm
