Kyocera ECOSYS P3055dn Service Manual

2T6/2T7/2T8/2T9
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP
tray paper feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed
paper to the transfer/separation section.
(1) Cassette paper feed section
The cassette can contain 500 sheets. The sheet from the cassette is pulled out by rotation of the pickup roller
and sent to the paper conveying section by rotation of the paper feed roller. Also the retard roller prevents mul-
tiple feeding of paper.

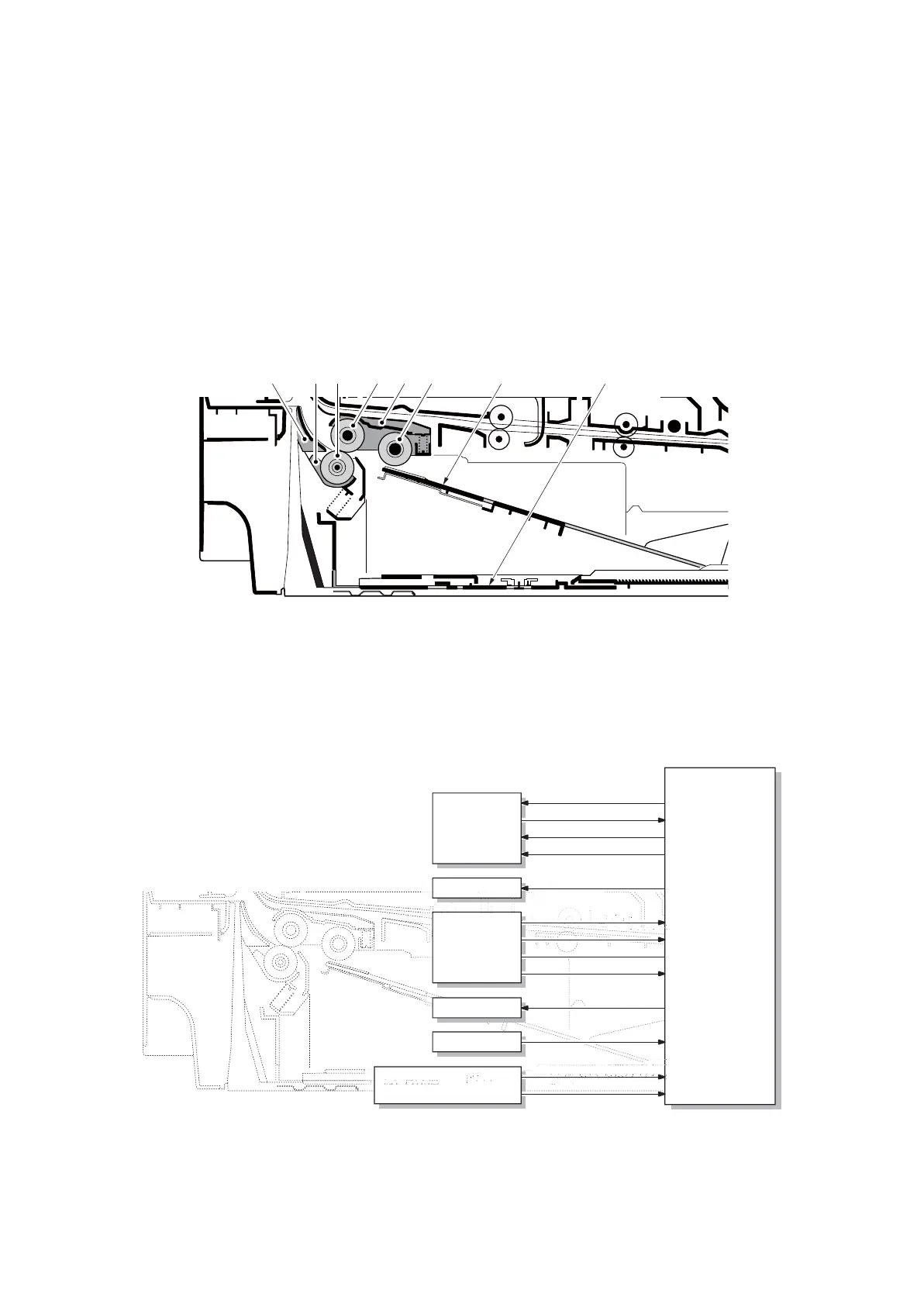

Figure 2-1-1 Cassette paper feed section
Figure 2-1-2 Cassette paper feed section block diagram
*1: 60/55/50 ppm model only
7 8
4
51236
1. Paper feed roller
2. Pickup roller
3. Feed holder
4. Retard roller
5. Retard holder
6. Retard guide
7. Bottom plate
8. Cassette base
YC4-1
YC4-2
YC4-3
YC4-4
YC5-4
YC7-1
YC7-2
YC7-3
YC7-4
YC13-1
YC14-3
MMOTCW
MMOTRDYN
MMOTCLKN
MMOTONN
FEEDCLN
CAS3
CAS2
CASSET
CAS1
LIFTMOTOR
LSENS
6
5
4
3
PFCL
CSSW
MM
LM *1
LS *1
EPWB
YC19-11
PAPER SEN1N
HVPWB
YC19-10
P
APER SEN2N
PS1
PS2

Kyocera ECOSYS P3055dn Specifications

General

Wi-Fi	-
Security algorithms	HTTPS, IPPS, IPSEC, SSL/TLS
Web-based management	Yes
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
Color	No
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	6.6 s
Print speed (black, normal quality, A4/US Letter)	55 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter XL24E, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (off)	0.9 W
Power consumption (ready)	11 W
Power consumption (printing)	675 W
Noise level (ready)	27.1 dB
Maximum internal memory	2560 MB
Sound pressure level (printing)	54.7 dB
Sound pressure level (quiet mode)	50.4 dB
Display	LED
Certification	TÜV-GS, CE
Product color	Black, White
Display number of lines	5 lines
Paper input type	Cassette, Paper tray
Total input capacity	500 sheets
Total output capacity	- sheets
Maximum input capacity	2600 sheets
Maximum number of input trays	6
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 216 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 120 g/m²
Maximum media length	915 mm
Paper tray media types	Banner, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	2
Other operating systems supported	Android, iOS
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	416 mm
Width	380 mm
Height	320 mm
