2T6/2T7/2T8/2T9
1-2-1
1-2 Installation
1-2-1 Installation environment
1. Temperature: 10 to 32.5°C/50 to 90.5°F
2. Humidity: 15 to 80% RH
3. Power supply: 100 V AC 50/60 Hz, 11.4A
120 V AC 60 Hz, 9.5 A
220 - 240 V AC 50/60 Hz , 5.4 A
4. Power supply frequency: 50 Hz ±2%/60 Hz ±2%
5. Installation location
Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sun-
light or other strong light when removing paper jams.
Avoid locations subject to high temperature and high humidity or low temperature and low humidity; an
abrupt change in the environmental temperature; and cool or hot, direct air.
Avoid places subject to dust and vibrations.
Choose a surface capable of supporting the weight of the machine.
Place the machine on a level surface (maximum allowance inclination: 1°).
Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such
as mercury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic sol-
vents.
Select a well-ventilated location.
6. Allow sufficient access for proper operation and maintenance of the machine.

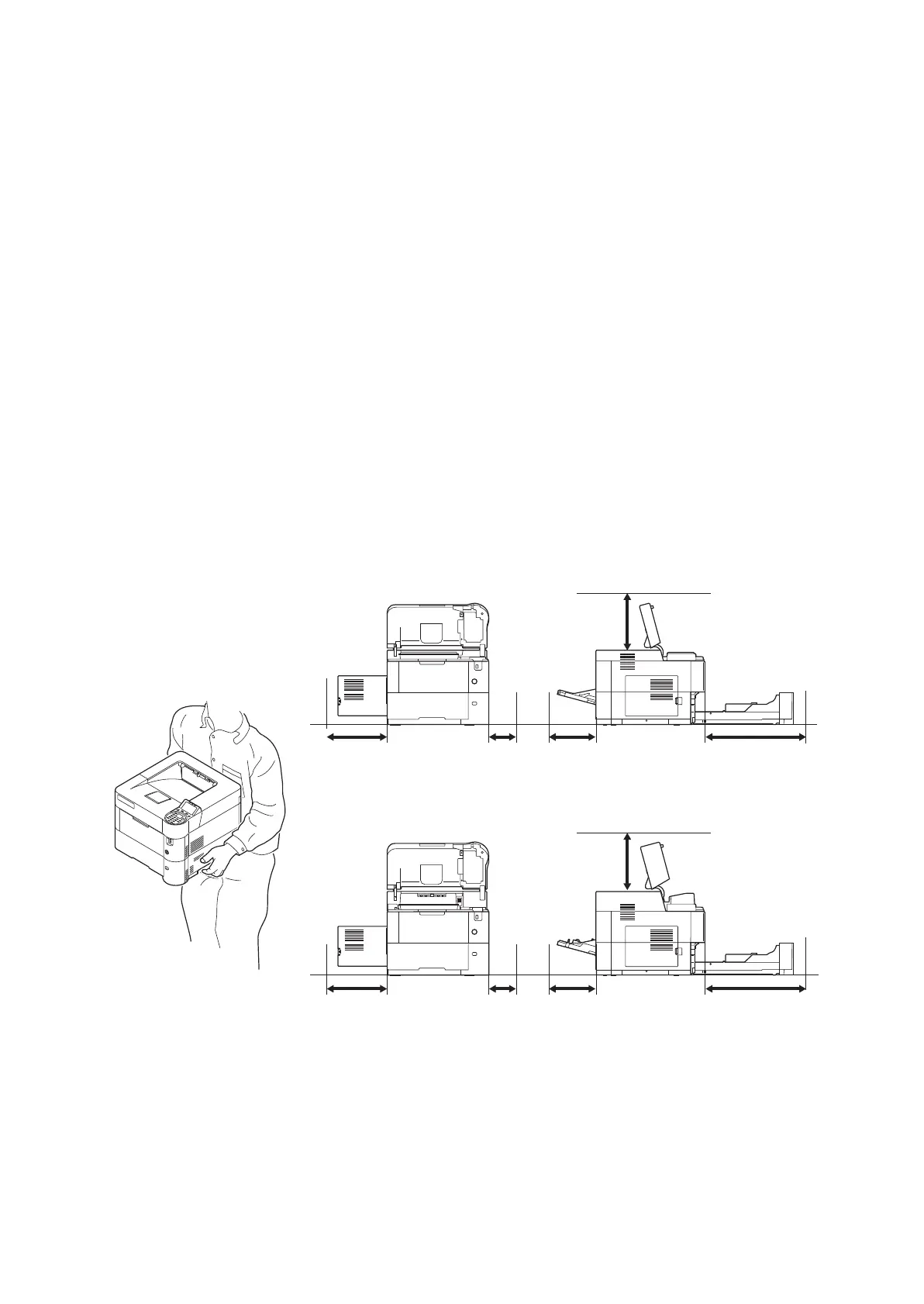

Figure 1-2-1
(45 ppm model)
(60/55/50 ppm models)
300 mm
11 13/16”
100 mm
3 15/16”
200 mm
7 7/8”
500 mm
19 11/16”
400 mm
15 3/4”
400 mm
15 3/4”
300 mm
11 13/16”
100 mm
3 15/16”
200 mm
7 7/8”
500 mm
19 11/16”
