Kyocera FS-C5150DN - Detaching and Refitting the Right Rear Cover, Right Cover and Right Lower Cover

2KT/2KV
1-5-5
(2) Detaching and refitting the right rear cover, right cover and right lower cover
Procedure
1. Remove the top cover (see page 1-5-3).
2. Slide the power source cover backward
and then remove it.

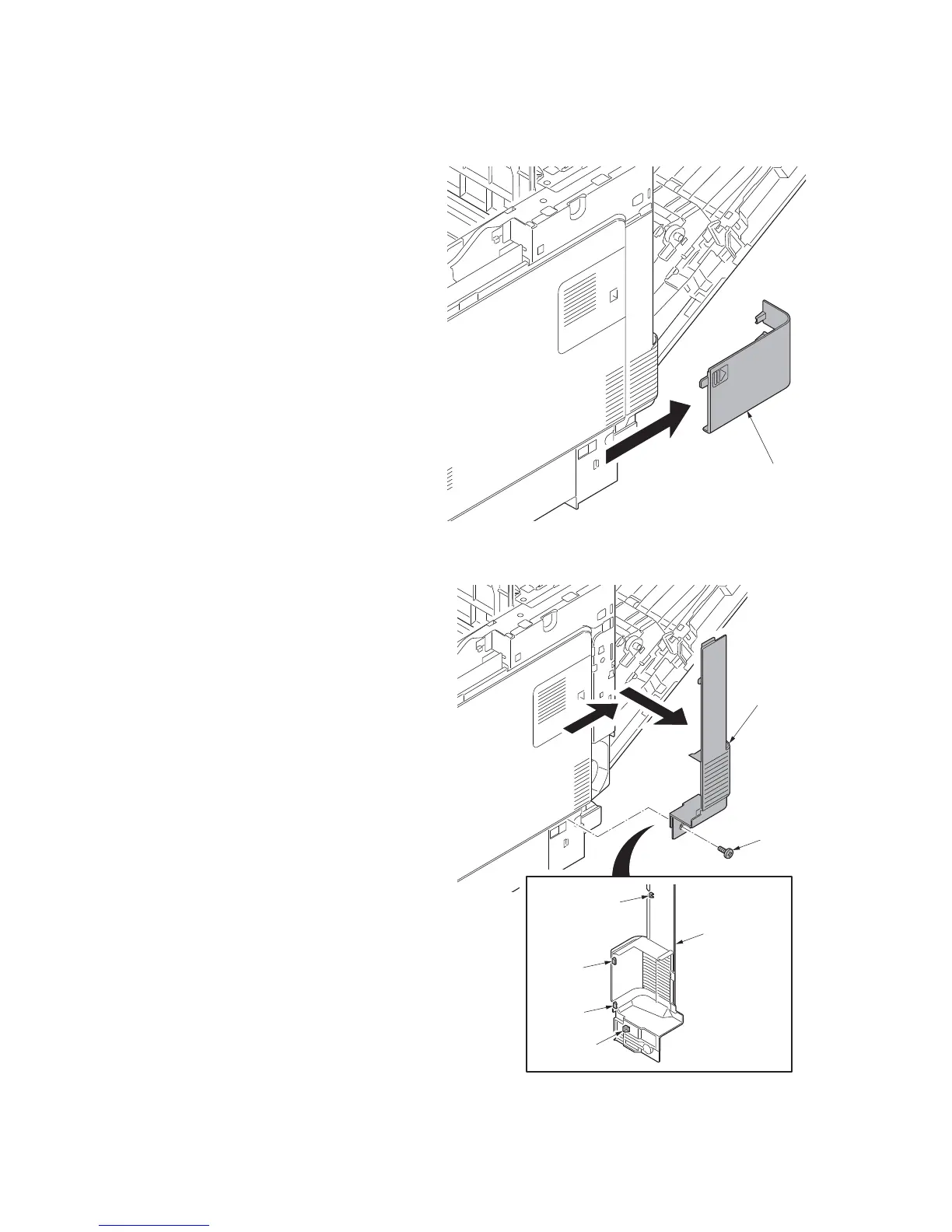

Figure 1-5-6
3. Remove the screw.
4. Release four hooks. Slide the right rear
cover backward and then remove it.
Figure 1-5-7
Power source
cover
Right rea
r
cover
Right rear
cover
Screw
Hook
Hook
Hook
Hook
