MAINS VOLTAGE ADJUSTMENT
POWER SUPPLY
The Switch Mode Power Supply has a switch to set the mains voltage range. It is located
at the rear of the game cabinet, and is accessed via the back door. Use a thin blade

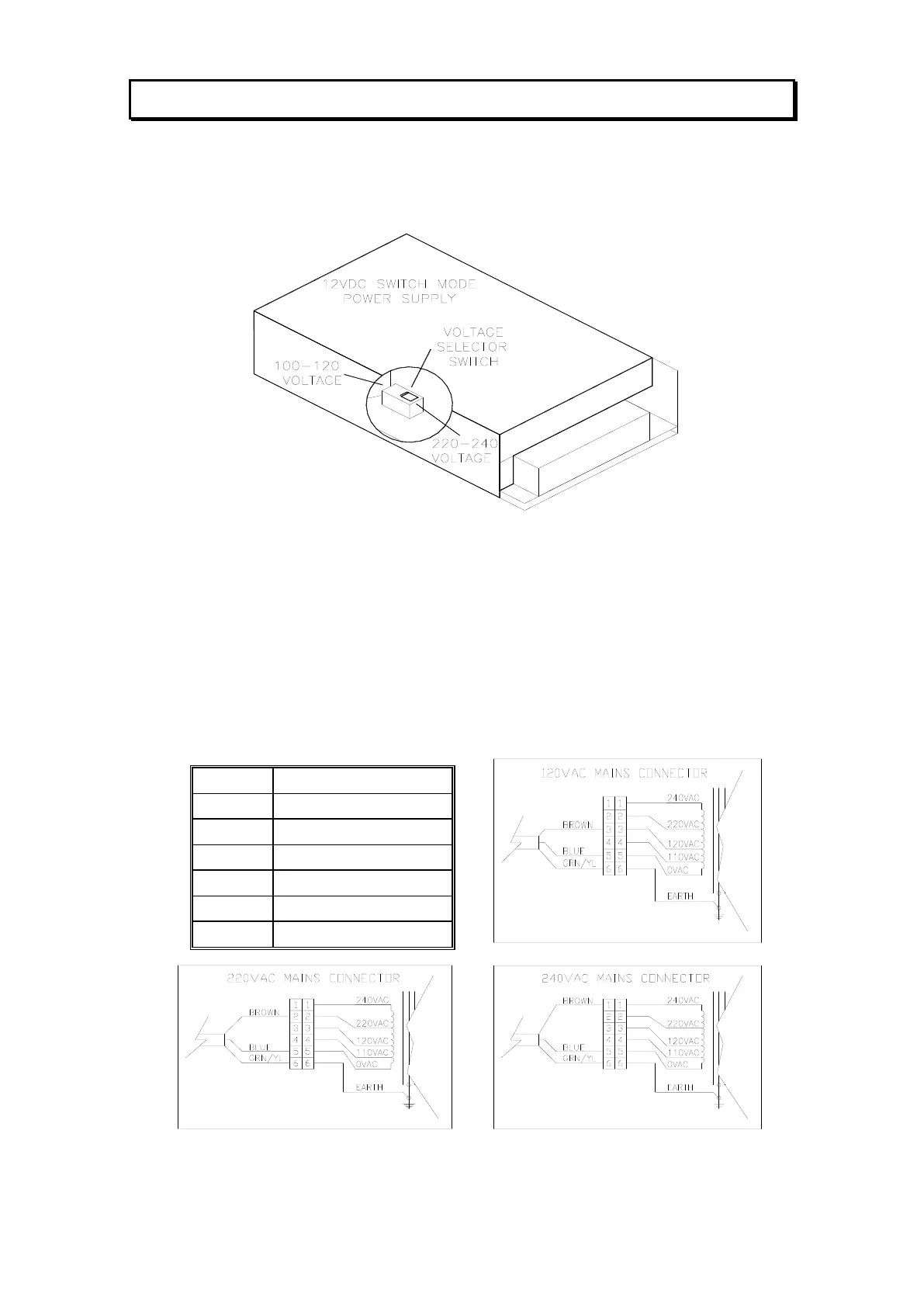

screwdriver to move the selector switch to the desired mains voltage (See Diagram
Below)
TRANSFORMER CONNECTORS
Locate the machine transformer(s) in the base of the cabinet. If unsure of the
location of the transformer(s), refer to Parts location diagram on page Error!
Bookmark not defined. of this manual. Change the position of the ‘ACTIVE’ or
‘HOT WIRE’ input, (marked brown on the diagram), to the position for the desired
mains voltage. (See Diagram Below)
6 WAY CONNECTOR PINOUT
PIN
FUNCTION
1
240VAC
2
220VAC
3
120VAC
4
110VAC
5
0VAV (NEUTRAL)
6
EARTH
