6 Commissioning
• Deactivate MAINTENANCE mode.
6.4.3 Perform a Calibration of the CO/H
2
Electrode
• Activate maintenance mode.
NOTICE
Access level 1 or 2 required!
The calibration can be performed by reference measurement using an external measuring de-
vice or using test gas in combination with a testing device (type 650R1015) of test gas at a
known CO
e
concentration.
For KS1D type 656R2000, a special adapter for test gas is necessary. (For the required test
gas adapter for the KS1D (Type 656R2000), see Chapter 7.1.4 Checking/Calibrating with Test
Gas).
Recommended test gas: 3 vol.% O
2
, 200 ppm CO, 100 ppm H
2
, in N
2
CO
e
value to be set: 300 ppm
A test gas without O
2
cannot be used for the calibration. The test gas must always contain O
2
in the % area.
For the KS1D-HT (Type 656R2015), a hose connection for calibration gas through which the
test gas (40 ... 60 l/h) can be input is available.
NOTICE
Calibration / checking with a reference measurement functions only with CO
e
values
>100 ppm.

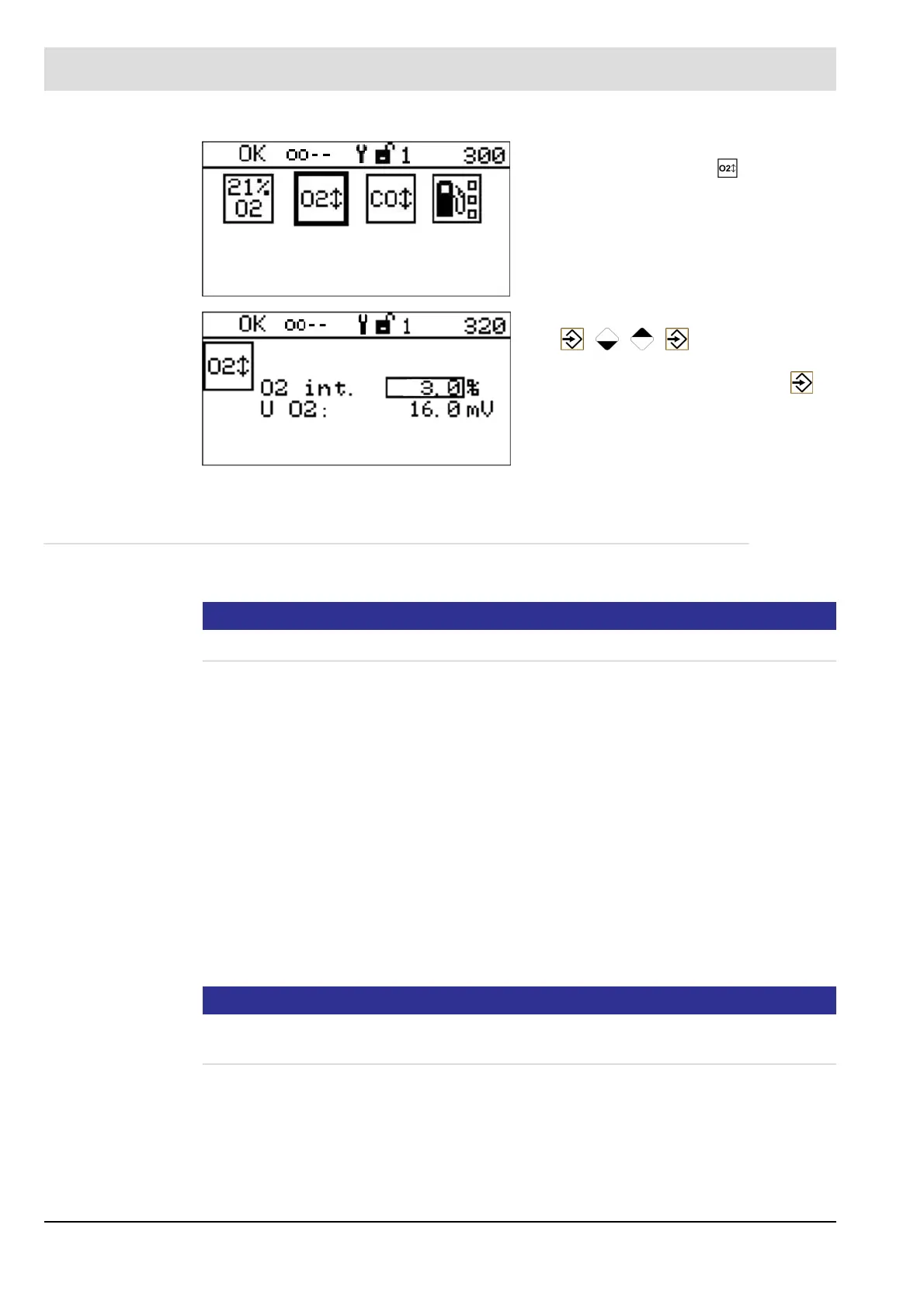

In Probe Calibration, select for O
2
cali-
bration.
With , , , change the O
2
val-
ues of the probe.
Within 5 s, confirm the calibration with
otherwise the calibration is not assumed.
