81
10 Options
LED status
10.5 External Connection
NOTICE
With an external connection of the LSB modules, this must also be supplied with external volt-
age. The module can be stacked without clearance between each module. After stacking 15
modules, start again with the external supply voltage.
1. Fit the LSB module at the desired position.
In the case of several modules, connect these with the help of the enclosed jumper plugs.
2. On the last module, connect the LSB connection resistance of 120 ..

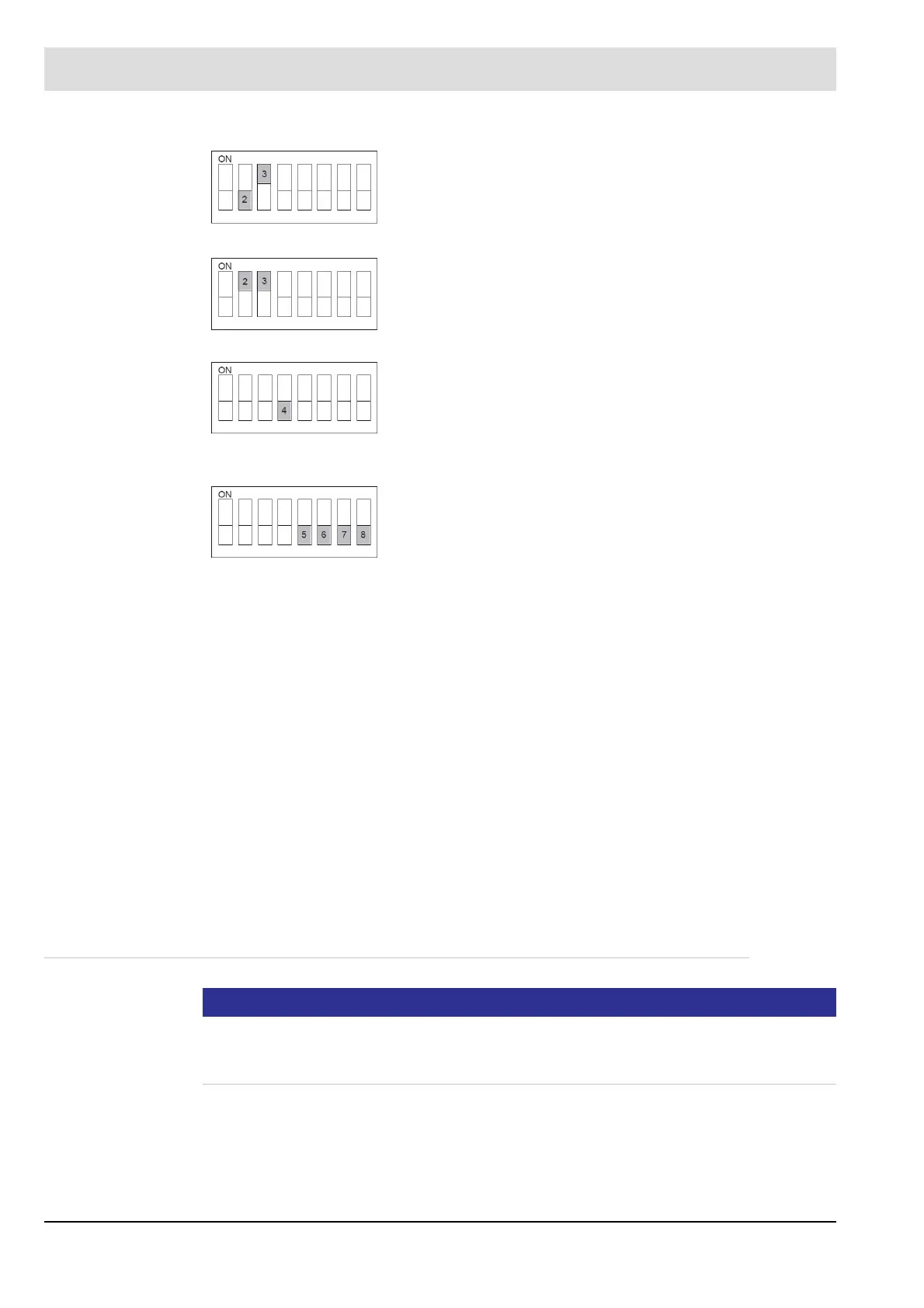

DIP switches 2 and 3
LSB device family 3
2 OFF 3 ON
DIP switches 2 and 3
LSB device family 4
2 ON 3 ON
DIP switch 4
Operating mode
OFF normal mode ON
Do not use the programming mode
DIP switch 5 - 8
Not assigned
LED 1 redERROR
OFF Normal mode
ON Initialisation not yet performed or not successfully ended (e.g., because
the module could not be initialised).
No message has been received for at least 3 seconds.
LED 2 greenPOWER
ON Module completely initialised and without error.
LED 3 greenCAN
OFF CAN controller in bus OFF. No communication possible.
FLASHING The CAN controller has discovered temporary faults.
After the problem is remedied, the LED continues too flash for a while.
ON CAN is ready for operation.
