Compact laser distance meter for measuring length,
area and volume
Read the operating instructions and the enclosed brochure
„Guarantee and additional notices“ completely. Follow the
instructions they contain. Safely keep these documents for
future reference.
!
Do not look directly into the beam. Lasers must be kept
out of reach of children. Never intentionally aim the device
at people.
!
Laser radiation!
Do not stare into the beam!
Class 2 laser
< 1 mW · 650 nm
EN 60825-1:2007-10
1.
2.
3.
4.
5.
6.

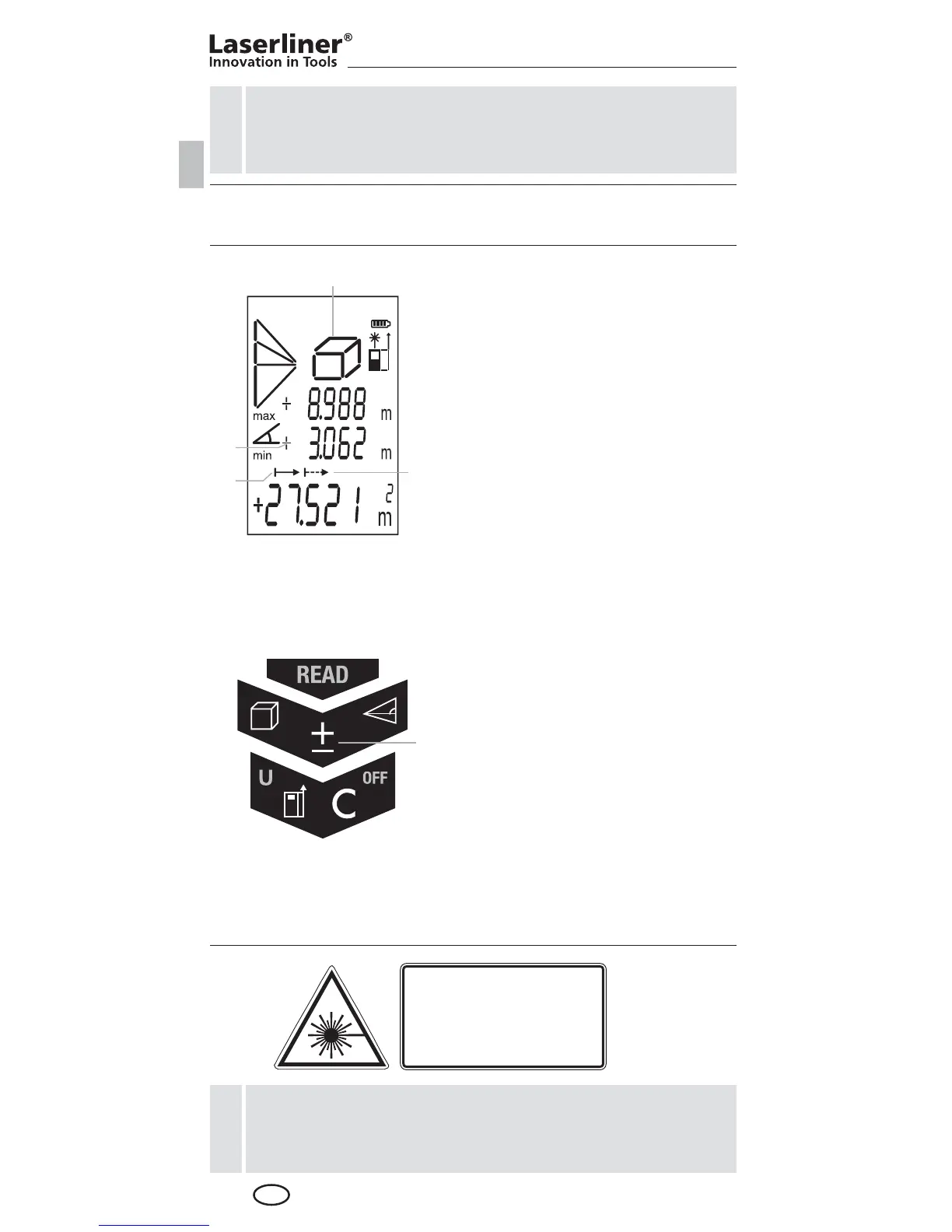

Device on / laser active / measure /
continuous measurement
Pythagoras 1, 2, 3
Addition / subtraction of
lengths
delete last measurement
values / device off
Reference - rear, front /
change unit of measure:
m / _‘ _“ / inch / ft
Area / area addition /
volume / length
DISPLAY:
KEYPAD:
a
b
c
d
e
f
g
h
i
Battery charge level
Reference - rear, front /
laser active
Intermediate values / min, max
values / angle at Pythagoras 1
in 2nd line
Continuous measurement
indicator
Measured values /
measurement results
Units: m / _‘ _“ / inch / ft
Length measurement display
Addition / subtraction display
Pythagoras 1, 2, 3
Area / area addition / volume
