Launch TWC-581 User Manual

LAUNCH                                                                  TireChangerTWC-581

6

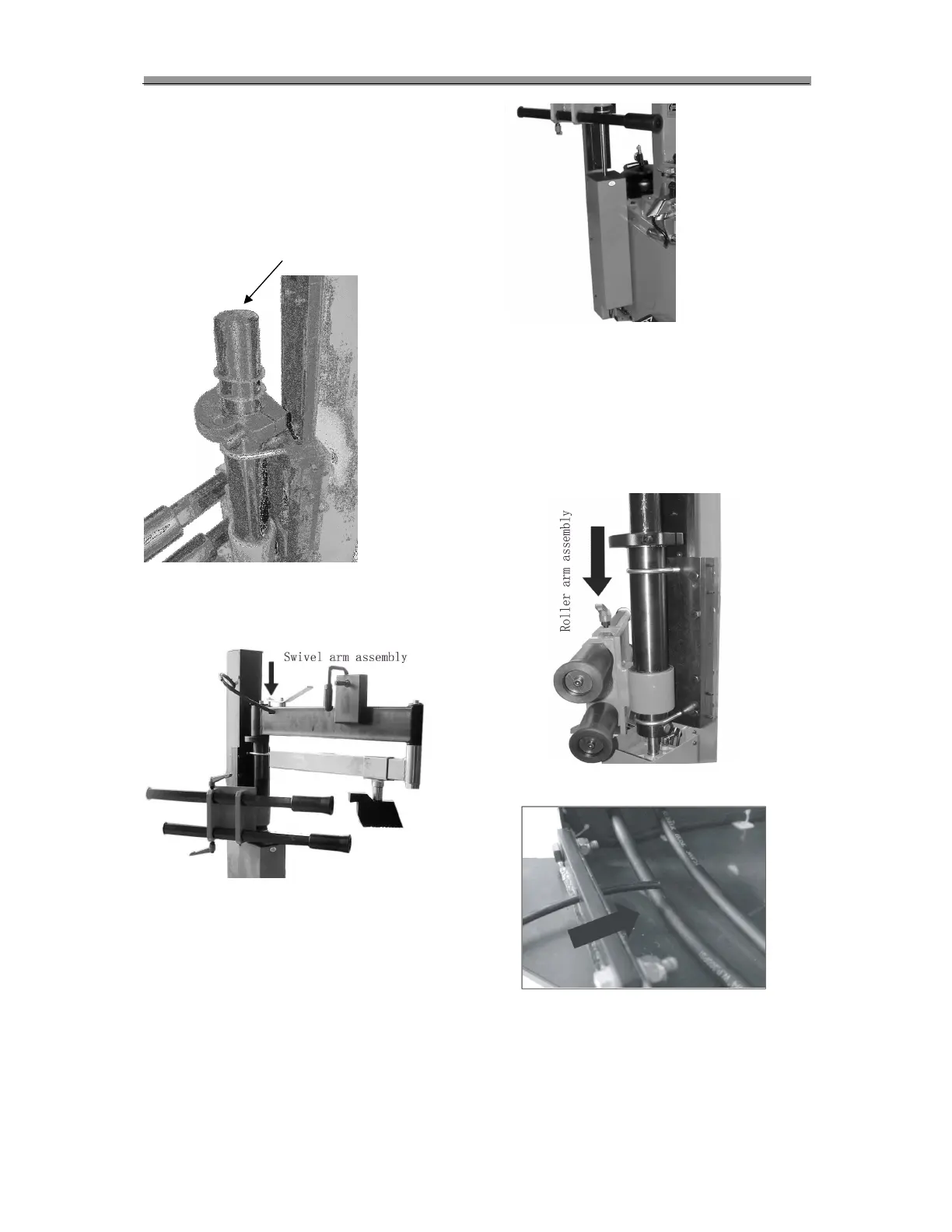

Installation of Supplementary arm
assembly
 Remove the left assist arm assembly from its skid,
remove the bolt and washer located on the top of
the pivot shaft (Fig.04), mount them as shown in
Fig.05.
Fig.04

Fig.05
 Remove the cover on the left side of cabinet, with
a suitable lifting devise position the assist unit
(Fig.05) on the left rear corner of the cabinet
vertically, attach and fasten in place with bolts
and hardware provided.(Fig.06)

Fig.06
 Remove the lock levers, brush a lubricant on the
parts threads, and then assemble them as in
Fig.07.
 Finally feed the air line from the bottom of the
assist arm unit through the small hole on left
lower mounting plate into the cabinet. (Fig.08)
Fig.07
Fig.08
