Installation
549263_D_PUB_DATE_7_JUL_2014.DOC INSTALLATION, MAINTENANCE AND USER' MANUAL 43

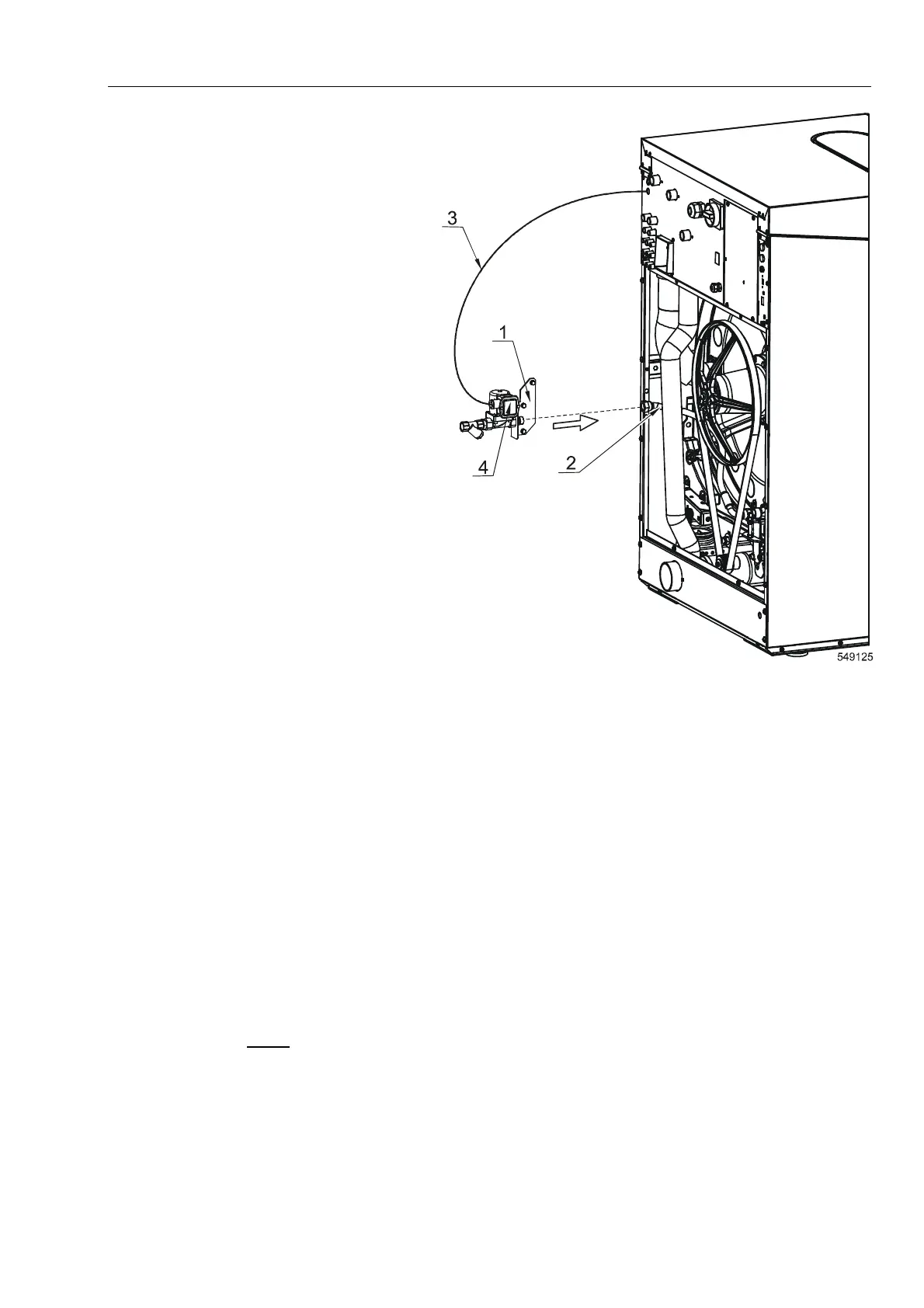

Figure 25
Machines 7-8-11-14 kg / 15-18-25-30 lb
1. Remove the rear cover.
2. Fit the holder pos. 1 with the steam valve
and filter onto the rear part of the machine.
3. Connect the steam hose pos. 2 to steam
valve.
4. Connect the cable pos. 3 to the coil pos. 4
of the steam valve (see the machine wiring
diagram).
5. Fit the rear cover back to its original place.
Liquid soap connection
General: Always use liquid soap pumps with a flow rate that can bring the requested quantity in less than 30sec.
IMPORTANT: Start pumping immediately after the water valves are open. The incoming water dilutes
the liquid soap and brings it into the tub assembly.
CAUTION: The machines are produces in two versions:
Without liquid soap (standard version)
With liquid soap (according to the request)
Secure the location of the wiring and hoses in such a way that they can not be pinched, damaged or rubbed.
Before you start to use liquid soap, check with your liquid soap supplier whether the liquid soap is harmless
and inert to PP and PVC material in order to avoid a problem that manufacturer is not responsible for.
The washer has provisions for connecting external dosing of liquid soaps. On the back side, a plastic hose
connection part is present, figure 26, pos.1, to connect the liquid soap hoses. Depending of the number
of liquid soap pumps that will be used, drill holes (max. 8) of Ø 8 mm / 0.315" in the plastic hose connection
part for each pump. We recommend using the left openings for connecting the pumps first and setting the flow
rate of the pumps to 60 to 100 l / hour. On the plastic hose connection part is also a 3 nipples of Ø 12 mm / ½".
Use this nipple ONLY for entering diluted soap. Drill with Ø 11.5 mm / 0.45". By default, these nipples are
closed. Drill only the ones that will be used. Take care that the drill particles are carefully removed so that
they can not clog up the hoses and openings.
