10

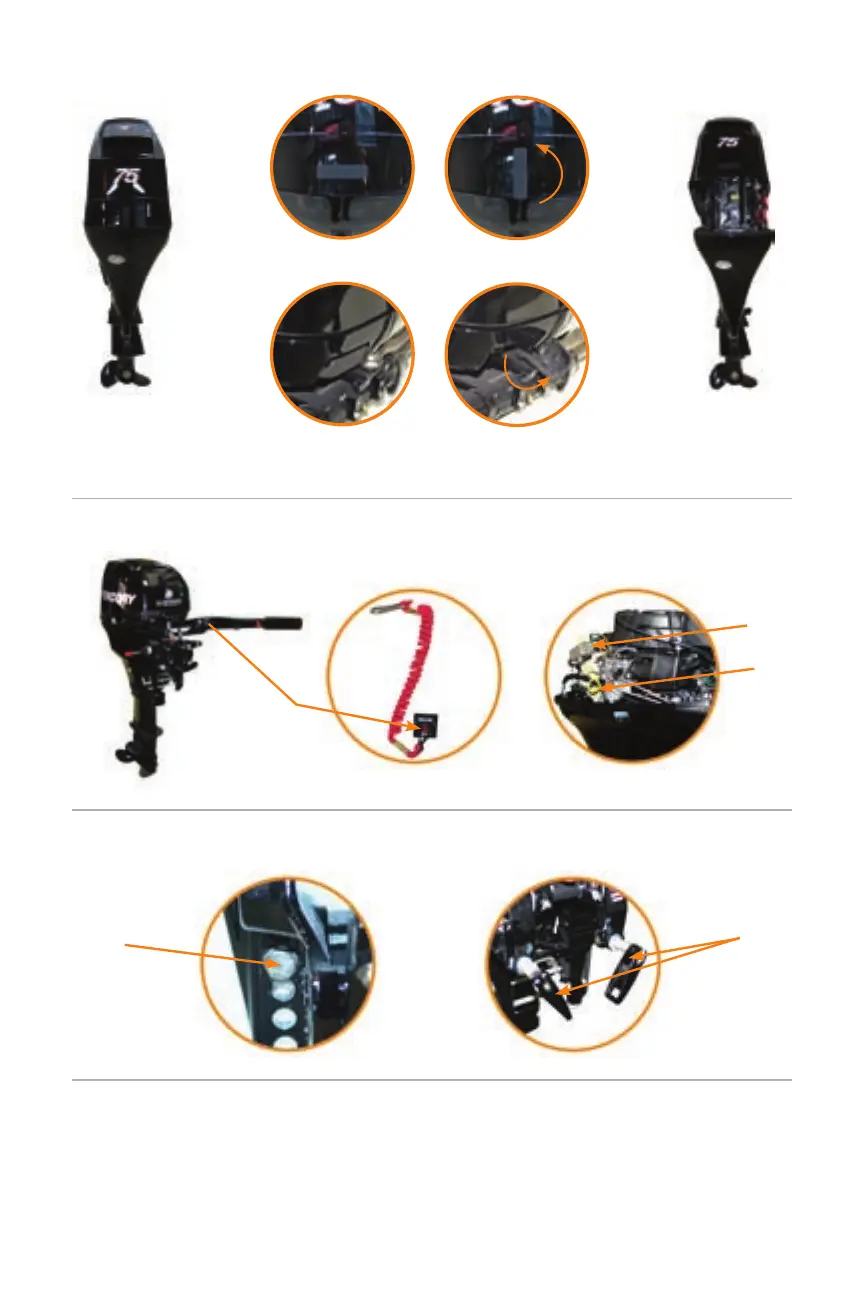

COWL REMOVAL:
Note: Please refer to your Mercury manual for your particular outboard motor.
Engine fuses, safety cord and dip-stick locations (four stroke).
Note: Please refer to your Mercury manual for your particular outboard motor.
Make sure you check and tighten all engine bolts on remote models and thumb screws on tiller motors,
even if a motor lock has been installed.
IMPORTANT NOTE:
It is important to schedule a 20 hour inspection and keep up with routine service as per the maintenance
schedule in your Mercury manual.
Dipstick
Fuses
Handle located
on back
Lever located on
front of motor
Turn counter clockwise
to release
Pull towards boat and
lift cover.
Remote model
engine bolt
Tiler model
thumb screws
1. 2.
3. 4.
To Next Page
