15
BOAT FEATURES
Features discussed in this section is standard or optional on some models and not available on others.
See your dealer for more information.

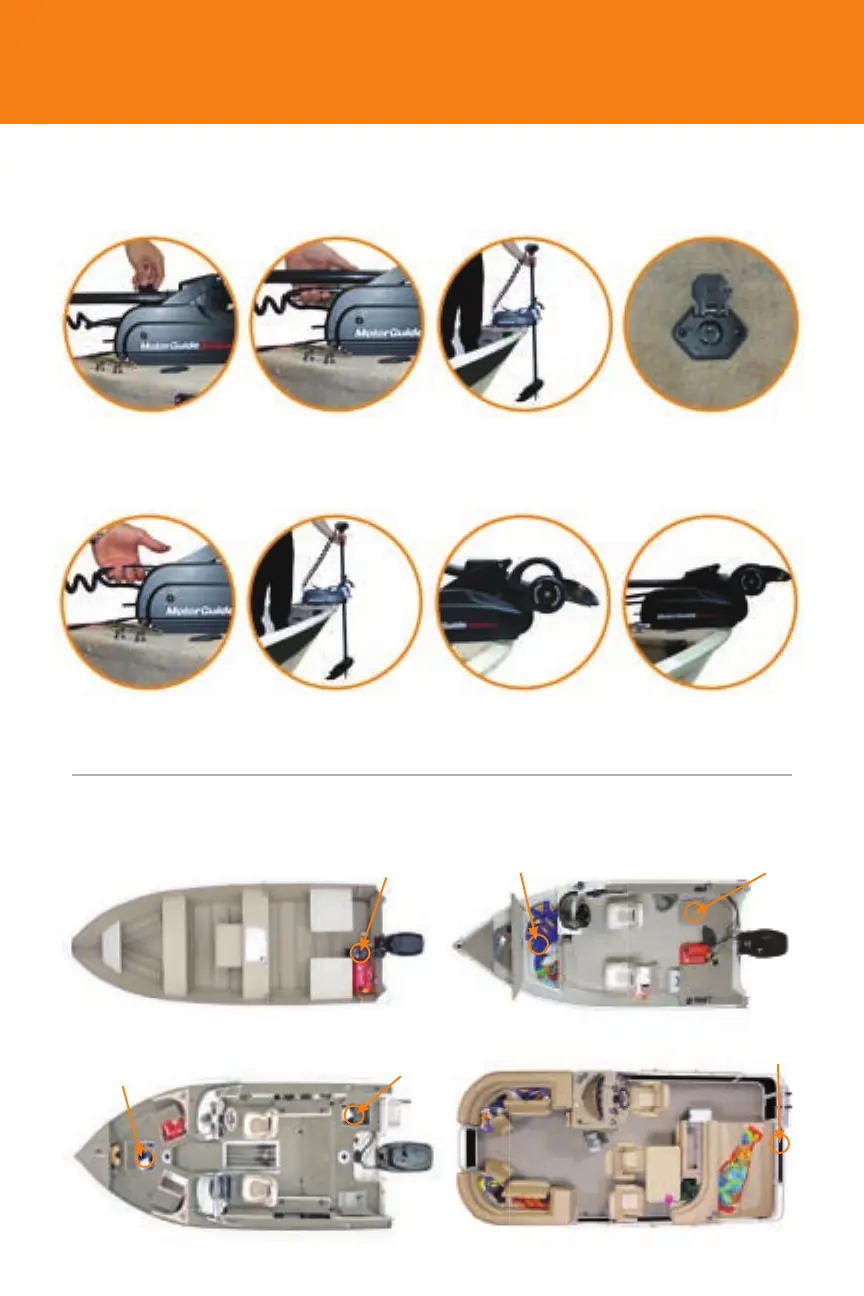

TROLLING MOTOR OPERATION:
BATTERY:
Deep cycle battery (trolling motor installation) is located in the bow of your boat and your cranking battery
is located in the stern.
Deep Cycle
Battery
Deep Cycle
Battery
Cranking
Battery
Cranking
Battery
Cranking
Battery
Cranking
Battery
1.
1.
2. 3. 4.
2. 3. 4.
Pull up the release handle,
hold the shaft and lift
the motor up.
The motor is ready
to connect to the
power source
Loosen depth collar by
turning the knob handle
and slide the depth collar to
desired length
Stowing your trolling motor:
Deploying your trolling motor: Check that the motor is secured to the boat before deploying.
While lifting, rotate the
shaft until the lower
unit is aligned with the
locking cradle.
Pull up on the release
handle and raise the
motor out of the
stow position
Pull up on the release
handle and raise the
motor out of the
water
Hold the motor by the
shaft and raise it into a
vertical position
Push down on the column
to lock the cradle and to
lock the release handle.
Check that it is secure.
To Next Page
