18

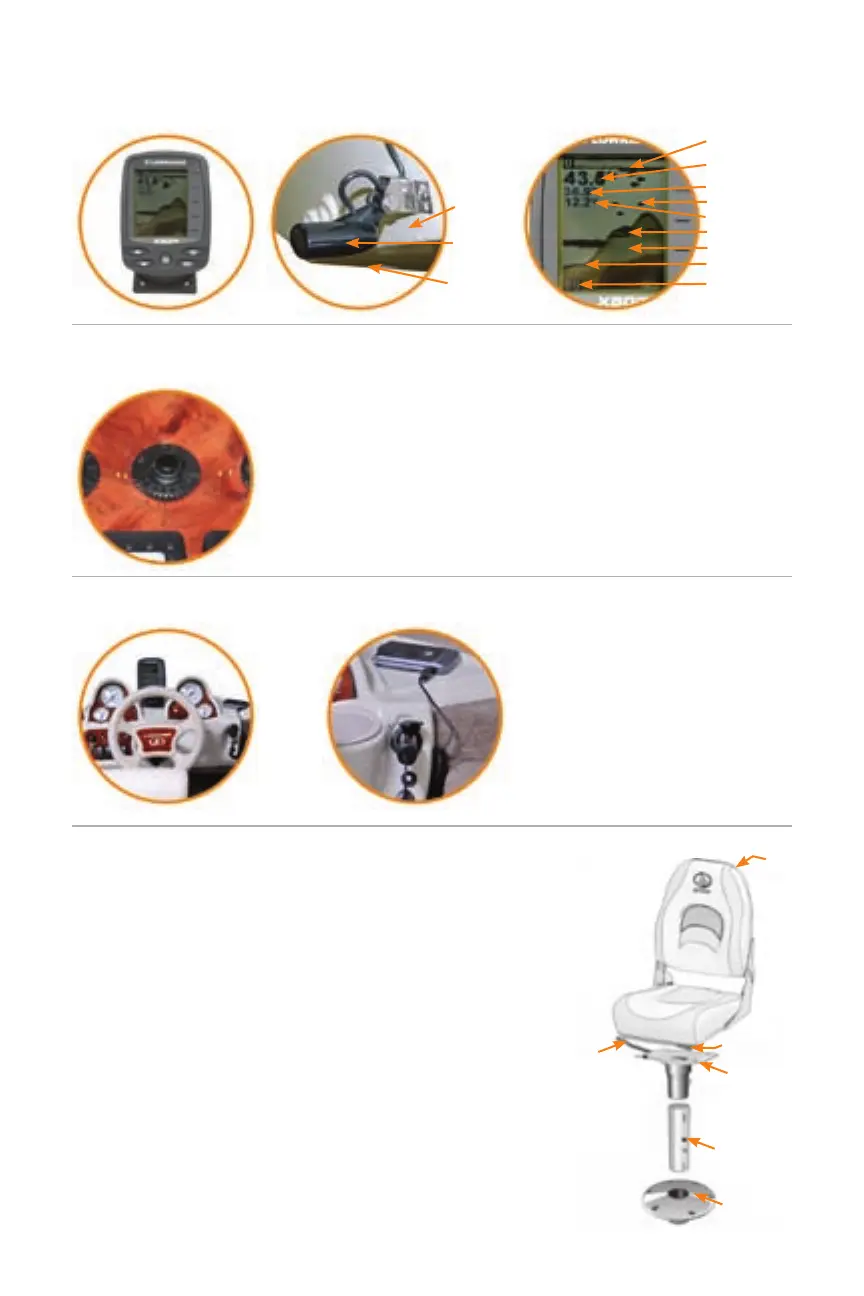

FISH/DEPTH FINDER:
All Lowrance sonars have an automatic mode that nds and displays the bottom, sh, underwater structure, water
temp and more. Read Lowrance manual for complete instructions. (To power on or o - hold button for 5 seconds)
CIRCUIT BREAKERS:
If any issues arise, simply push the EZ reset circuit breaker. If it continues to “pop” notify your local Legend Dealer.
12 VOLT OUTLET:
Be sure to to turn o all 12 volt outlet items before leaving the boat.
Note: Not to be used as a cigaret lighter.
1. To open, simply unbutton the snap on the back of your seat and raise
the back section.
2. To remove the seat from the seat post, lift up the handle located on the
right-hand side underneath the seat base and pull.
3. To remove the seat post from the oor base, press the locking device at
the bottom of the seat post, twist the seat post and pull upward.
4. To turn your seat around, while sitting on it, lift up the handle located
on the right hand side underneath the seat base and move your seat in
either direction.
5. To slide your seat forward or backward, lift up the handle located on
the front underneath your seat base and push or pull.
6. To incline the back of your seat, lift up the swivel located on the
left-hand side of the seat base and lean backward.
(On deluxe captain’s chairs only)
Note: Be sure to lubricate all seat pedestals, seat and oor bases with a light silicone
spray containing teon. Due to the vents located on the bottom of the seats, they
should not be stored upside down as they will ll with rain water.
Snap
Slider handle
Seat base
Seat base
handle
Seat Post
locking device
Floor base
SEAT BASES:
Seats:
Your boat comes equipped with dierent models of pedestal seats. Depending on your
boat model, your seats may not be equipped with all of the following adjustments.
Transducer
centerline
Water Temp
Transom
Digital depth
Hull
bottom
Bottom signal
Surface signal
Fish symbols
Grayline
Depth range
at bottom of
depth scale
Structure
Voltmeter
