110
DMX
3

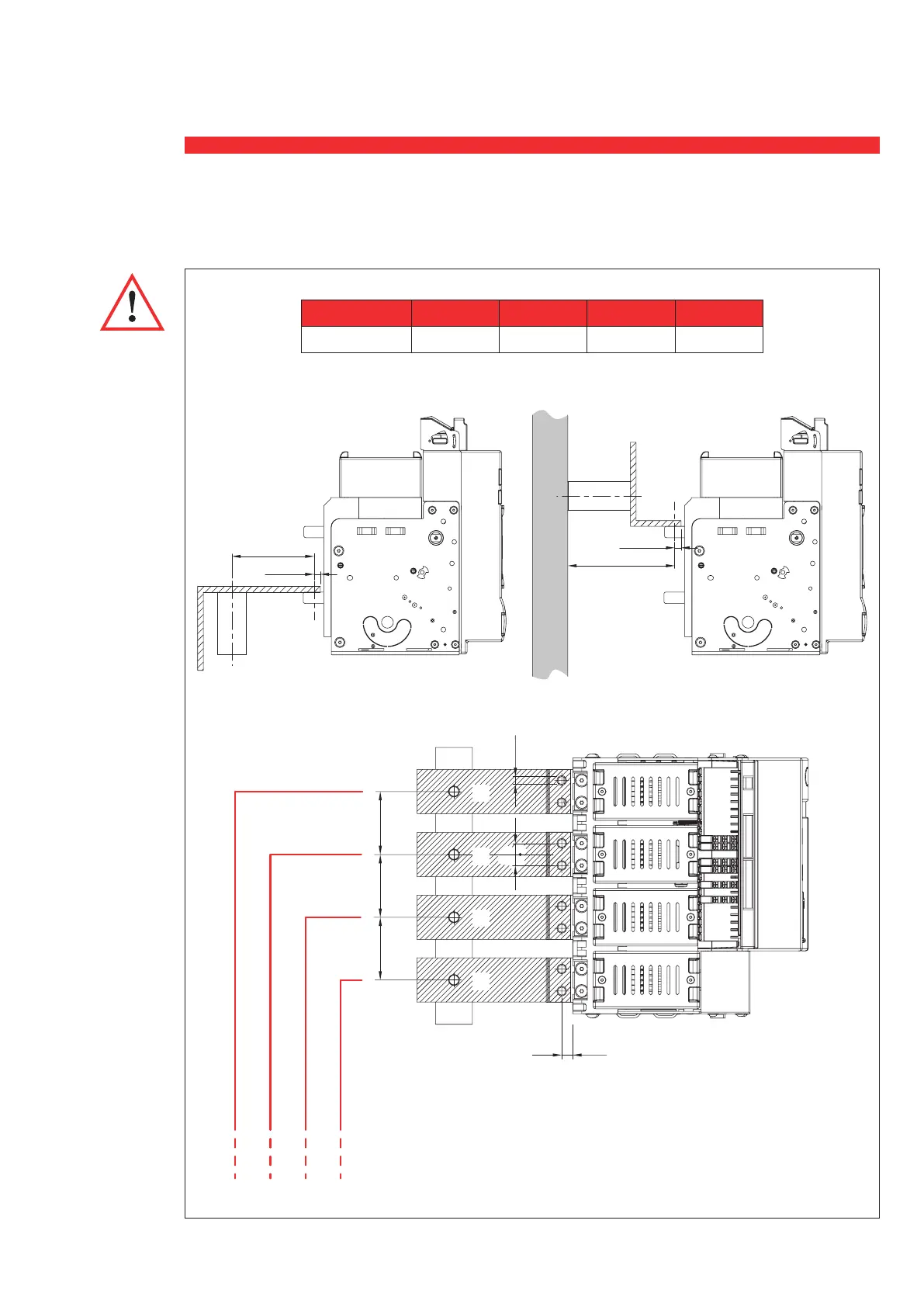

13. Connection for fixed version
858585
ø11
15
30
==
11mm
"X" max (mm)
11mm
"X" max (mm)
L3
L2
L1
N
Termination
support must
be made
of isolating
material and
sized according
to the bars in
order to avoid
performances
during
short circuit
conditions.
DMX
3
2500.
Icc (kA) ≤ 42 ≤ 50 ≤ 65 ≤ 100
“X” max (mm) 350 300 250 150
