120
DMX
3

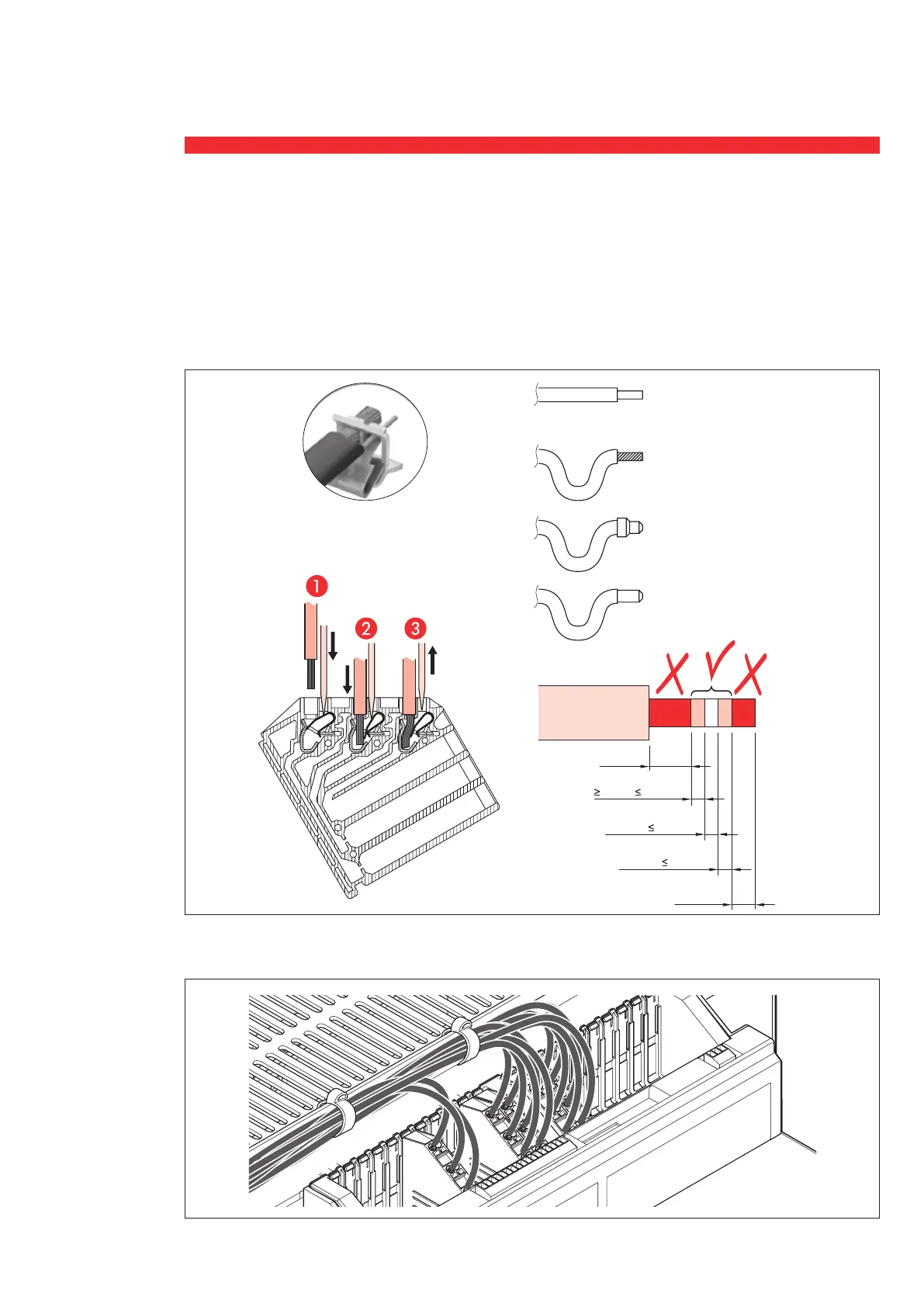

18. New cabling system
New automatic “Cage Clamps”.
Constant press on cable guarantee maximum contact
during time.
This is the solution to the problem of screw with 1/2 turn.
Shape form of spring avoid the problem of incision of
insulation.
1. Put the screw: the clamp open.
2. Put the cable.
3. Extract the screw: clamp automatically lock the cable.
Detail: Electrical contact is guaranteed with max
flexible cable diameter up to 2,5 mm
2
, also with two
cable of different sections.
>14 mm
1÷2,5 mm²
1÷2,5 mm²
1÷1,5 mm²
2,5 mm²
8 mm
10 mm
12 mm
>10 mm
14 mm
>12 mm
< 8 mm
Détail
To have a major order and safety when cabling
operations are done, the draw-out version of the DMX
3
has several buttonholes usefull to collect all the cables
with cable ties as shown.
Detail
