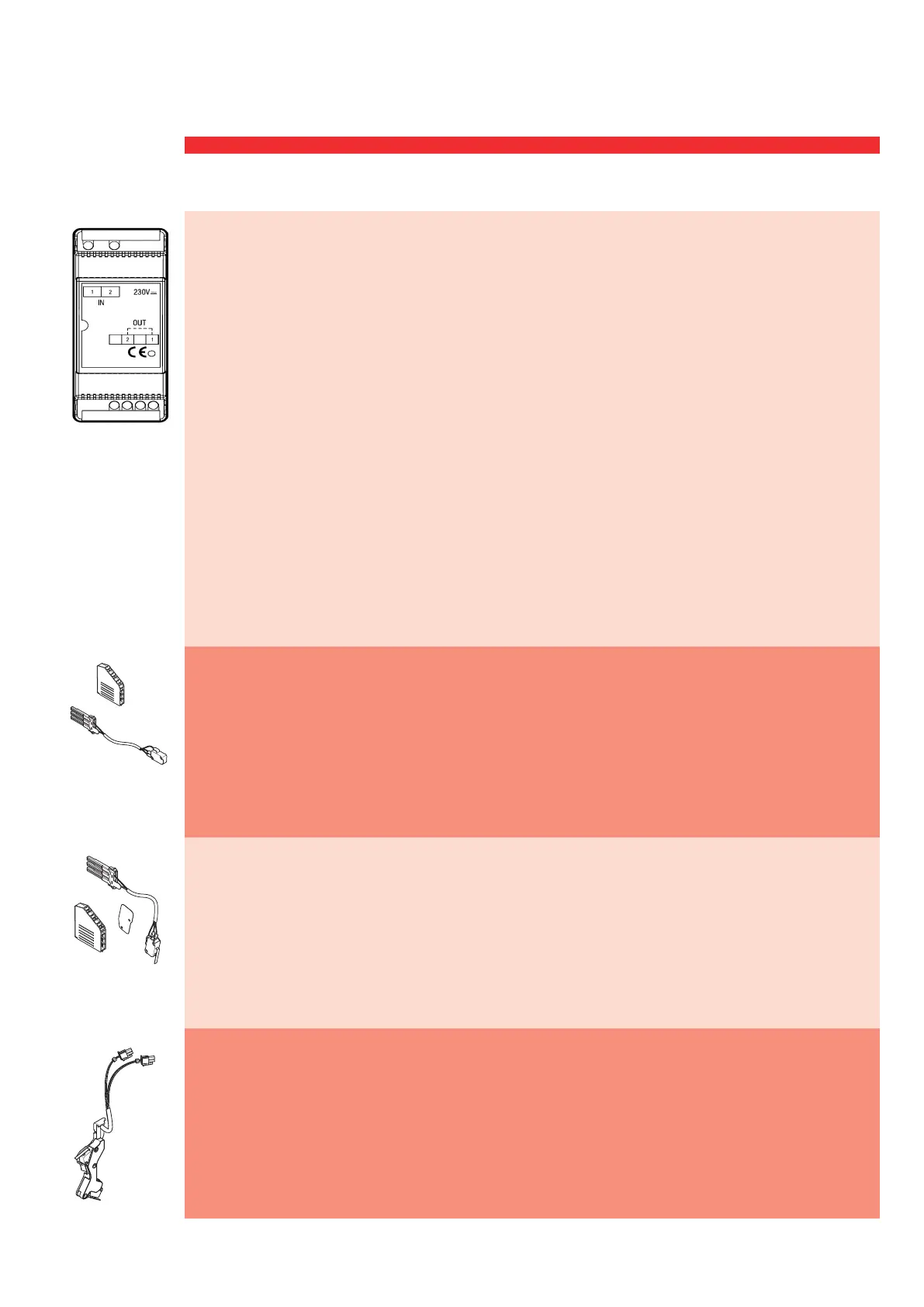

Time delayer for undervoltage release
Technical features
Case: 2 modules
Rated operating voltage Vn (Va.c. - Vd.c.): 110V-230V
Input supply:
110Vdc 85% - 110%
110Vac 85% - 110% 50 - 60 Hz
Pick-up consumption: 16,5 VA -W
Hold consumption: 5 VA-W
230Vdc 85% - 110%
230Vac 85% - 110%, 50 - 60 Hz
Pick-up consumption: 34,5 VA -W
Hold consumption: 10 VA-W
Opening threshold: 0,35 ÷0,7 Un
Closing threshold: 0,85 Un
Time-delay for each module: 1 s at Un (is possible to connect up to 3 modules - 1s of delay for
each one module installed)
Operating temperature: (-10) – (+55) °C
Signal contact for auxiliaries
Technical features
Rated operating voltage Vn (Va.c.): 250V 16A
(Vd.c.): 250V 0,3A
Additional signalling contact
Technical features
Rated operating voltage Vn (Va.c.): 250V 16A
(Vd.c.): 250V 0,3A
Contact ready to close with charged springs
Technical features
Rated operating voltage Vn (Va.c.): 250V 16A
