POSITIONING ROOFCURBS
As levels are adjustable, observe the following
recommendations when installing the equipment.
Above all, ensure that all the adjustable returns are facing
outward (“1” figure 17). They are usually turned inside-out
for transport.
Place the roof mounting frame on the trimmer beam by first
lining up the inlet and the outlet opening. (“2”- figure 18)
After levelling the frame, secure the adjustable returns on
the trimmer.
It is important to centre the unit on the roof frame.

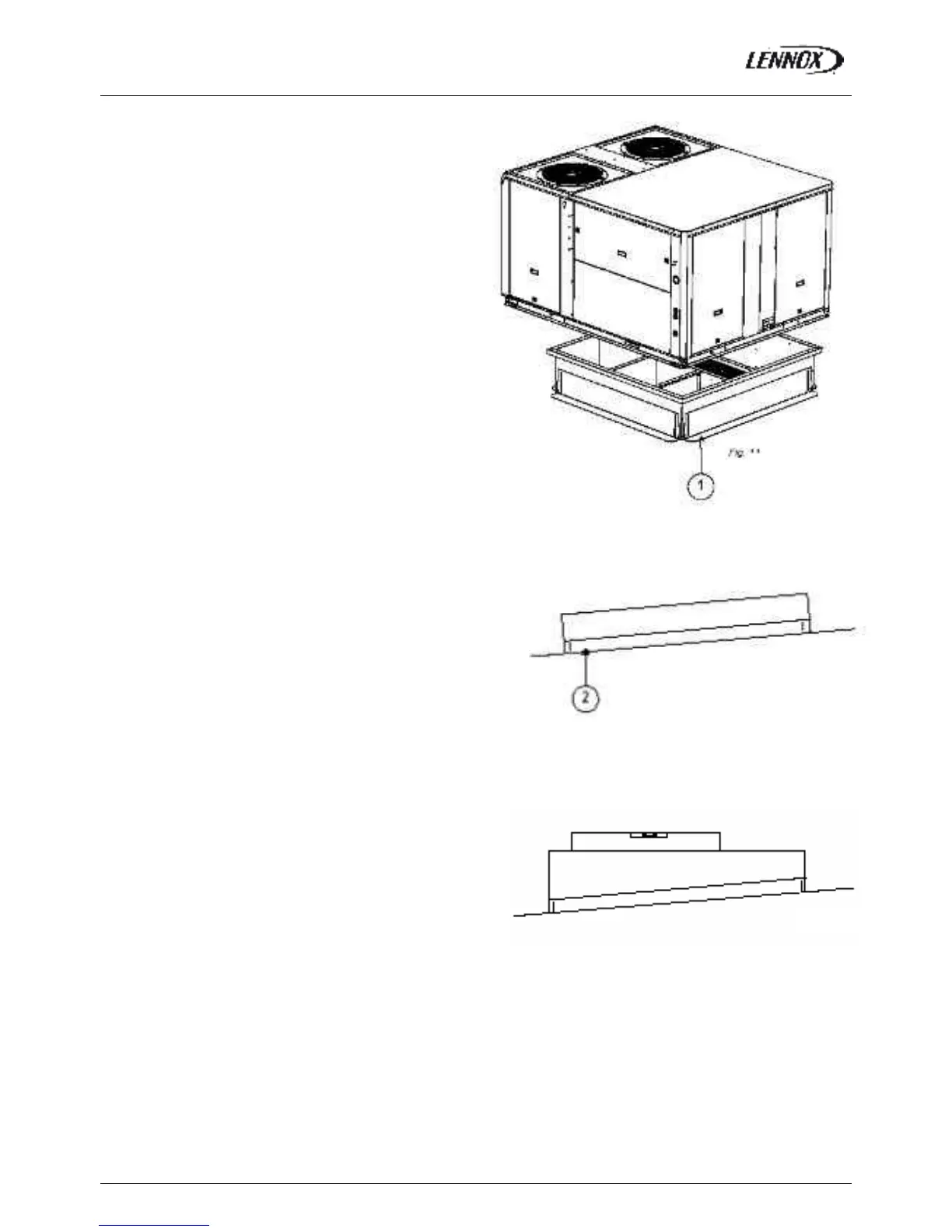

Fig. 17
Fig. 18
Fig. 19
