Page 27
CBX32MV
RED
YEL
BLU
BLK
BRN
COMFORTSENSE
7000 THERMOSTAT
OUTDOOR UNIT
PUR
OUTDOOR
SENSOR
(X2658)
BLK
RED
BLK
PUR
EDA UNIT
FAN
RELAY
NOTES -
/1\
NOT REQUIRED FOR APPLICATIONS WITHOUT LSOM
/2\
NOT REQUIRED WITH SINGLE‐SPEED OUTDOOR FAN
/3\
NOT REQUIRED FOR SINGLE STAGE
T
T
D
DO NOT CUT ON-BOARD LINK R -O.
CUT ON-BOARD LINK R-DS WHEN DEHUMIDIFICATION
TERMINAL IS USED.
CUT ON-BOARD LINK Y1-Y2 FOR TWO-
STAGE A/C
4
4
AIR HANDLER CONTROL COMES FROM FACTORY WITH A METAL
JUMPERS BETWEEN W1 TO W2 AND W2 TO W3. SEE FIGURE 20
FOR HEAT SECTION CONFIGURATION.
.
Y1-Y2
2-STAGE
COMPR
R-O
HEAT
PUMP
R-DS
DEHUM
OR
HARMONY
CUT FOR OPTION
CBX32MV
IMPORTANT — USE CARE WHEN CUTTING LINKS TO
PREVENT DAMAGE TO CONTROL. SEE FIGURE 19,
CBX32MV JUMP AND LINK GUIDE FOR FURTHER
DETAILS.
CONNECTED ON UNIT WITH LSOM.
RESISTOR KIT (CAT # 47W97) IS
REQUIRED WHEN CONNECTING THE
COMFORTSENSE 7000 (CATALOG#
Y0349) WITH THE LSOM 2. RESISTOR
KIT NOT REQUIRED WHEN USING
COMFORTSENSE 7000 CATALOG#
Y2081).

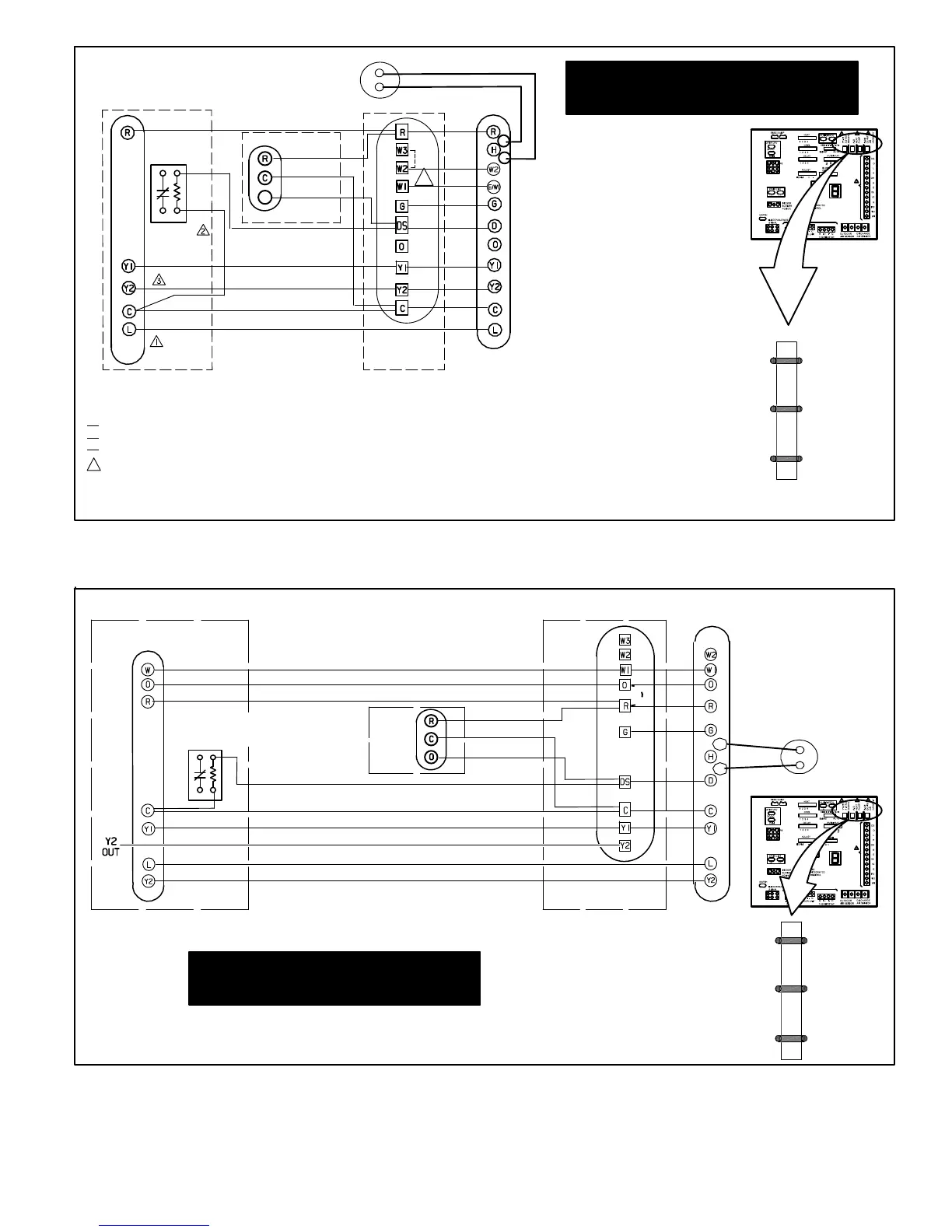

Figure 17. Control (Field Wiring) — Cooling Application (Humiditrol
®
and Second-Stage Outdoor Fan
Relay Wiring) Non-Communicating
YELLOW
BLUE (NOT REQUIRED FOR SINGLE STAGE)
RED
BLACK
PURPLE
PURPLE
BLACK
BLUE
RED
FAN RELAY (NOT REQUIRED
WITH SINGLE−SPEED
OUTDOOR FAN)
OUTDOOR
SENSOR
(X2658)
COMFORTSENSE
7000 THERMOSTAT
CBX32MV
OUTDOOR UNIT
CUT ON-BOARD LINK R -O.
CUT ON-BOARD LINK Y1-Y2 FOR TWO-STAGE A/C ONLY
CUT ON-BOARD LINK R-DS WHEN DEHUMIDIFICATION
TERMINAL IS USED.
T
T
BROWN (NOT USED FOR APPLICATIONS WITHOUT LSOM
Y1-Y2
2-STAGE
COMPR
R-O
HEAT
PUMP
R-DS
DEHUM
OR
HARMONY
CUT FOR OPTION
IMPORTANT — USE CARE WHEN CUTTING LINKS TO
PREVENT DAMAGE TO CONTROL. SEE FIGURE 19,
CBX32MV JUMP AND LINK GUIDE FOR FURTHER
DETAILS.
Figure 18. Control (Field Wiring) — Heat Pump Application (Humiditrol
®
and Second-Stage Outdoor
Fan Relay Wiring) Non-Communicating
