Page 57
CBX32MV

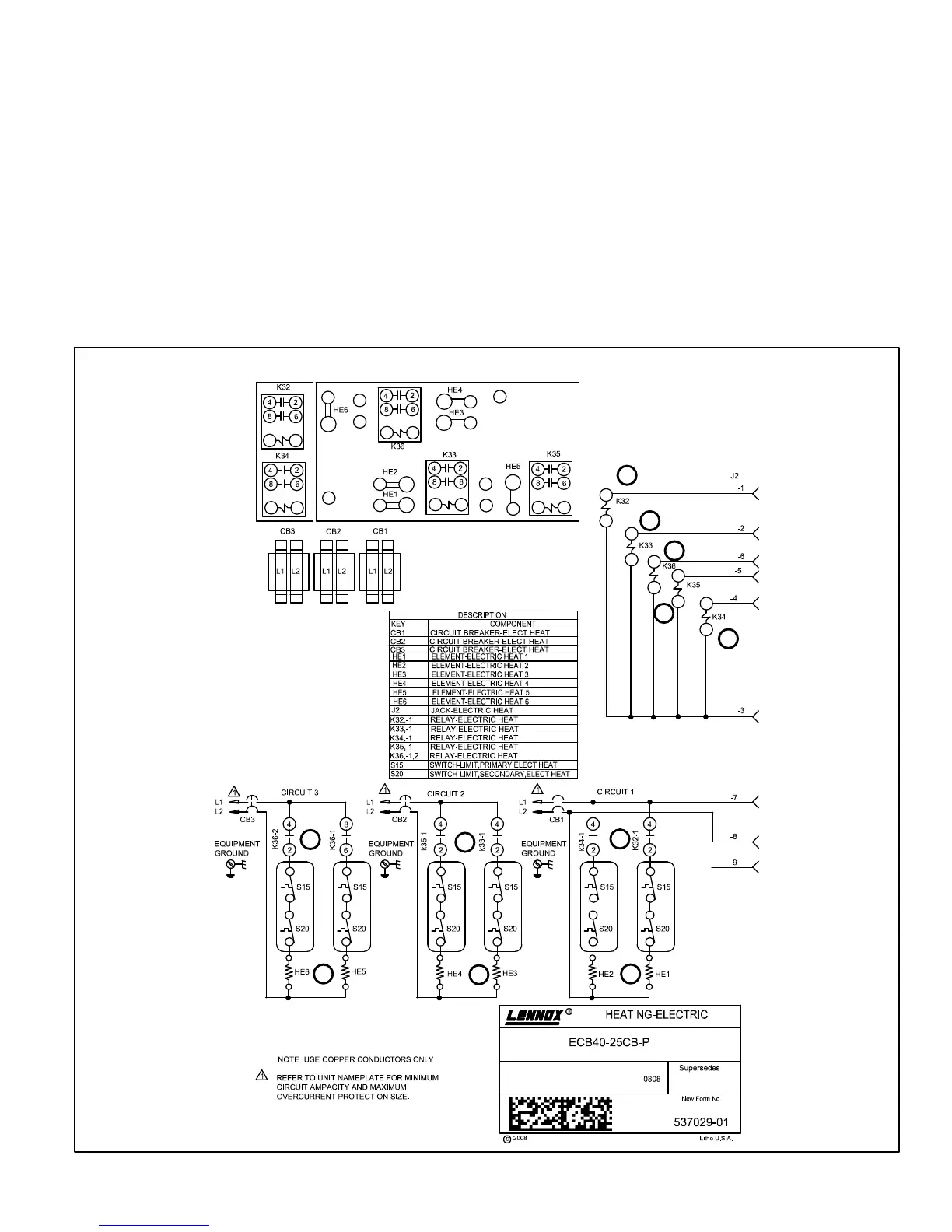

G ECB40‐25CB - 208/230V Single Phase
FIRST-STAGE HEAT
1. W1 of the thermostat provides a W1 demand to the Control. The Control outputs a 22VDC signal to the K32 and K34 relays.
K32-1 and K34-1 closes.
2. Assuming the N.C. primary (S15) and secondary (S20) limit switches are closed, electric heat elements HE1 and HE2 are
energized.
SECOND-STAGE HEAT (remove jumper between W2 and R)
1. When K34 closes, the unit is ready for a second stage heat demand. W2 of the thermostat provides a W2 demand to the
Control. The Control outputs a 22VDC signal to the K33 and K35 relays. When K33-1 and K35-1 closes and assuming
the N.C. primary (S15) and secondary (S20) limit switches are closed, electric heat elements HE3 and HE4 are
energized.
THIRD- STAGE HEAT (remove jumper between W3 and R, if using third stage)
1. When K35 closes, the unit is ready for a third stage heat demand. W3 of the thermostat, if available, provides a W3 demand
to the Control. The Control outputs a 22VDC signal to the K36 relay. When K36-1 and K36-2 closes and assuming the N.C.
primary (S15) and secondary (S20) limit switches are closed, electric heat elements HE5 and HE6 are energized.
1
3
4
1
2
3
3
3
4
4
1
To Next Page
