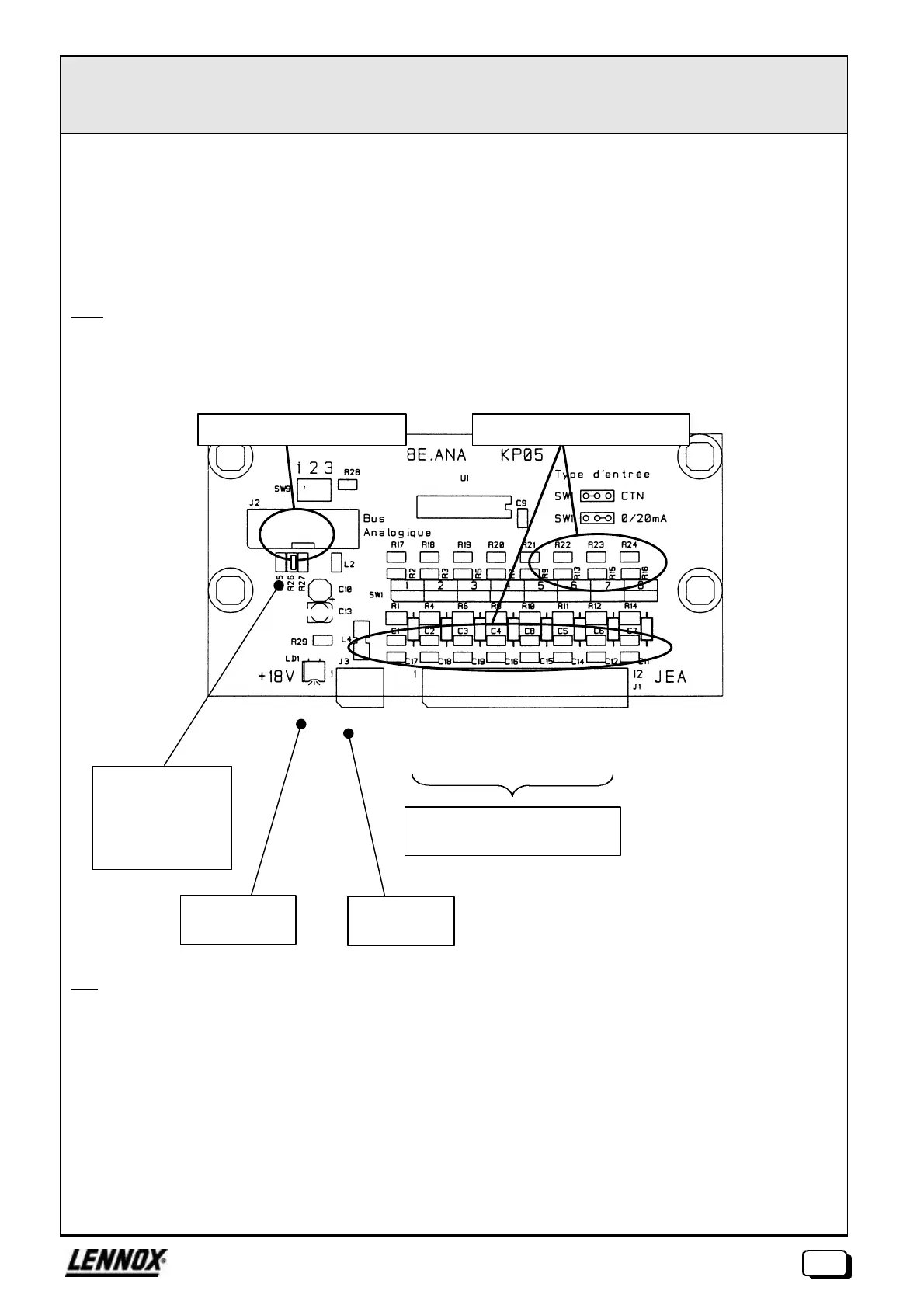

EXTENSION 8 ENTREES ANALOGIQUES ØØ KP05
The KP05 card is used for the acquisition of 8 analogue inputs. These inputs may connect either a CTN
temperature sensor (10KΩ at 25°C), or a conventional 0-20mA detector (via the +18Vdc supply). The type of
element connected is configured using switch SW1.
It is possible to connect up to 3 KP05 extensions to the same CPU card. Every addition of a KP05 means that a
KP01 analogue input becomes unavailable. The complete configuration therefore allows a maximum number of
5 + 3 x 8 = 29 inputs.
Note : Inputs 5 to 8 are not equipped to receive a 0-20mA signal. In fact resistors R10 to R14 (249Ω/0.1%)
are not fitted in the original configuration.
Key :
J1 (JEA): 12 point removable pin connector , pitch 3.81 for analogue inputs
J2: 14 point HE10 connector for analogue bus
J3: 2 point removable pin connector, pitch 3.81 for the two outputs +18Vcontinuous
LD1: LED presence of power
SW1 to SW8: Jumpers for the configuration of 0-20mA inputs or CTN
The position of jumpers, depending on the type of input, is marked on the card.
SW9: Switches for configuration of the card address.
Configuration of input typeAddressing configuration
8 analogue inputs
(-) common to all inputs
+18Vdc
supply
Led 5V power
on
Ribbon cable
connector
connecting
extension cards to
main card KP01
