IOM / ROOF-TOP FLEXY™ Series - Page 33
USING THE KP02 MAINTENANCE CONTROL DISPLAUSING THE KP02 MAINTENANCE CONTROL DISPLA
USING THE KP02 MAINTENANCE CONTROL DISPLAUSING THE KP02 MAINTENANCE CONTROL DISPLA
USING THE KP02 MAINTENANCE CONTROL DISPLA
YY
YY
Y

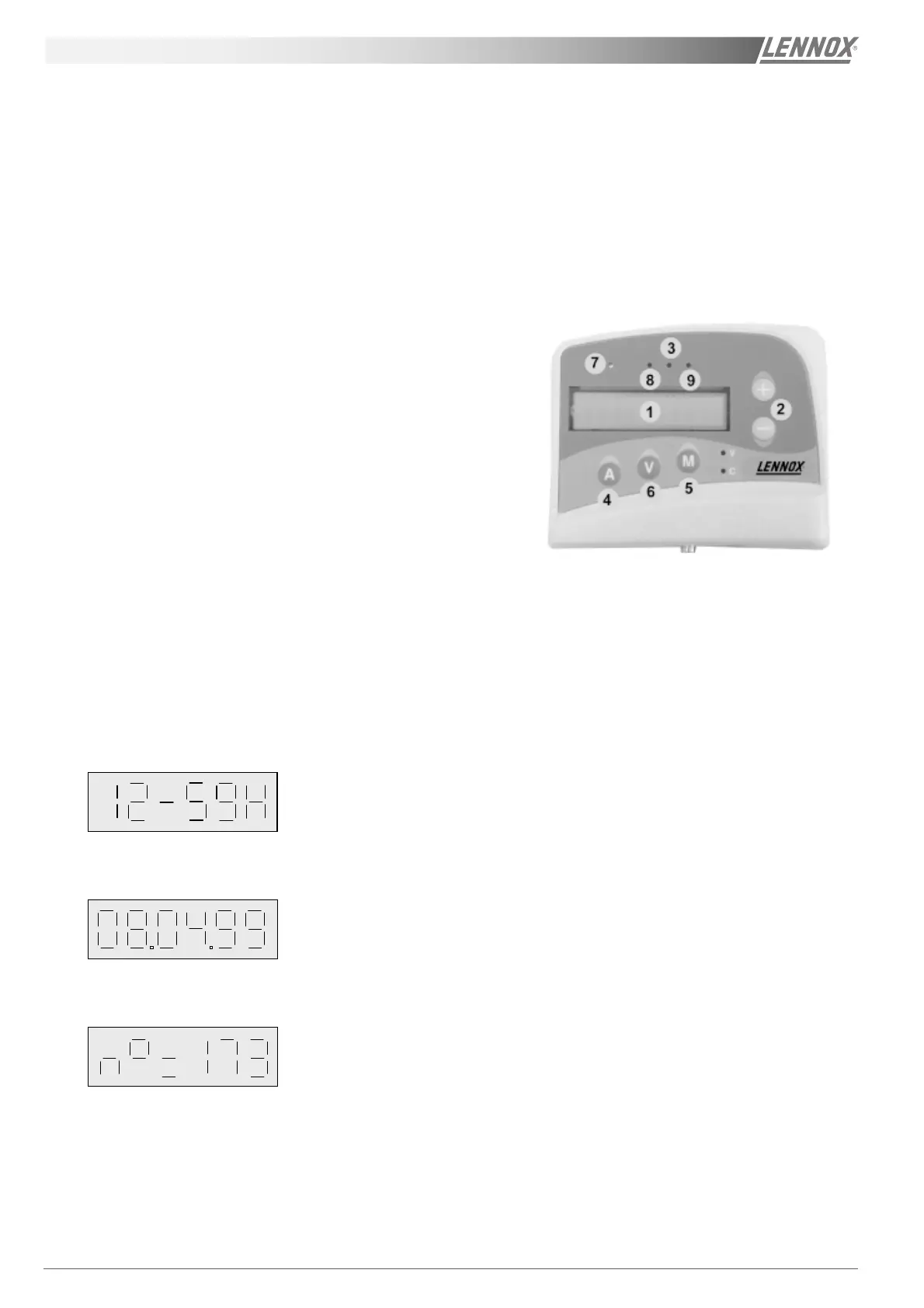

CALLOUT:
1 LIQUID CRYSTAL DISPLAY
2 RAISE/LOWER KEYS
3 "FILTER" LED (flashing red)
4 "ADDRESS" KEY
5 "MODE" KEY
6 "VALUE" KEY
- UNIT RUNNING" LED
8 "MODE" LED
9 "GENERAL ALARM" LED.
1 - DISPLAY FORMATS
Hour
Default display. If the display unit has been inactive for 5 minutes, this screen will automatically be displayed.
<--> 12 hours and 59 minutes
Date
<--> 8 April 1999
Variable or setpoint address
Figure 40
This display unit allows you to read and modify all the
values of the variables or setpoints of the rooftop to
which it is connected.
NOTE: If your ROOFTOP already has a KP17 Comfort
display connected (see previous section) simply
disconnect it and connect this panel to the same
location, once completed re-connect the KP17. It is
not necessary to switch off the power whilst the KP02/
KP17 is being charged.
The dialogue with the controller is initiated by the
Climatic. If, after 3 attempts, no communication is
established, a message will be displayed signalling the
problem. The unit will then try to re-connect at regular
intervals.
