Page 72
XI-Wiring Diagrams and Sequence of Operation

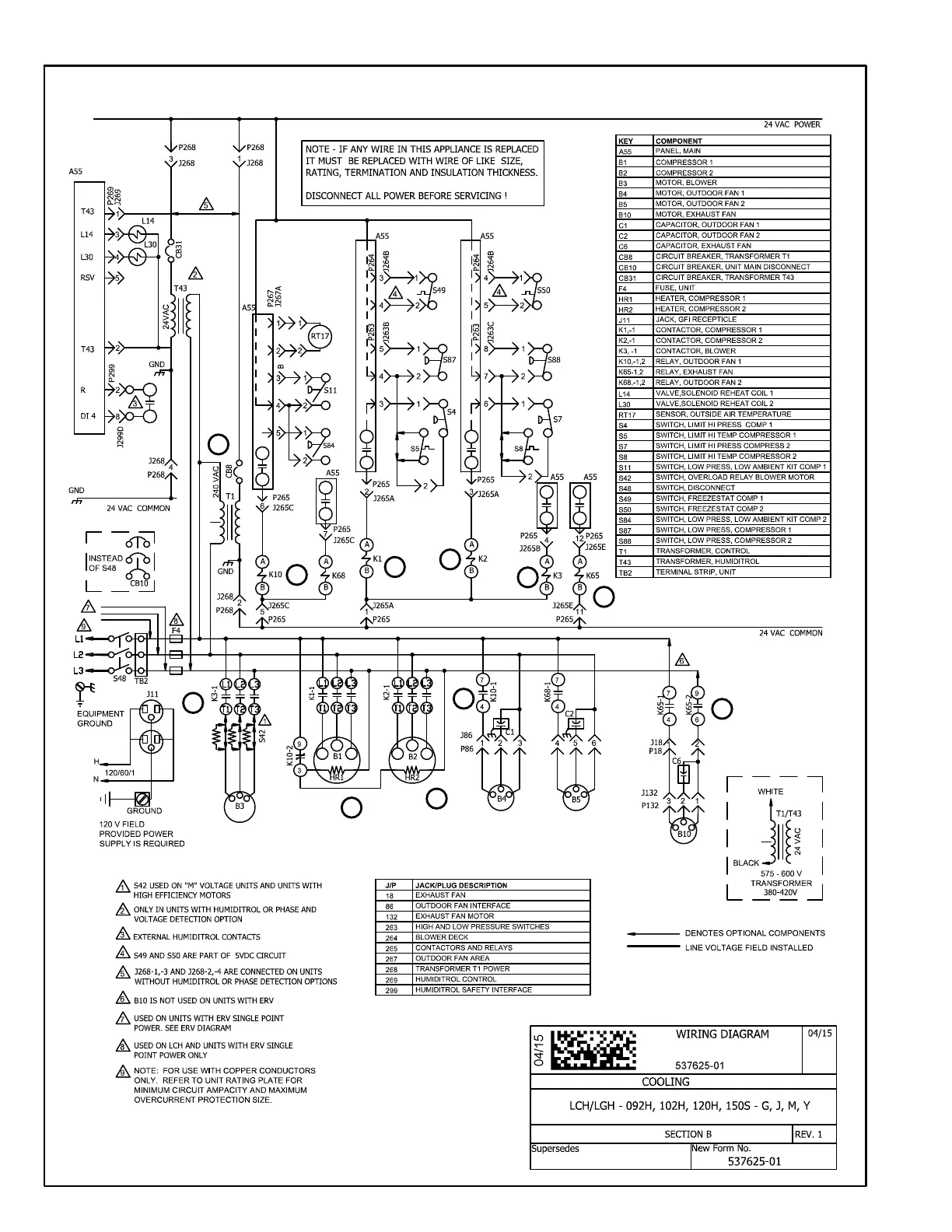

LGH092/150S & H - CONSTANT SUPPLY AIR, BELT DRIVE BLOWER
