6 7

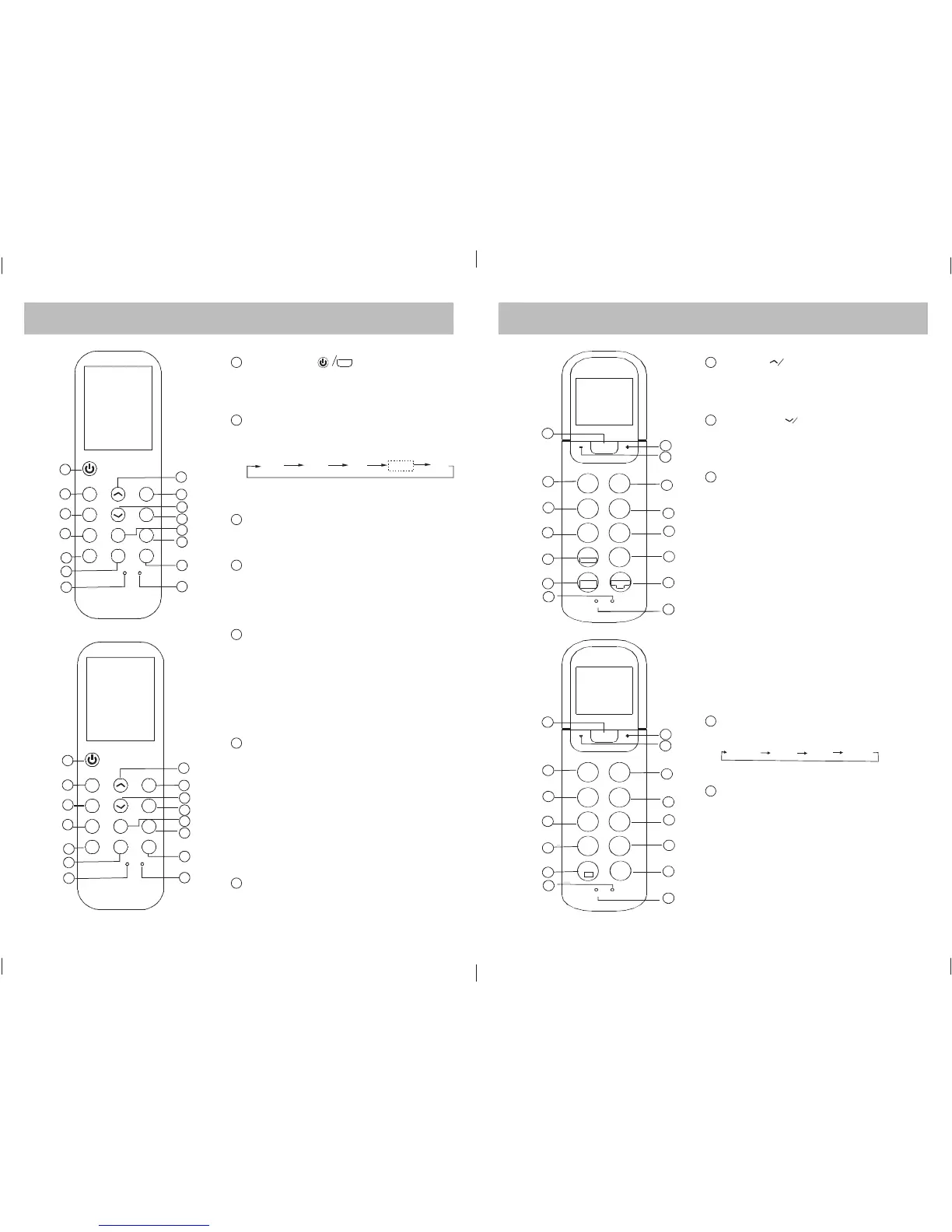

FUNCTION BUTTONS FUNCTION BUTTONS
UP Button (
+
)
Press this button to increase setting temperature or to
increase the Hour setting during Timer setting.
DOWN Button (
-
)
Press this button to decrease setting temperature or to
decrease the Hour setting during Timer setting.
SHORTCUT (MEMORY SHORTCUT) Button
• Used to restore the current settings or restore previous
settings.
• On the fi rst time connecting to power, if the SHORTCUT
button is pressed, the unit will operate on AUTO mode,
24°C, and fan speed will be set to Auto.
• Pressing this button whilst the remote controller is on,
the system will automatically revert back to the previous
settings including operating mode, setting temperature,
fan speed level and sleep feature (if activated).
• Pressing this button whilst the remote controller is off,
the system will only resume the previous settings and
will not transmit the signals to the unit. The sleep feature
is disabled.
• If pressing for more than 2 seconds, the system will
automatically restore the current operation settings
including operating mode, setting temperature, fan speed
level and sleep feature (if activated).
FAN SPEED Button
Used to select the fan speed in four steps:
AUTO LOW MED HIGH
TIMER ON Button
Pressing this button will initiate the auto-on time sequence.
Each press will increase the auto-timed setting in 30
minutes increments.
When the setting time displays 10H, each press will increase
the auto-timed setting in 60 minute increments. To cancel
the auto-timed program, simply adjust the auto-on time to
0:0.
ON/OFF Button (
ON/OF F
)
Operation starts when this button is pressed and stops when
this button is pressed again.
MODE Button
Each time the button is pressed, the operation mode is
selected in the following sequence:
AUTO COOL DRY HEAT FAN
NOTE: Heat mode is for Cooling & Heating models only.
SWING Button
Used to stop or start horizontal louvre auto swing feature.
DIRECT Button
Used to change the louvre movement and set the desired up/
down air fl ow direction. The louvre changes 6º in angle for
each button press.
SLEEP/FRESH Button
Active/Disable SLEEP function. If pressing for more than 2
seconds, the FRESH function will be activated. Pressing for
more than 2 seconds again will disable it.
NOTE: While the unit is running under SLEEP mode, it would
be cancelled if the MODE, FAN SPEED or ON/OFF buttons
are pressed.
TURBO/SELF-CLEAN (or FP) Button:
Active/Disable TURBO function. If pressing for more than
2 seconds, the SELF-CLEAN function will be activated.
Pressing for more than 2 seconds again to disable
(depending on model). During the heating operation (only
when the setting mode is HEAT), press this button and the
unit will operate at a setting temperature of 8°C.The display
window of indoor unit will display FP. Pressing ON/OFF,
SLEEP, FP, MODE, FAN SPEED, UP, DOWN and SHORTCUT
while operating will cancel the FP function.
RESET Button:
When you press the recessed RESET button, all current
settings are cancelled and the control will return to the initial
settings.
1
2
4
5
3
8
10
9
6
7
11
12
13
14
15
MODE
SWI N G T EMP
SHOR TCUT
FAN
SP EED
TIMER
OFF
RE SET LO CK
LED
FOLLOWM E
TIMER
ON
TURBO
SELF C LEAN
DIRECT
SLEE P
FRESH
RG35A(2)
1
2
4
5
3
8
10
9
6
7
11
12
13
14
15
MODE
SWING
TEMP
SHORT CUT
FA N
SPE ED
TIMER
OFF
RESET LOCK
LED
FOLLOWME
TIM ER
ON
TURBO
FP
DIRECT
S LEE P
RG 35 A 1
1
2
4
5
3
9
10
8
6
7
11
12
13
14
15
TU RB O
SELF
CLEAN
SLE EP
FR E SH
SHORT
CUT
TIMER
ON
TIMER
OFF
LOCK
RESET
LED
FOLL OW
ME
FA N
SPEED
DIR EC T
SW I NG
MO DE
TEMP
RG36A(1)
1
2
4
5
3
9
10
8
6
7
11
12
13
14
15
TU RBO
FP
SLE EP
SHORT
CUT
TIMER
ON
TIMER
OFF
LOCK
RESET
LED
FA N
SPEED
DIR EC T
SW I NG
MO DE
TEMP
RG36B1
ON/OFF
ON/OFF
2 9
10
11
12
3
4
5
6
7
1 8
